DESCRIPTION |
Product description：

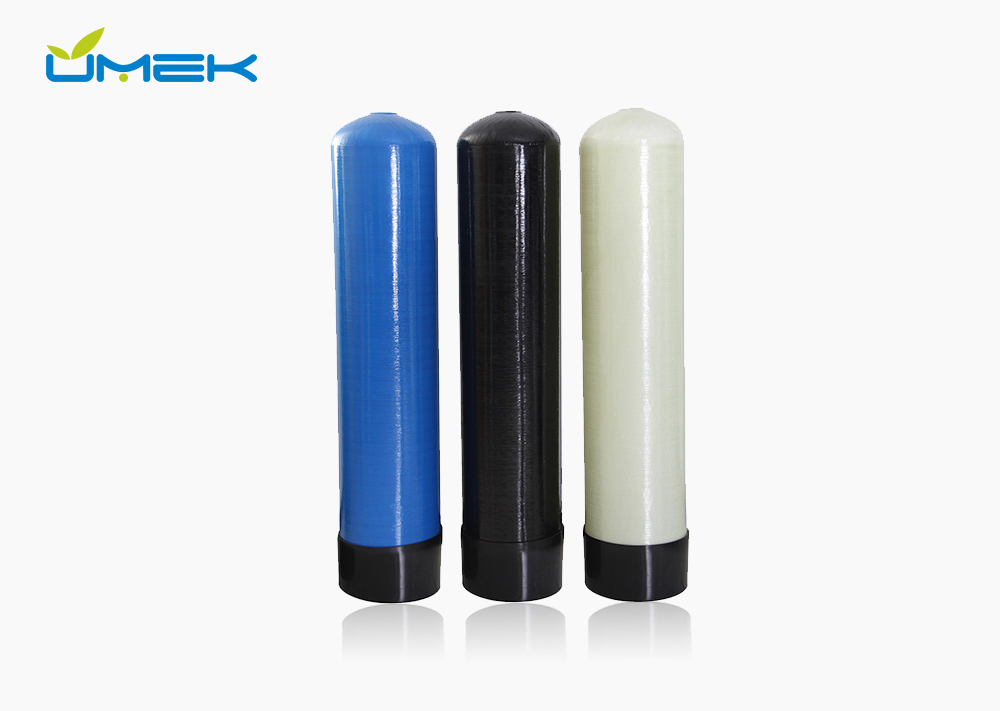

1054 FRP water tanks are used as carbon filters for pretreatment of RO water treatment plant systems to remove colour and odour from raw water. PE liner with FRP fibre wrap, widely used in residential or commercial softening and filtration systems. Completely rust-free and corrosion-free.
Features：
Corrosion & Rustproof: 100% non-metallic, chemical-resistant construction.
High Strength, Lightweight: One-third the weight of steel tanks with superior durability.
Seamless Design: One-piece molded HDPE liner eliminates weak joints.
Leak-Free Inlets: 30% glass-filled Noryl threads/flanges for enhanced pressure tolerance.
Fatigue Resistance: Tested for 250,000 pressure cycles (10–150 psi).
Burst Safety: Withstands 4× operating pressure (42 bar).
Easy Installation: Lightweight design simplifies transport and setup.
Customizable Openings: Top or top/bottom configurations for 6”–36” diameters.
Working parameters：
Working Pressure: 150 psi (10.5 bar)
Burst Pressure: 42 bar (4× operating pressure)
Working Temperature: 1°C to 49°C (34°F to 121°F)
Min. Ambient Temp: -27°C (-17°F)
Max. Vacuum: 127 mm Hg
Fatigue Cycles: 250,000 cycles (10–150 psi test)
Liner Thickness: 5.0–12 mm (varies by diameter)
Application Areas
Residential water softeners and filtration systems.
Light commercial/industrial water conditioning.
Pressure boosting and storage applications.
Chemical-resistant storage (non-reactive fluids).
HVAC and hydraulic systems requiring corrosion-proof tanks.
Structure & Materials
Inner Liner: Seamless, rotation-molded/blown HDPE (5.0–12 mm thickness).
Outer Shell: High-performance resin with 3D fiberglass filament winding.
Openings:
2.5" / 4" reinforced plastic threads (30% glass-filled Noryl).
6" alloy flange options.
Top-only (6”–36” tanks) or top/bottom (14”–36” tanks).
Base: FRP or reinforced polypropylene (PP).
ADVANTAGE |
1. Longevity:
Engineered for 15+ years of reliable service.
2. Compliance:
Meets PED, NSF, and ISO 9001 certifications.
3. Low Maintenance:
Rustproof materials reduce upkeep costs.
4. Versatility:
Customizable openings and flange adaptors.
5. Safety:
Rigorously tested for burst pressure and fatigue resistance.
6. Aesthetic Flexibility:
Multiple color options to match installations.

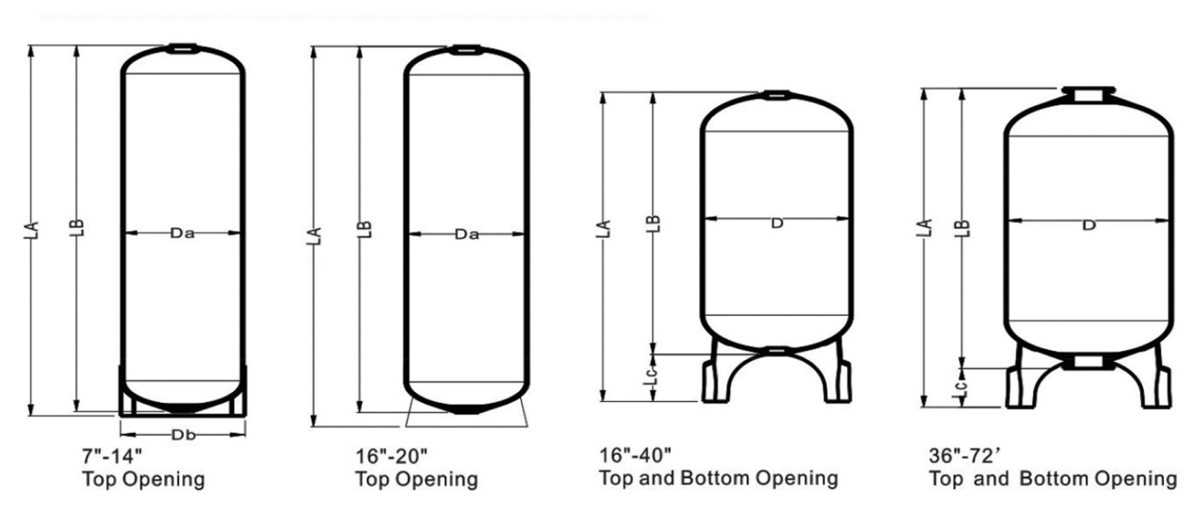

MODEL |
Model | Vessel Size | Vol | Opening | Dimension/mm | Base | |||||
| Inch | mm | L | Top | Bot. | LA | LB | LC | D | ||
0713/2.5T | 7×13 | 181×335 | 6.3 | 2.5"NPSM | / | 335 | 330 | / | 181 | PP |
| 0717/2.5T | 7×17 | 181×440 | 8.5 | 2.5"NPSM | / | 440 | 435 | / | 181 | PP |
0735/2.5T | 7×35 | 181×895 | 19.1 | 2.5"NPSM | / | 895 | 890 | / | 181 | PP |
| 0744/2.5T | 7×44 | 181×1125 | 24.3 | 2.5"NPSM | / | 1125 | 1120 | / | 181 | PP |
| 0813/2.5T | 8×13 | 205×335 | 7.4 | 2.5"NPSM | / | 335 | 330 | / | 205 | PP |
| 0817/2.5T | 8×17 | 205×440 | 10.5 | 2.5"NPSM | / | 440 | 433 | / | 205 | PP |
| 0835/2.5T | 8×35 | 205×895 | 23.6 | 2.5"NPSM | / | 895 | 888 | / | 205 | PP |
| 0844/2.5T | 8×44 | 205×1125 | 31.3 | 2.5"NPSM | / | 1125 | 1118 | / | 205 | PP |
| 0917/2.5T | 9×17 | 232×440 | 13.2 | 2.5"NPSM | / | 440 | 435 | / | 232 | PP |
| 0935/2.5T | 9×35 | 232×898 | 31.6 | 2.5"NPSM | / | 898 | 890 | / | 232 | PP |
| 0942/2.5T | 9×42 | 232×1074 | 38.5 | 2.5"NPSM | / | 1074 | 1067 | / | 232 | PP |
| 0948/2.5T | 9×48 | 232×1228 | 44.6 | 2.5"NPSM | / | 1228 | 1221 | / | 232 | PP |
| 1017/2.5T | 10×17 | 257×450 | 16.5 | 2.5"NPSM | / | 450 | 430 | / | 257 | PP |
| 1035/2.5T | 10×35 | 257×910 | 38.3 | 2.5"NPSM | / | 910 | 890 | / | 257 | PP |
| 1044/2.5T | 10×44 | 257×1130 | 49.5 | 2.5"NPSM | / | 1130 | 1114 | / | 257 | PP |
| 1054/2.5T | 10×54 | 257×1388 | 61.9 | 2.5"NPSM | / | 1388 | 1370 | / | 257 | PP |
| 1248/2.5T | 12×48 | 307×1220 | 77.3 | 2.5"NPSM | / | 1220 | 1214 | / | 307 | PP |
| 1252/2.5T | 12×52 | 307×1335 | 84.8 | 2.5"NPSM | / | 1335 | 1328 | / | 307 | PP |
| 1265/2.5T | 12×65 | 307×1650 | 106.3 | 2.5"NPSM | / | 1650 | 1640 | / | 307 | PP |
| 1344/2.5T | 13×44 | 334×1135 | 82.9 | 2.5"NPSM | / | 1135 | 1127 | / | 334 | PP |
| 1354/2.5T | 13×54 | 334×1400 | 103.6 | 2.5"NPSM | / | 1400 | 1392 | / | 334 | PP |
| 1465/2.5T | 14×65 | 360×1662 | 145.6 | 2.5"NPSM | / | 1662 | 1654 | / | 360 | PP |
| 1465/4T | 14×65 | 360×1662 | 145.6 | 4"-8UN | / | 1662 | 1654 | / | 360 | PP |
| 1665/2.5T | 16×65 | 410×1670 | 187.7 | 2.5"NPSM | / | 1670 | 1662 | / | 410 | PP |
| 1665/4T | 16×65 | 410×1670 | 187.7 | 4"-8UN | / | 1670 | 1662 | / | 410 | PP |
| 1665/4T4B | 16×65 | 410×1830 | 187.7 | 4"-8UN | 4"-8UN | 1830 | 1650 | 180 | 410 | FRP Tripod |
| 1865/4T | 18×65 | 465×1675 | 249 | 4"-8UN | / | 1670 | 1660 | / | 465 | FRP Round |
| 1865/4T4B | 18×65 | 465×1825 | 249 | 4"-8UN | 4"-8UN | 1830 | 1650 | 180 | 465 | FRP Tripod |
COLOR OPTIONS |
Standard Colors: Natural, Blue, Black, Gray, Yellow.
Custom Colors: Available upon request for specialized projects.
