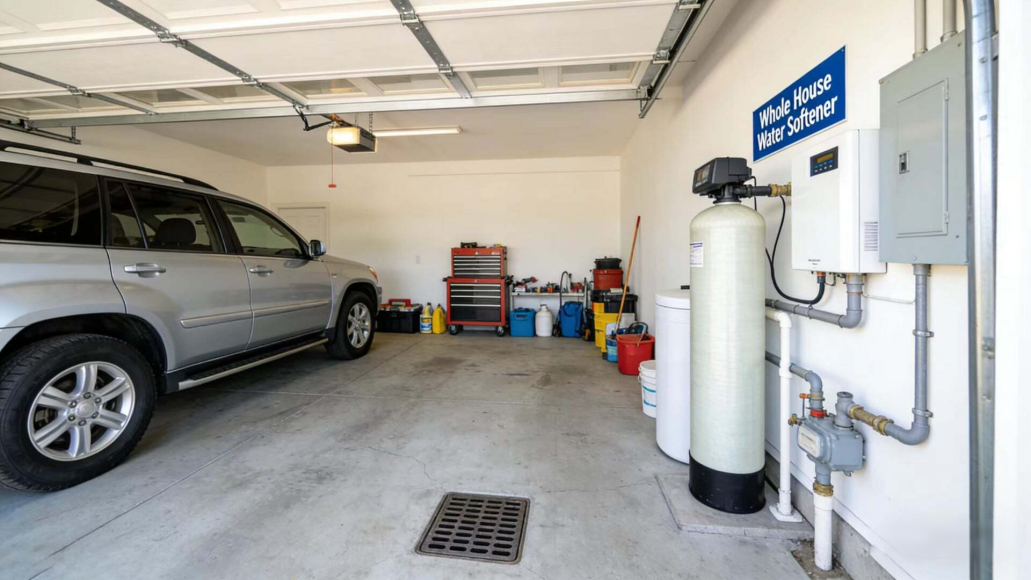

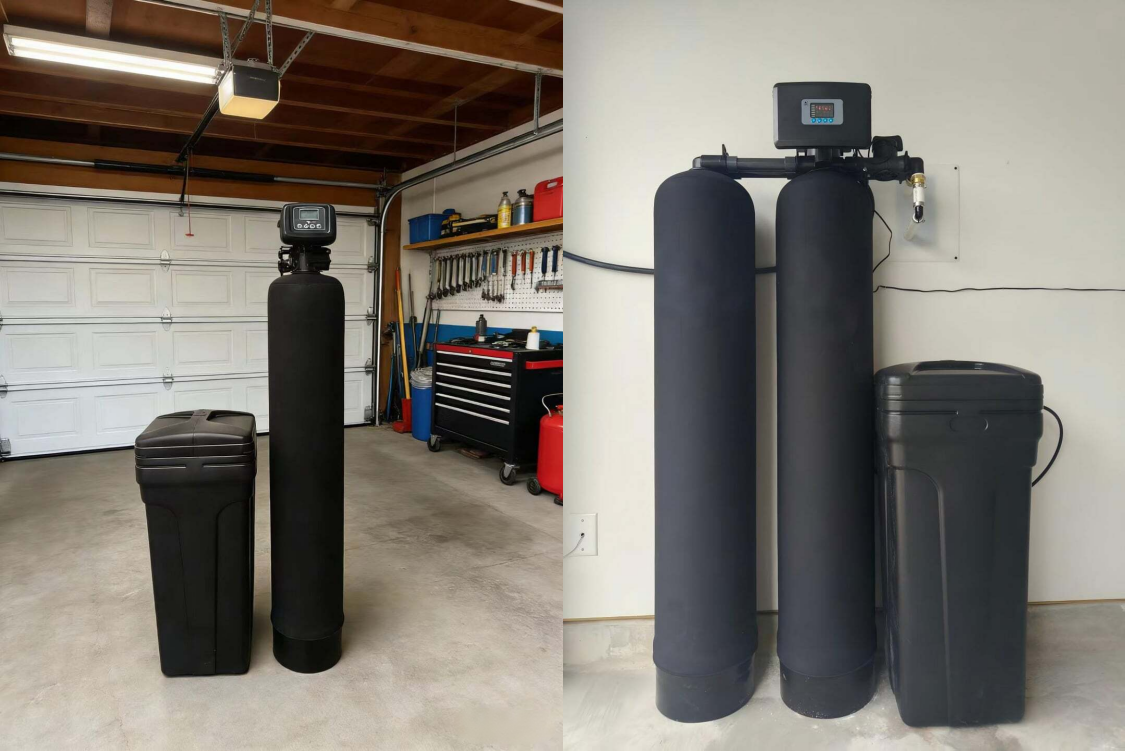

Many American households opt to install whole-house water softeners in garages. However, most garages are not pre-plumbed with dedicated drain lines, which becomes a major headache during installation. Additionally, strict plumbing and environmental regulations across the United States impose penalties for improper discharge of brine from water softener regeneration. Combining general North American plumbing codes and practical experience across regions, this guide covers fully compliant installation solutions, material lists, construction guidelines, and key drainage regulations to help you complete the installation safely and hassle-free.
The following four practical solutions are sorted by garage conditions, construction difficulty and long-term operating costs. All comply with mandatory North American plumbing codes: maintain a 1.5–2 inch air gap at the drain outlet. Wastewater can only be discharged to municipal sewers or septic systems. Discharging into storm drains is strictly prohibited.
This is the most widely adopted method in North America. It requires no extra equipment, features simple installation and zero operational faults long-term.
Run the standard 1/2-inch salt-resistant drain hose from the water softener to a laundry tub or utility sink. Route the hose along walls or ceilings with a consistent slope of 1/4 inch drop per foot. Avoid upward bends or sagging sections that trap standing water. Keep the total hose length within 30 feet; excessive length causes backpressure and impairs the softener’s regeneration performance. Secure the hose end over the sink rim with a fastener, leaving a 1.5–2 inch air gap to prevent sewage backflow.
For floor drains in basements or bathrooms: Route piping along exterior walls or under the floor, and connect to floor drains or toilet drain lines with dedicated adapters. Always retain the air gap; never insert the hose directly and sealed into the drain opening.
Drain to exterior sewer lines (only in permitted areas): If indoor drains are too far away, run the pipe to a backyard sewer cleanout. Install a rodent screen on the pipe outlet and fasten it firmly.
Critical Reminder: Never discharge brine to storm drains, lawns or gardens. High-salinity brine damages soil, kills vegetation and contaminates groundwater, which is a code violation.
Ideal for homeowners who plan to use the water softener in the garage long-term with no nearby indoor drains. This is a permanent plumbing modification.
Drill holes in the concrete floor with a jackhammer and bury a 2-inch SCH40 standard PVC pipe to connect to the main building sewer. Consult a licensed plumber beforehand to confirm the proper connection point.
Set the above-ground height of the riser to 12–18 inches, and fit a 2-inch P-trap at the pipe bottom to block sewer odors.
Suspend the water softener drain hose above the riser opening, maintain the required air gap and secure the hose to prevent disconnection.
Use this solution when the drain point is higher than the water softener, making gravity drainage impossible. It is the mainstream choice for garages with elevation differences across North America.
Select a salt-resistant condensate pump (standard pumps corrode rapidly when exposed to brine) that meets these specifications: flow rate ≥ 1–2 GPM, head ≥ 10–20 feet, and compatible with 120V US voltage. Connect the pump inlet to the softener drain hose, and run 1/2–3/4 inch PVC piping from the pump outlet to a compliant drain.
Install a check valve in the pipeline to stop wastewater backflow. For added safety, fit an optional overflow alarm to alert you to water accumulation caused by pump failure. Place the pump in a dry area and clean the filter regularly for routine maintenance.

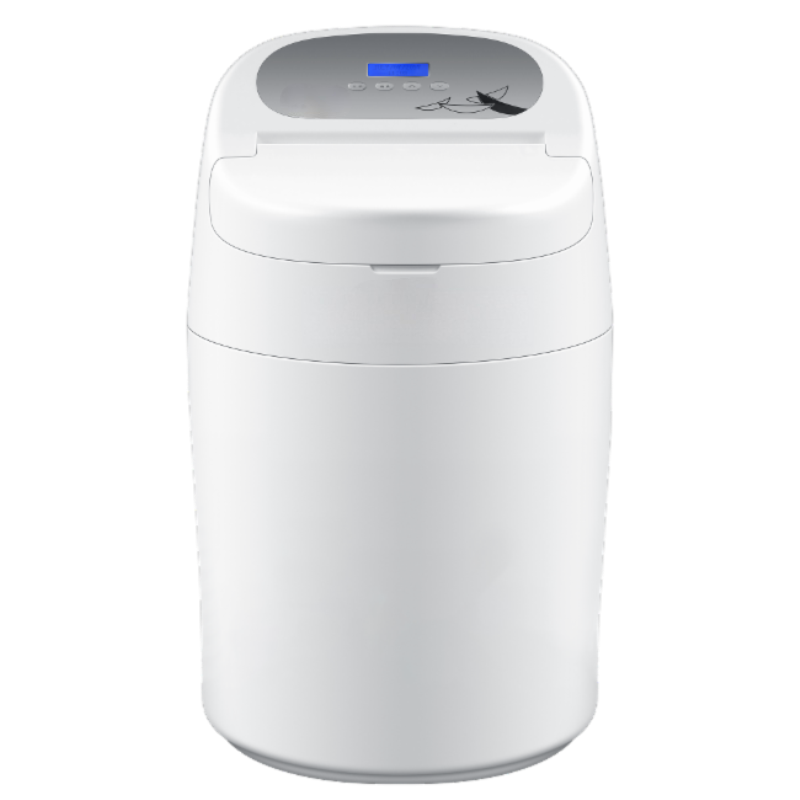

Choose this option if you want to avoid pipe modifications and extra equipment. Salt-free physical scale inhibitors require no drainage or salt refills, featuring easy installation and low maintenance — perfect for older garages or temporary use.
This device prevents scale buildup via physical crystallization and chelation, differing from traditional ion-exchange water softeners. Its scale removal rate is about 60%–80%, slightly lower than conventional water softeners. It also has a higher upfront cost and is recommended for areas with relatively low water hardness.
Drainage Solution | Extra Cost | Construction Difficulty | Compliance | Applicable Scenarios |
|---|---|---|---|---|
Pipe to Laundry Tub | $50–$100 | Low | Fully Compliant | Laundry room within 30 feet with a continuous downward slope |
Install Permanent Drain Riser | $200–$400 | Moderate | Fully Compliant | Long-term fixed use with no nearby indoor drains |
Add Condensate Pump | $150–$300 | Moderate | Fully Compliant | Drain point is higher than the softener; no gravity drainage conditions |
Replace with Salt-Free Conditioner | $800–$2000 | Low | Fully Compliant | No pipe modifications desired; sufficient budget; low local water hardness |
Divided into universal basic materials (required for all solutions) and dedicated accessories for each plan, with specifications, reference quantities, unit prices and usage notes.
Item | Specifications | Quantity | Unit Price (USD) | Purpose |
|---|---|---|---|---|
Whole-House Water Softener | 24k–32k grain residential model | 1 unit | $450–$1200 | Core water treatment unit with salt tank, control valve and bypass valve |
Salt-Resistant Drain Hose | 1/2 inch inner diameter | 20–30 ft | $0.5–$0.8 / ft | Transports regeneration brine; 10 ft hose included with most units |
Stainless Steel Hose Clamp | Fits 1/2 inch piping | 4–6 pcs | $1–$2 / pc | Secures pipe connections to prevent leaks |
Pipe Clamps / Cable Ties | Wall-mount type | 10–15 pcs | $0.2–$0.5 / pc | Fastens hoses to walls to maintain proper drainage slope |
Thread Seal Tape | Plumbing grade | 1 roll | $3–$5 | Seals threaded joints to stop seepage |
Water Softener Salt | High-purity pellet salt | 2–3 bags (40 lbs/bag) | $6–$8 / bag | For unit regeneration; rock salt is prohibited |
Pipe Hangers / Supports | Wall-mounted type | 5–8 pcs | $1–$2 / pc | Supports piping to avoid sagging and standing water |
Total for Basic Materials (including softener unit): $550–$1300
Item | Specifications | Quantity | Unit Price (USD) | Purpose |
|---|---|---|---|---|
Air Gap Fitting | 1/2 inch wall-mounted | 1 pc | $8–$15 | Meets code air gap requirements and prevents backflow |
Hose Coupling | 1/2 inch | 1–2 pcs | $3–$5 / pc | Extends hoses when length is insufficient |
Metal Mount Hooks | Universal type | As needed | $1–$2 / pc | Secures hoses above sink rims |
Total Extra Cost: $20–$40
Item | Specifications | Quantity | Unit Price (USD) | Purpose |
|---|---|---|---|---|
PVC Pipe | 2-inch SCH40 | 3–5 ft | $2–$3 / ft | For riser and underground connecting lines |
90° PVC Elbow | 2-inch | 2 pcs | $3–$5 / pc | Changes pipe direction and connects to main sewer |
PVC Coupling | 2-inch | 1–2 pcs | $2–$4 / pc | Joins pipe sections for extension |
P-Trap | 2-inch | 1 pc | $8–$12 | Seals piping and blocks sewer odors |
Screened Pipe Cap | 2-inch | 1 pc | $3–$5 | Protects riser top from rodents and debris |
PVC Cement & Cleaner | For 2-inch PVC | 1 set | $8–$12 | Bonds PVC pipes for watertight seals |
Concrete Drill Bit | 1.5–2 inch | 1 pc | $15–$25 | Drills holes in concrete floors for pipe burial |
Total Extra Cost: $60–$100
Item | Specifications | Quantity | Unit Price (USD) | Purpose |
|---|---|---|---|---|
Salt-Resistant Condensate Pump | 120V, ≥1.5 GPM, head ≥20 ft | 1 unit | $120–$220 | Lifts wastewater for elevated drainage |
Pressure-Resistant Drain Pipe | 3/4 inch PVC / 5/8 inch hose | 20–30 ft | $0.8–$1.5 / ft | Outlet piping for the pump |
Check Valve | 3/4 inch | 1 pc | $8–$15 | Prevents wastewater backflow and equipment damage |
Overflow Alarm (Optional) | 120V | 1 set | $20–$40 | Alerts users to overflow caused by pump failure |
Weatherproof Outlet (If needed) | 120V | 1 pc | $15–$25 | Powers the condensate pump |
Total Extra Cost: $150–$300
Item | Specifications | Quantity | Unit Price (USD) | Purpose |
|---|---|---|---|---|
Salt-Free Scale Inhibitor | Whole-house model | 1 unit | $700–$1800 | Physical scale prevention; no drainage or salt required |
Pipe Fittings | 3/4 inch / 1 inch (match main water line) | 4–6 pcs | $5–$10 / pc | Connects to main household water supply |
Total Cost for Full Set: $700–$1800
2 adjustable wrenches, pipe cutter / hacksaw, power drill with drill bits, 4-foot level, tape measure, bucket and cleaning rags.
Many homeowners take shortcuts by draining water softener brine onto lawns, which violates local codes in most US cities and counties. This improper practice leads to environmental harm and fines.
Damaged Soil & Vegetation: High-salinity brine alters soil composition and kills plants and trees over time.
Groundwater Contamination: Brine seeps into underground aquifers and endangers drinking water quality for surrounding areas.
Storm Drain Contamination: Surface runoff carrying brine often flows into public storm drains. US laws strictly ban discharging pollutants into storm sewer systems, with severe penalties for violations.
Municipal Sewer Connections: National uniform rule: Water softener brine must be discharged to sanitary municipal sewers. Surface discharge is illegal and may result in reports and penalties from water authorities or neighbors.
Septic System Properties: Direct yard discharge is forbidden. Some areas allow dedicated leach pits for brine disposal, but you must submit applications and obtain construction permits from local health departments prior to installation, and follow approved design standards.
Remote Areas with No Public Sewers: Regulations are less strict in these regions, but direct discharge is still not recommended. Route wastewater properly to avoid runoff onto adjacent properties for environmental compliance.
Look up local regulations: Search municipal ordinances using keywords: Water Softener Discharge, Brine Disposal to clarify local requirements.
Confirm with official departments: Contact local building safety or public works departments to verify legal drainage methods for garage-installed water softeners without dedicated drains.
Hire professional contractors: If yard discharge is prohibited locally, work with a licensed plumber to run pipes to compliant indoor drain points for long-term code compliance.
On-site Survey: Measure the distance and elevation difference between the garage and the nearest compliant drain to select the appropriate solution.
Pipe Routing: Lay drain lines with the required slope. Avoid upward bends, and secure piping every 2–3 feet with clamps.
Joint Treatment: Wrap thread seal tape around all threaded connections for a tight seal. Maintain a 1.5–2 inch air gap at all drain outlets.
Test Run: Manually start the softener regeneration cycle to check for smooth water flow, leaks and backflow issues.
Cold Climate Protection: Insulate garage pipes and pumps in northern regions. Keep ambient temperature above 35°F to prevent pipe freezing and cracking.
Regular Inspections: Check pipe connections and pump filters monthly, and clear accumulated debris promptly.
Pipe Replacement: Replace salt-resistant hoses every 2–3 years to prevent cracking from aging.
For water softener installation in US garages:
Prioritize piping to existing indoor drains for low cost and easy installation.
Use a salt-resistant condensate pump if elevation differences prevent gravity drainage.
Install a permanent drain riser for long-term garage use with no nearby drains.
Choose a salt-free scale inhibitor if you wish to avoid any pipe modifications.
Regardless of the solution selected, always follow North American plumbing and environmental regulations. Never discharge regeneration brine to yards or storm drains. Proper piping and equipment setup ensure stable softener operation and help you avoid regulatory penalties.
