Views: 21132 Author: Site Editor Publish Time: 2026-08-28 Origin: Site

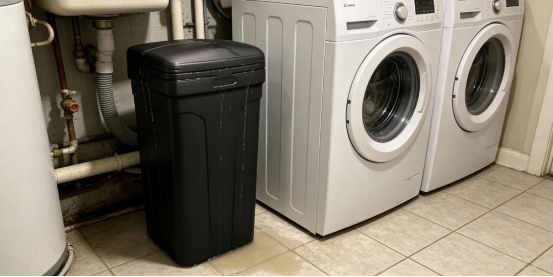

Many households with whole‑house water softeners encounter unexplained standing water, persistently high water levels, or brine overflow inside the brine tank. Early‑stage failures often only present as minor water pooling while the unit still produces soft water normally, so these issues are frequently overlooked.
Brine‑tank water pooling and overflow are very common for residential water softeners in Europe and North America. Most cases start with subtle seepage that goes unnoticed. Professional service labor costs are extremely high in these regions; a service call alone can cost hundreds of US dollars, with separate charges for replacement parts, consumables and working hours. Many homeowners ignore early‑stage water‑pooling symptoms and allow units to operate under fault conditions. Minor, easily‑resolved issues eventually escalate into component damage, electrical malfunctions, home‑property corrosion, and even water‑damage claims against neighbours, resulting in substantial unexpected expenses。
Brine‑tank pooling and overflow are far more than simple surface leaks. Root causes fall into six major categories, with adverse effects worsening progressively. Understanding these basic principles allows ordinary users to troubleshoot simple faults on their own, address hidden risks promptly, reduce unnecessary service costs and prevent equipment‑damage risks.
Failures behind brine‑tank pooling and overflow rarely stem from a single cause. Almost all malfunctions fall under the categories listed below.
Mechanical‑seal failure is the most frequent underlying cause of residential water‑softener overflow. It mainly manifests as internal cross‑leakage through multi‑port valve seals and brine‑tank float‑assembly malfunction, corresponding to chronic hidden faults and acute visible faults respectively。

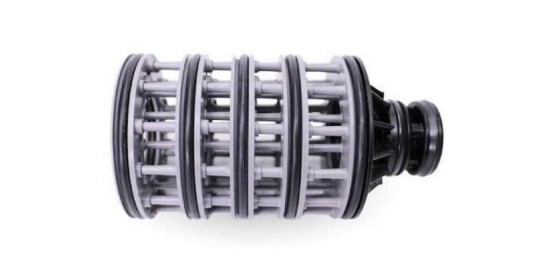

Worn multi‑port valve O‑rings causing internal cross‑leakage The multi‑port control valve manages overall water‑path switching for the system. Multi‑layer sealing O‑rings isolate four independent water circuits: refill, brine draw, drain, and treated water. After frequent regeneration cycles, scouring by water‑borne impurities, and chemical ageing from brine exposure, sealing O‑rings suffer wear, hardening, deformation and micro‑cracking. Water‑path isolation breaks down, creating concealed internal cross‑leakage paths.
This fault is highly covert with no external water‑leak signs. While the unit sits idle, water from the treated‑water side slowly leaks into the brine‑tank loop. Brine‑tank water levels rise day‑by‑day until water spills over the tank rim — this is the leading cause of unexplained water pooling in most systems.
Brine‑tank float‑assembly malfunction Salt‑deposit jamming of float linkages, deformation from physical impact, float detachment and sinking, or failed float‑valve seals can render the float‑based water‑level‑control system completely inoperable. The refill valve cannot shut off automatically, and water continuously feeds into the brine tank. Water accumulates rapidly and quickly fills or overflows the tank. This obvious failure mode is the overflow issue most frequently encountered by new users.
Abnormal hydraulic conditions are seldom covered in popular consumer guides yet represent a major source of chronic hidden overflow. Two key triggers are ejector (venturi) malfunctions and pressure‑imbalance at the brine‑tank vent hole.

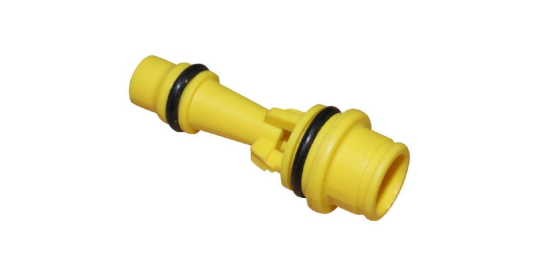

Fully or partially clogged ejector (venturi) The ejector (venturi tube) generates vacuum suction to pull brine during regeneration. Its tiny orifice easily clogs with salt crystals and sediment. A complete blockage eliminates vacuum, halts brine suction, leaves standing water trapped in the brine tank, and causes overflow; this failure is relatively easy to diagnose.
Partial ejector blockage carries greater hidden risk. Fine salt residue and thin mineral scale adhere inside the orifice without fully stopping flow, yet drastically reduce vacuum suction. Each regeneration cycle pulls insufficient brine for too short a duration. Small volumes of residual water accumulate cycle‑after‑cycle, producing persistent pooling and intermittent overflow. This recurring fault is notoriously hard to locate.
Clogged brine‑tank vent hole The brine tank is semi‑enclosed. Successful brine draw relies on the top vent hole to equalise internal‑external air pressure. When salt‑fog deposits or debris block the vent, internal tank pressure becomes negative, brine‑draw resistance rises sharply, and brine cannot be extracted normally. Water levels never drop properly; this is a common culprit behind stubborn, hard‑to‑fix overflow issues.
Poor drainage and wastewater back‑pressure are major contributors to rising brine‑tank water levels. Three primary mechanisms are general‑line drainage faults, blocked DFC flow restrictor, and municipal‑supply back‑pressure; these are the main sources of back‑flow‑driven overflow。

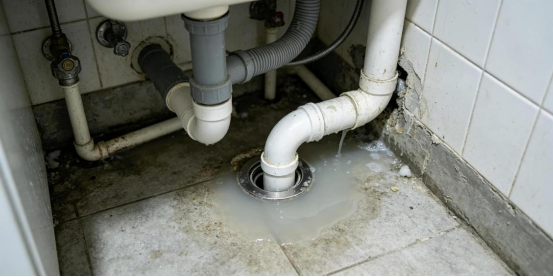

General drain‑line anomalies Kinked or crushed drain tubing, internal sediment buildup, improperly elevated drain‑line routing, or air‑trapped floor drains slow or block regeneration wastewater discharge. Wastewater cannot fully drain within programmed timings and flows backwards into the brine tank, raising water levels and triggering overflow.
Clogged DFC drain‑flow restrictor The built‑in DFC flow restrictor in drain lines precisely regulates drain flow and regeneration timing. Buildup of fine salt sludge and limescale causes partial blockage, cuts drain‑flow rates, terminates drain cycles prematurely, and leaves large volumes of wastewater trapped in piping that flows back into the brine tank. This is a very frequent tricky‑overflow fault on premium‑model softeners.
Municipal‑supply back‑pressure Extreme fluctuations in municipal water pressure or excessive return‑line back‑pressure can push backwards against the softener drain line. Wastewater cannot discharge freely and accumulates via system‑wide back‑flow. No physical component damage occurs, making this fault difficult to spot using standard troubleshooting steps.
Besides main‑board program glitches and sensor failures, malfunctioning valve‑head micro‑switches are the core electromechanical cause of timing errors and residual brine‑tank water.
Every regeneration‑station shift of the multi‑port valve depends on micro‑switches inside the valve head for precise positioning. Oxidised switch contacts, poor electrical connection or misaligned mechanical positioning disrupt regeneration timing. Consequences include over‑long refill cycles, premature drain‑cycle termination, and mid‑cycle brine‑draw interruptions. Standing water remains in the brine tank and water levels exceed safe limits. This is purely a logic‑timing deviation with no visible physical breakage or unit error codes, making self‑diagnosis difficult for ordinary users.

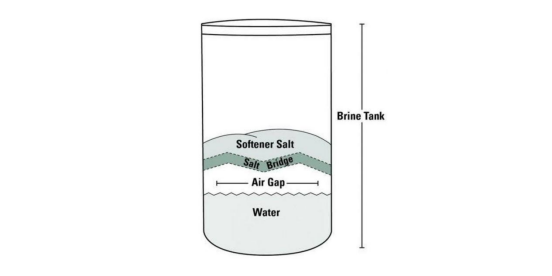

Misguided daily maintenance practices are a major source of household‑unit failures and are entirely preventable. Over‑filling with softener salt and failing to clean salt sludge from the brine‑tank base rapidly create salt bridges and compacted salt masses. Salt bridges suspend the upper salt layer, physically separating salt from the water below. Dissolved‑salt concentrations drop too low for proper regeneration. Detecting insufficient brine strength, the unit automatically adds extra refill water, pushing water levels high enough to cause overflow.
Frequently manually forcing regeneration cycles or arbitrarily altering factory‑set refill‑flow and regeneration‑timing parameters disrupt standard operating logic. Combined with water‑pressure swings and pipe‑system resistance, these changes readily trigger abnormal water pooling and repeated overflow events.
Many homeowners assume brine‑tank overflow is merely a nuisance leak.
Persistent standing water accelerates salt crystallisation, forming hard salt bridges and compacted salt blocks that isolate salt from liquid brine. Insufficient brine strength leads to incomplete resin regeneration, and the softener loses its primary water‑hardness‑reduction capability. Standing water dilutes saturated brine, lowering regeneration efficiency. The unit compensates by triggering regeneration more often and running longer cycles, sharply increasing salt and water consumption.
Overflow directly wastes softener salt, driving high long‑term consumable costs. Stagnant brine inside the tank accumulates slime and algae as salt sludge darkens and decomposes, creating breeding grounds for bacteria and insects.
Resin beads constitute the softener’s core functional component. Overflow‑related faults produce two distinct forms of resin damage that combine to ruin treated‑water quality.
Standard calcium‑magnesium fouling Diluted brine from brine‑tank pooling causes incomplete regeneration. Calcium‑magnesium ions adsorbed onto resin cannot be fully displaced. Minerals build up inside resin pores. Soft‑water performance declines, regeneration cycles become overly frequent, and outlet water hardness rises. This constitutes mild damage and can be recovered by forced high‑brine regeneration.
Irreversible resin iron poisoning This is the severe long‑term outcome of neglected overflow. Salt‑tank sludge and pipe‑work‑derived iron oxides coat resin beads, physically blocking pore structures and destroying resin activity. Symptoms include yellow‑tinted output water, odd odours, and elevated metal‑ion content. Affected resin cannot be restored by regeneration and requires full replacement at substantial cost.
Moreover, accumulated sludge and micro‑organisms can travel through plumbing throughout the house, causing secondary water contamination that compromises safety for drinking, bathing and washing.
Salt crystals and sludge carried by overflow brine enter the multi‑port valve, building up on spools and sealing passages. Resulting symptoms include spool sticking, erratic operation and valve‑body leakage. Heavy salt‑scale buildup can seize the valve completely and shut the system down.
Crucially, conductive concentrated brine that spills onto valve‑head electronics and main‑circuit boards creates risks of electric shock, short circuits and burnt circuit boards. Complete unit failure may follow, presenting tangible electrical‑safety hazards. Frequent failed regenerations and repeated cycling also raise ongoing water‑and‑power‑utility expenses.
Persistent standing water and rotting salt sludge inside brine tanks create moist, nutrient‑rich enclosed conditions ideal for breeding psychodidae drain flies (moth flies) and fungus gnats. Populations spread to kitchens, utility rooms and balconies. Insect carcasses, fragments and eggs contaminate living spaces via air movement and splashing water. This concealed sanitation hazard is frequently overlooked.
Concentrated brine is a strongly corrosive electrolyte solution. Spilled brine soaks wooden cabinets and flooring, causing swelling, mould growth, warping and cracking. It attacks cement floors and wall paint, producing efflorescent white salt deposits, crumbling plaster and peeling finishes, causing permanent property damage.
If water seeps down through floor slabs, it damages ceilings and wall finishes in units below. This frequently triggers neighbour disputes, water‑damage‑repair claims and costly renovation bills.
Early‑stage brine‑tank overflow stems from simple blockages or refill‑logic anomalies with very low correction costs. Left unaddressed, faults compound in severity. Early‑phase impacts include minor waste of salt, water and electricity. Mid‑phase consequences cover resin poisoning, valve damage and poor water quality requiring part replacement and service work. Advanced‑stage failures bring burnt circuit boards, total unit write‑offs, home‑renovation costs and third‑party compensation claims.
Originally minor hundred‑dollar‑level faults can balloon into multi‑thousand‑dollar or even ten‑thousand‑dollar combined losses. In addition, poorly‑regenerated hard‑water entering boilers, underfloor‑heating circuits and HVAC systems accelerates pipe‑scale buildup, reduces heat‑exchange efficiency, increases energy consumption and shortens service life of connected appliances, creating hidden cumulative long‑term losses.
Water‑softener brine‑tank overflow originates from six categories of root causes: mechanical‑seal defects, hydraulic‑condition anomalies, drain‑system faults, electromechanical‑electronic failures, water‑supply‑pressure conditions, and human‑maintenance errors. These cover both obvious and hidden failure modes. Consequences progress from impaired equipment function and destroyed resin, through electrical damage, degraded household hygiene, property degradation, to neighbour‑disputes and large‑scale financial loss.
Therefore, perform regular inspections of brine‑tank water levels; clear drain‑flow‑restrictor debris; clean salt deposits from the ejector; inspect valve seals and micro‑switch operation; and keep brine‑tank vent holes unobstructed. These practices effectively prevent overflow faults. Timely intervention at early‑failure stages avoids system shutdown, safety hazards and expensive repairs, and supports stable, cost‑effective long‑term water‑softener performance.
