Why Do FRP Tank Openings Crack? How To Prevent？

Cracking and seepage at the HDPE integrally injection-molded threads of the FRP tank opening are frequent failures in whole-house water softening system operation. Such failures do not cause equipment shutdown, but persistent seepage will soak cabinets, floors and walls, form scale and mold, accelerate equipment aging, and substantially increase equipment replacement and operation & maintenance (O&M) costs.

1 Core Structural Parameters of the Equipment

1.1 Tank Structure

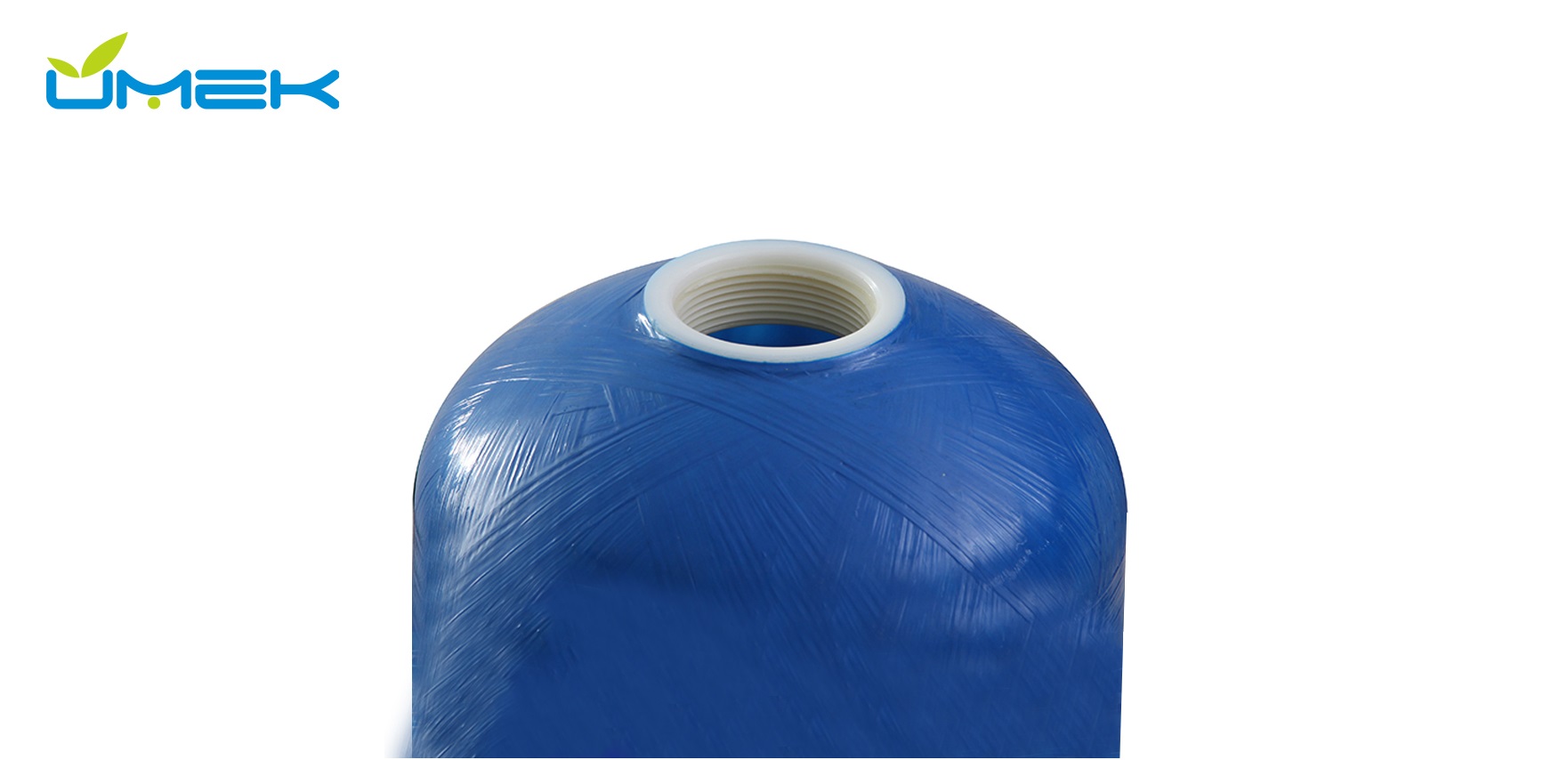

The top connection of the FRP tank is made of high-density polyethylene (HDPE), which is integrally injection-molded with the tank body as a non-detachable, non-repairable and non-replaceable integral structure. Once the threaded section cracks, the entire tank must be replaced.

1.2 Thread Adaptation Standard

Mainstream water softening control valves (e.g., Fleck, Clack) adopt a unified 2½"-8 NPSM American standard parallel thread for connection to FRP tanks. Unlike the commonly used NPT tapered thread for piping, this parallel thread achieves compression sealing via the O-ring at the valve head bottom, requiring no Teflon tape winding or bolt fastening.

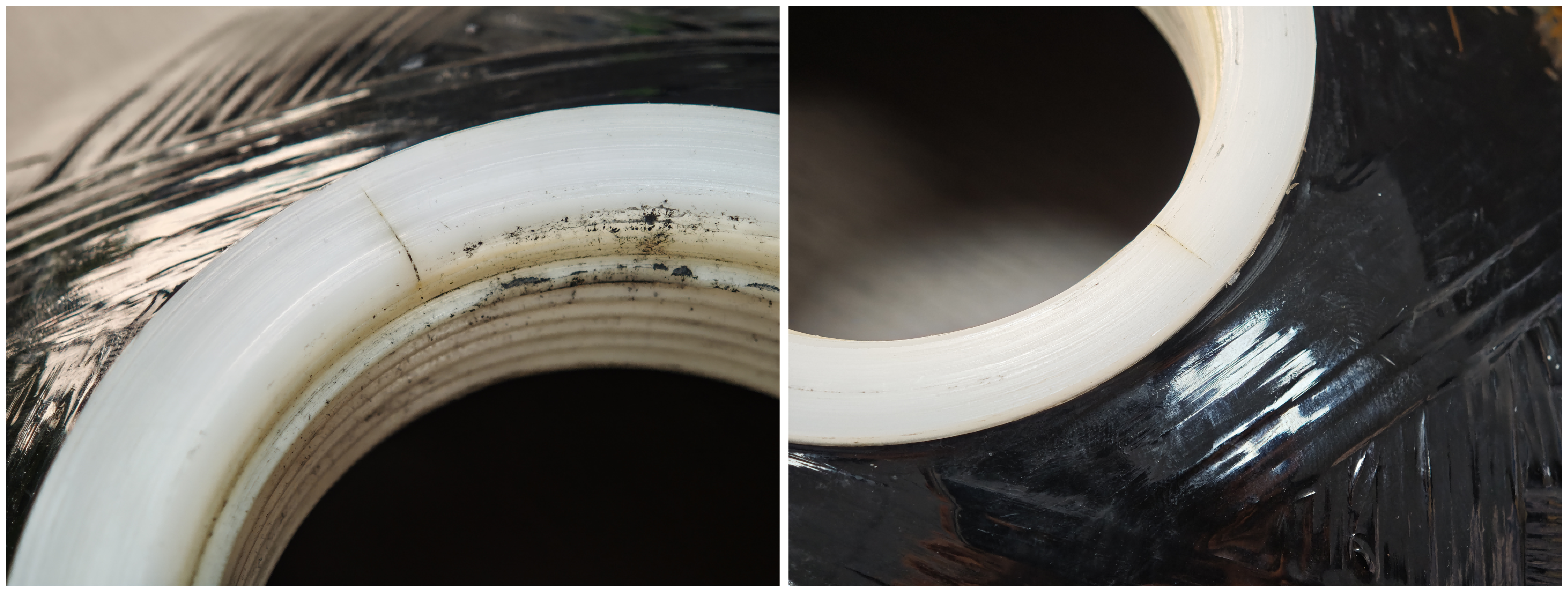

2 Root Causes of Tank Opening Thread Cracking

2.1 Non-standard Valve Head Installation Leading to Mechanical Stress Overload (Primary Cause)

Most tank opening thread cracking results from improper manual installation, disassembly and assembly. The NPSM parallel thread relies on O-ring sealing with no self-tightening function, demanding extremely high installation accuracy and torque control. Non-standard operations directly induce stress cracking:

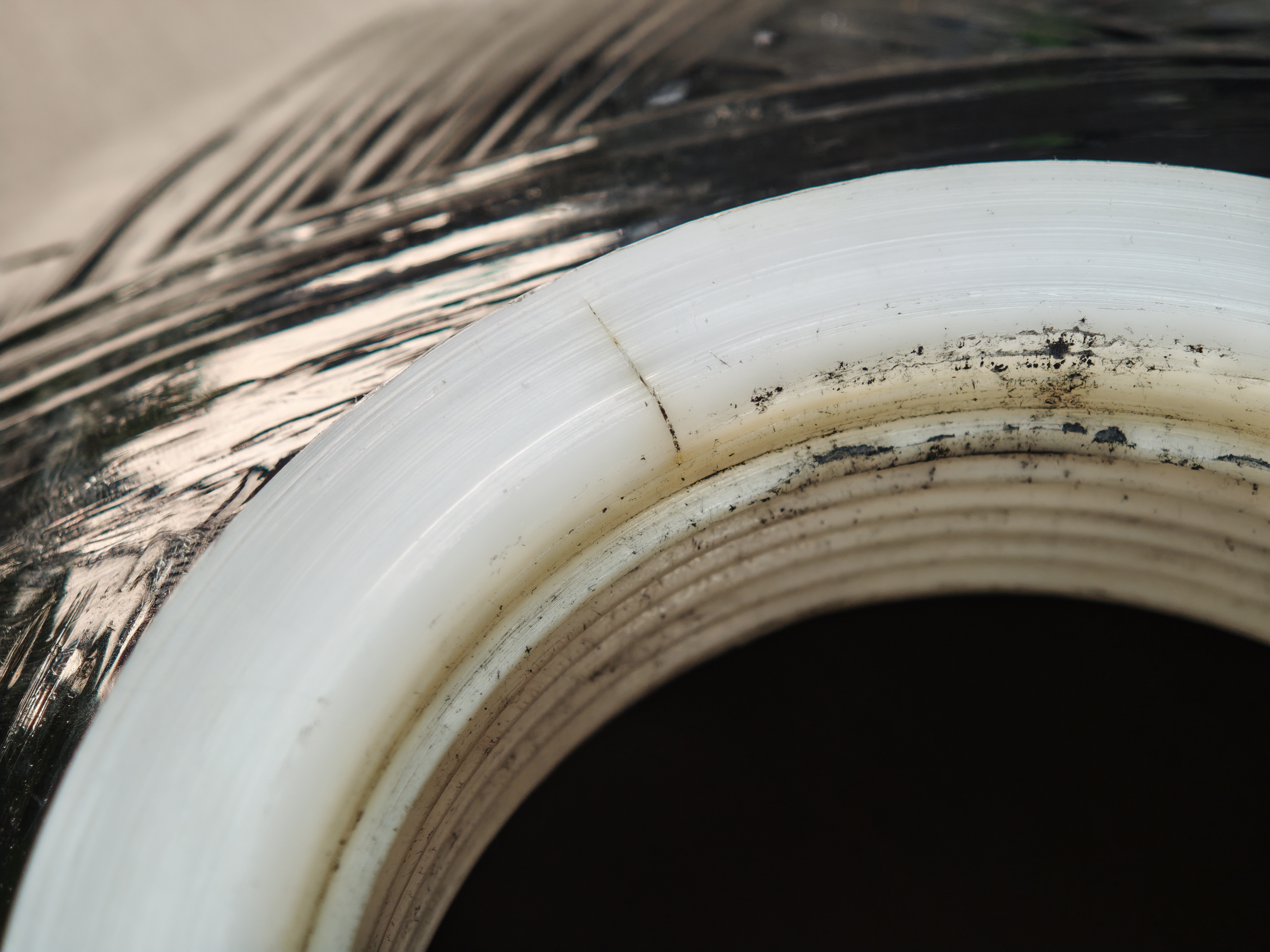

1. Excessive tightening torque: Installers tighten the valve head violently beyond the standard applicable torque. HDPE features low rigidity and limited extrusion stress resistance. Over-tightening subjects thread teeth to sustained compression, generating static residual stress at the thread root. Long-term stress accumulation triggers transverse cracks originating from the root, the most common cracking pattern on site.

2. Eccentric and forced oblique engagement: The valve head is not vertically concentric with the tank opening during installation, and is forced into engagement after misalignment. The NPSM parallel thread has no self-centering capability; eccentric installation causes unilateral thread loading, producing high shear stress that directly tears the HDPE thread wall and forms irregular unilateral cracks.

3. Uneven stress due to thread blockage: During equipment maintenance and disassembly, impurities such as scale, sediment and rubber debris remain in the tank opening thread groove and are not cleaned before valve head installation. Trapped impurities create local stress concentrations, squeezing the thread wall to form hidden cracks that gradually expand and seep under water pressure over time.

4. Deformed old O-rings causing overload: Repeated use of aged, deformed or expanded O-rings leads to installation jamming, preventing proper valve head seating. Operators then apply excessive tightening, indirectly causing thread overload cracking.

2.2 Water Supply Pressure Fluctuation Inducing Material Fatigue Cracking

Civil water supply pressure is highly unstable. Frequent pressure fluctuations, combined with daily system regeneration, backwashing, pump start-stop and pressure relief, generate repeated cyclic expansion–contraction stress inside the FRP tank.

As the critical stress-sensitive point at the tank top, the HDPE integral thread at the tank opening undergoes long-term high-frequency tensile and compressive stress, leading to gradual material fatigue and micro-cracking. Over service time, cracks propagate and eventually penetrate the thread wall, resulting in seepage.

2.3 Environmental and Water Quality Effects Accelerating Material Aging and Embrittlement

The toughness and crack resistance of HDPE degrade continuously with service environment and water quality. Once embrittled, the material cracks under minor stress:

1. Ultraviolet aging: Equipment placed outdoors or exposed to prolonged direct sunlight suffers UV-induced degradation of HDPE molecular structure, causing severe loss of toughness, increased brittleness and significantly reduced stress-cracking resistance.

2. Water quality corrosion: Chlorine and high hardness in tap water corrode the thread surface over time, accelerating material aging and weakening thread structural strength.

3. Low-temperature embrittlement: HDPE toughness drops sharply and brittleness rises in low-temperature environments. Valve head disassembly/assembly or water pressure shock under such conditions readily causes brittle cracking.

2.4 Inherent Factory Quality Defects (Dual Issues of Raw Materials and Processing)

Some tank cracking stems from inherent factory quality hazards caused by inferior raw materials and substandard processing, a common defect of low-cost tanks in the industry:

1. Raw material defects: To cut costs, manufacturers use recycled plastic instead of food-grade virgin HDPE for the tank opening integral thread. Recycled material has broken molecular chains, high impurity content and poor toughness, with far lower stress and fatigue resistance than virgin material, making it prone to cracking under normal operating conditions.

2. Injection molding defects: Non-standard process parameters during integral injection molding cause uneven thread wall thickness, thin thread roots, internal bubbles, shrinkage cavities and inclusions. Insufficient post-molding curing leaves high residual internal stress. These hidden flaws turn the thread section into a weak point, and stress release during service directly triggers cracking.

2.5 Rough Handling and O&M Causing Physical Hidden Damage

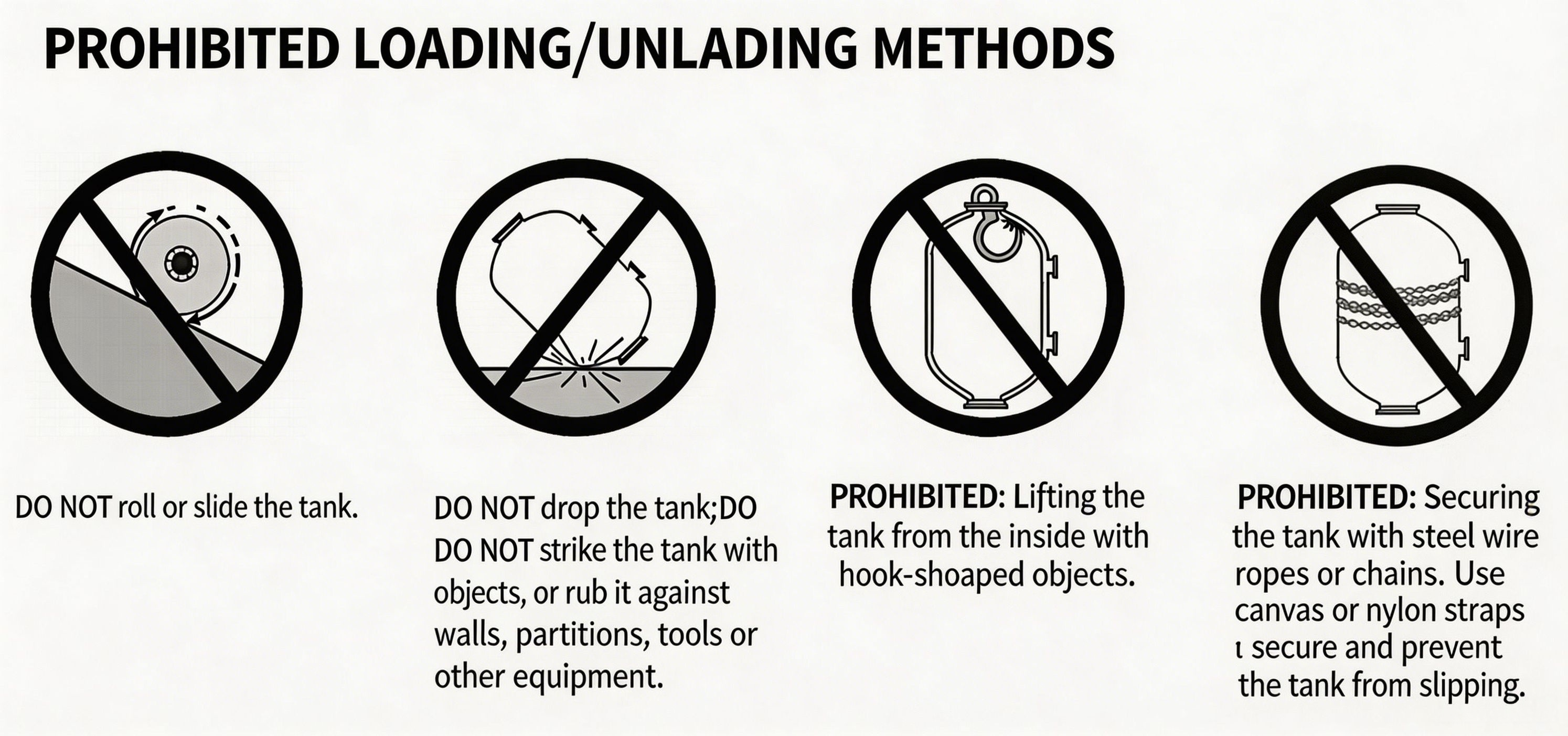

Non-standard operations during equipment handling, overhaul and disassembly inflict irreversible damage to the tank opening thread: impacts against hard objects during transport, forceful prying or forced twisting during valve head disassembly, and tool drops striking the tank opening. Such actions create hidden micro-cracks with no initial seepage. Under long-term water pressure and stress, micro-cracks propagate and eventually cause seepage and cracking.

3 Targeted Practical Solutions

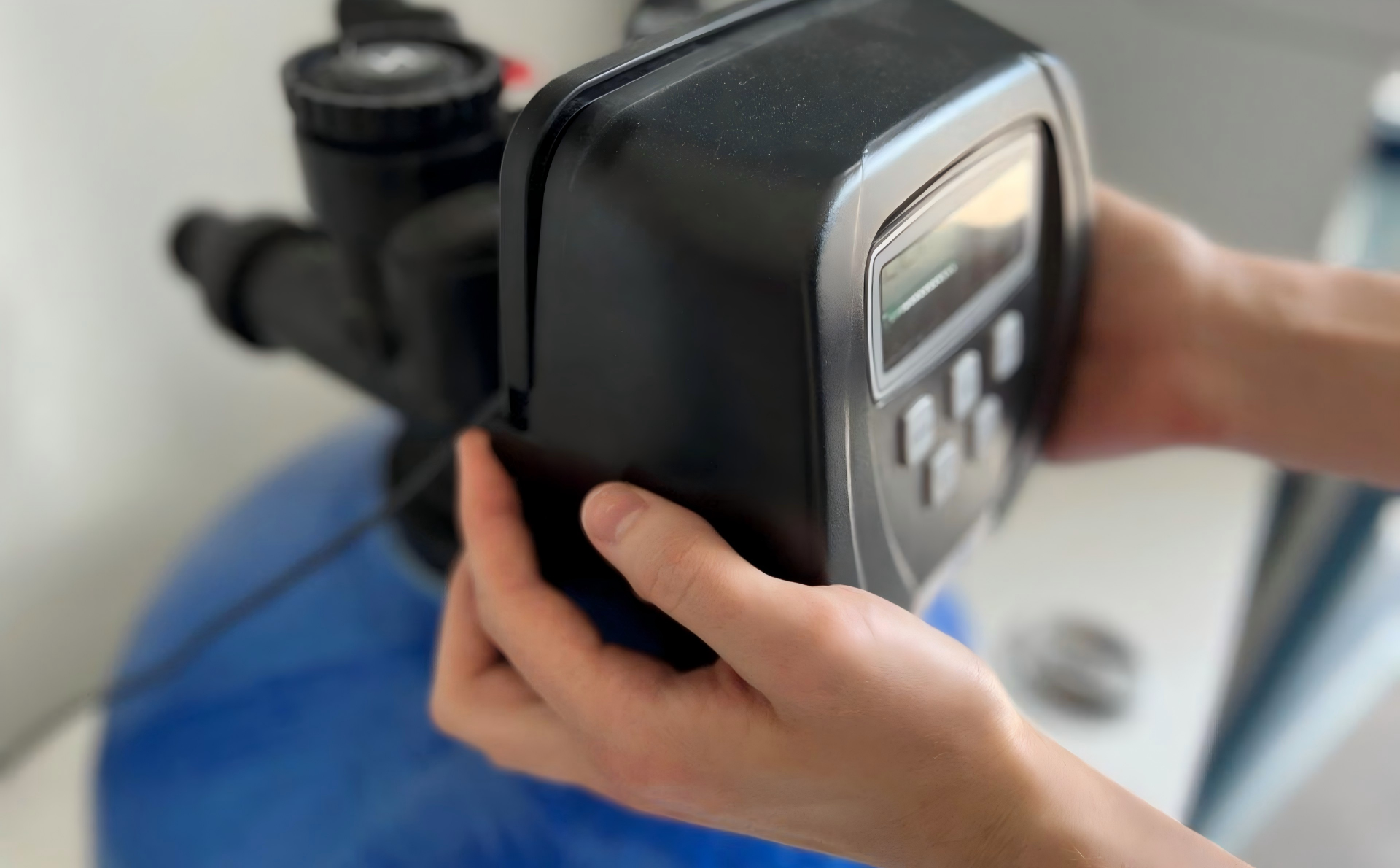

3.1 Standardize Valve Head Installation to Eliminate Stress Overload

Follow strict light-assembly, concentric-alignment and moderate-tightening installation rules tailored to NPSM parallel thread characteristics to prevent stress cracking at the source:

1. Pre-installation cleaning: Thoroughly remove scale, sediment, debris and other impurities from the tank opening thread groove before each installation to ensure smooth engagement; replace with a new compatible O-ring and prohibit reuse of aged or deformed rubber rings.

2. Vertical concentric alignment: Keep the valve head perfectly vertical and concentric with the tank opening during installation, allowing natural thread engagement by self-weight; forbid forced oblique screwing.

3. Tightening torque control: NPSM threads only require O-ring compression and no excessive tightening. Standard procedure: hand-tighten to full contact, then add a slight 1/4 turn; prohibit over-torque or violent tightening.

4. Compliance with standard valve heads: Use only control valves conforming to the 2½"-8 NPSM standard; reject non-standard or poorly manufactured valves with mismatched thread pitch or diameter to avoid abnormal engagement stress.

3.2 Optimize Water Supply Conditions to Reduce Material Fatigue

Install a pressure stabilizer and pressure reducing valve at the equipment inlet to stabilize inlet pressure within the standard operating range (0.2–0.4 MPa), greatly attenuating water pressure cyclic stress, reducing fatigue wear of the tank opening thread, and delaying crack formation. Optimize system operation logic to avoid frequent start-stop and instantaneous high-pressure shock.

3.3 Environmental Protection to Mitigate Material Aging

Implement targeted protection based on equipment installation environment: Maintain ventilation and dryness for indoor equipment; equip outdoor equipment with jackets to block prolonged direct sunlight; apply insulation protection to the tank opening in low-temperature conditions to prevent material embrittlement; regularly clean scale at the tank opening to reduce water quality corrosion and preserve long-term HDPE toughness and structural strength.

3.4 Strict Procurement Quality Control and Clear Supplier Technical Specifications

The tank opening thread is an integral non-replaceable structure. Mandatory quality standards shall be clearly specified to suppliers during procurement to eliminate inferior products at the source:

1. Raw material specification: Require food-grade virgin HDPE for the tank opening integral thread, banning recycled material; require suppliers to provide raw material inspection reports to verify compliance in toughness and stress-cracking resistance.

2. Processing specification: Require manufacturers to implement standardized integral injection molding, ensuring uniform thread wall thickness, adequate root thickness, no internal bubbles, shrinkage cavities or inclusions, full post-molding curing without residual internal stress, and thread accuracy conforming to NPSM industry standards.

3. Warranty agreement: Stipulate that tank opening thread cracking is a tank body quality defect, requiring the supplier to replace the entire tank.

3.5 Standardized O&M to Avoid Physical Damage

Perform gentle and standardized operations throughout equipment handling, disassembly, assembly and overhaul; prohibit knocking, prying or impacting the tank opening thread; screw slowly and evenly during valve head disassembly/assembly, forbidding forceful operation; conduct routine regular inspections to detect micro-cracks and seepage traces at the tank opening at an early stage and prevent fault escalation.
