Whole-house water softeners are common water purification equipment in American households. Their core function is to reduce tap water hardness, minimize limescale buildup on bathrooms, pipelines and home appliances, while improving daily showering, laundry and overall water usage experience. Most buyers only focus on tank size, resin capacity and complete machine brands, yet overlook the critical importance of the control valve.
The control valve serves as the core control component of a water softener. It determines the equipment’s water flow rate, regeneration performance, salt and water consumption, operational stability, and service life. After decades of development in the North American civil water purification market, a stable landscape of mainstream brands has formed: Fleck, Clack, Autotrol, three U.S.-based manufacturers that occupy the vast majority of the residential water softener control valve market. Almost all certified household water softeners are equipped with valve heads from these three brands.
Marked performance gaps exist between different brands and models. Some fit small regular homes for daily use, some support large residences with multiple simultaneous water outlets, some carry lower maintenance costs, and others deliver superior long-term durability. From the perspective of average household use, this article objectively introduces the core features, applicable home sizes, pros and cons of each mainstream control valve, helping buyers select a matching water softener configuration based on housing size, number of residents and budget, and avoid common issues including insufficient water pressure, frequent regeneration, excessive consumable waste and frequent equipment malfunctions.
Market distribution of North American water softener valves is shaped by long-term user feedback, failure statistics and home renovation installation habits, with unified selection standards among local installers and water treatment dealers. Each brand targets distinct application scenarios—there is no absolute "better" option, only better suitability for individual needs.
Fleck: Owned by Pentair, it holds the largest market share of control valves across North America. Pre-assembled units sold in supermarkets, custom renovation equipment and legacy softeners in resold homes mostly adopt Fleck valve heads. It delivers consistent stable operation, universal spare parts available nationwide across the U.S., simple low-cost repairs, and virtually no after-sales support bottlenecks. Its mainstream residential models include 5600SXT, 5800, 2510, covering standard household, large-home and entry-level economical scenarios respectively.
Clack: An independently U.S.-manufactured control valve brand with precision-engineered hardware that minimizes internal wear and delivers ultra-low long-term failure rates. It is widely installed in large single-family detached homes, villas and regions with extremely hard source water. Its upfront equipment and replacement part costs are relatively high, making it ideal for homeowners planning long-term occupancy who want to cut down maintenance frequency. Core residential and light commercial models: WS1, WS1.25, WS2.
Autotrol: Also a Pentair subsidiary, focused on budget-friendly pricing and simplified mechanical structures, widely deployed in small residences, rental properties and low-budget renovation projects. New units rarely experience factory defects, and core softening functions fully meet basic daily needs. However, its structural design limits performance under high-flow simultaneous water demand. Main residential models: 760, 263, 168/460.
All three brands fall into two fundamental valve body mechanical designs, the root cause of disparities in flow capacity, backwash efficiency, service lifespan and maintenance costs. Homeowners do not need to understand internal disassembly principles, only the hardware distinctions and corresponding daily performance gaps.
Balanced Piston Design (Fleck & Clack Full Lineup): Standard mid-to-high-end North American water softener architecture. Internal straight-through large cross-section flow channels, PTFE wear-resistant coatings on piston surfaces, and food-grade EPDM rubber sealing rings. Water paths switch via reciprocating piston movement.
Advantages: High Cv flow coefficient, minimal water pressure drop when multiple outlets run simultaneously, perfectly matching U.S. homes with multiple bathrooms and water appliances. Sufficient backwash flow fully agitates the resin bed to trap suspended impurities, preventing resin compaction and sustaining stable softened water hardness long-term. Piston sealing rings are standard wear parts requiring replacement every 3–5 years at low component cost with simple DIY serviceability.
Ceramic Rotary Disc Design (Autotrol Full Lineup): Two stacked fixed/moving ceramic discs that rotate to align port openings and switch water paths, eliminating reciprocating piston motion.
Advantages: Fewer moving parts, low factory defect rate on new units, lower overall equipment price, suitable for households with simple water demand.
Disadvantages: Folded internal flow channels reduce effective cross-sectional area, delivering lower Cv coefficients than comparable piston valves. Water pressure drops drastically when multiple taps run together. Backwash flow ceiling is limited, unable to fully clean large resin tanks; users must increase regeneration frequency, leading to slightly higher long-term salt and water consumption.
Fleck’s three core models boast massive market penetration and universal installation/repair support, fitting most standard U.S. household water demand. Key differentiators lie in piston drive mechanism, flow coefficient, backwash capacity, maximum compatible tank size and controller function tiers.

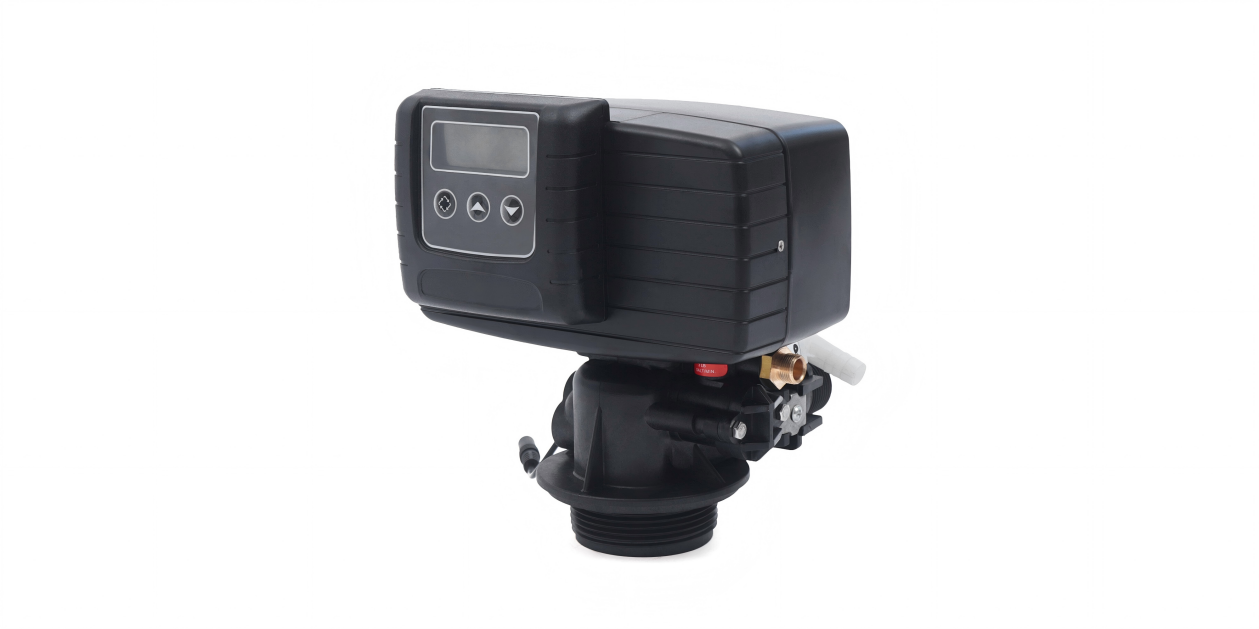

The most widely deployed residential control valve across North America, offering balanced hardware performance with no obvious drawbacks, compatible with nearly all standard homes.
Valve body constructed from fiberglass-reinforced Noryl, paired with PTFE-coated balanced pistons and EPDM sealing rings; decades of market validation guarantee reliable operation. Driven by stepper motors with cam positioning, mature design with universally interchangeable spare parts.
Flow parameters: Cv coefficient = 5.2, continuous service flow of 20GPM at 50psi inlet pressure with 15psi pressure drop, maximum backwash flow 7GPM, sufficient to fully flush resin tanks up to 12 inches in diameter.
Metering system: Built-in turbine flowmeter with ±5% accuracy, detecting low flow as low as 0.25GPM to avoid missed metering and delayed regeneration. Regeneration supports standard 5-cycle programming, switchable co-current/counter-current modes, and delayed overnight regeneration to avoid peak daytime water use disruption. Intelligent volume-triggered regeneration (instead of fixed-timed cycles) optimizes salt and water consumption to eliminate unnecessary waste.
Limitations: Maximum compatible tank size capped at 12 inches, restricting peak flow capacity; unsuitable for extra-large homes with numerous bathrooms and simultaneous water draw points. Supercapacitor power failure memory retains operation timing for 48 hours, with permanent non-volatile storage of all program settings. Spare parts are accessible nationwide in the U.S., enabling maintenance and repair even for units over a decade old.

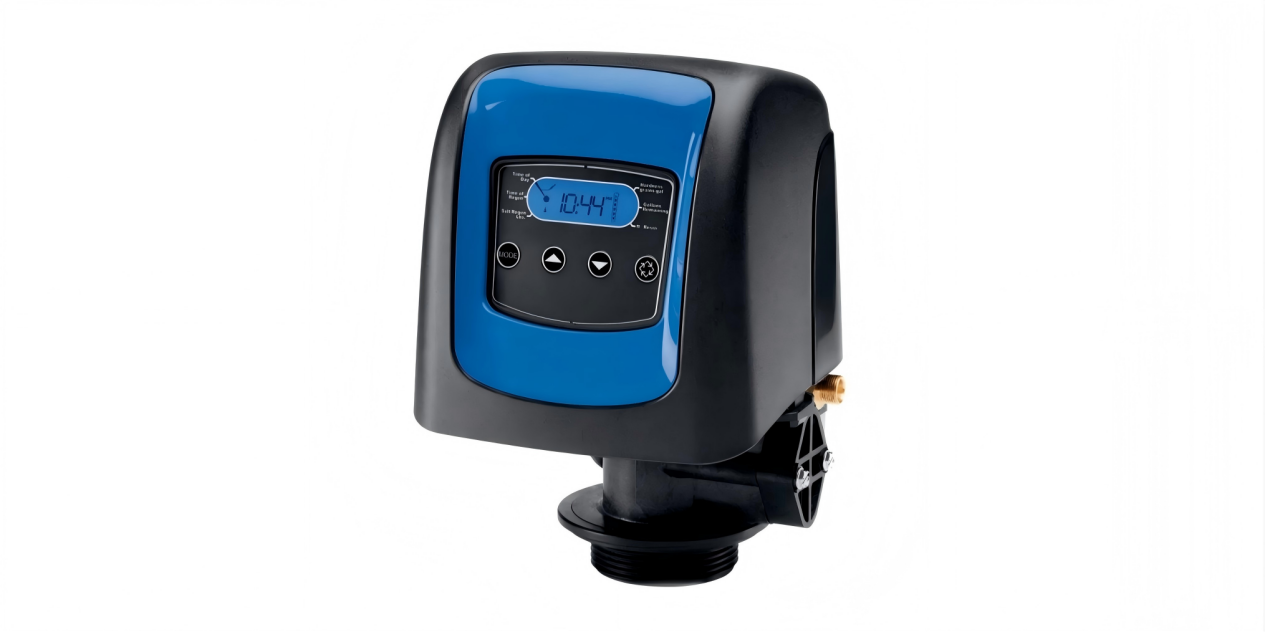

Upgraded flagship Fleck residential model with fully enhanced core hardware, engineered for large homes and high water demand, widely adopted in premium home renovations in recent years.
Optimized straight-through flow channels vs. the 5600SXT; piston drive upgraded to optical positioning, removing traditional mechanical cam transmission for ultra-precise piston alignment, drastically reducing wear, valve jamming and misalignment failures.
Flow parameters: Cv coefficient raised to 5.4, continuous service flow of 21GPM for more stable pressure during multi-outlet simultaneous use. Maximum backwash flow boosted to 17GPM with dual backwash cycles that clean resin beds in two stages to eliminate accumulated contaminants and prevent degraded softening performance.
Maximum compatible tank diameter increased to 16 inches; larger resin capacity extends regeneration intervals and cuts long-term salt/water expenditure. Three controller tiers available:
Base SXT: Backlit LCD screen with identical operation logic to the 5600SXT
XTR2: Color display for visualized real-time operational data
XTRi: WiFi-enabled remote monitoring of equipment status, water consumption and regeneration logs for users prioritizing smart convenience
Limitations: Higher upfront purchase cost than the 5600SXT; unnecessary for small homes with simple water demand. Supercapacitor power failure backup limited to 12 hours, poor adaptability to prolonged power outages.

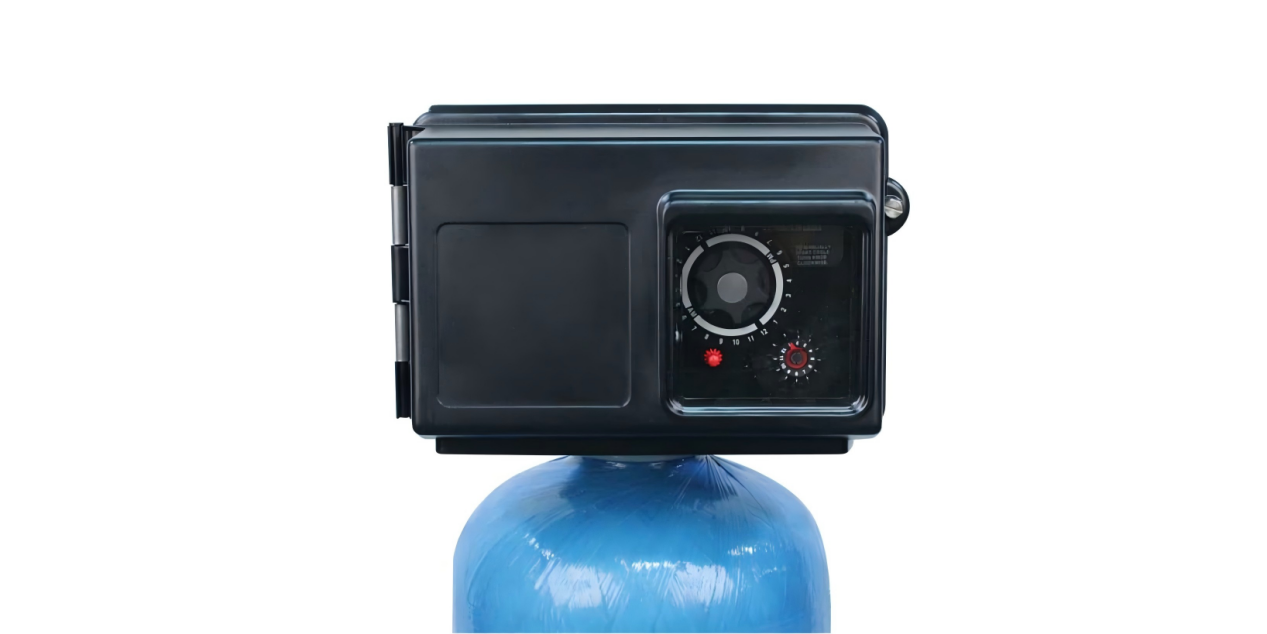

Fleck’s entry-level economical model with streamlined hardware architecture, targeted at small residences, rental properties and low-budget retrofits.
Retains balanced piston construction with identical base materials and sealing components to mid/high-end Fleck models; simplified mechanical drive delivers low failure rates and minimal maintenance costs.
Flow parameters: Cv coefficient = 5.0, continuous service flow of 19GPM, maximum backwash flow 17GPM, compatible with 6–16 inch resin tanks with adequate base water delivery and backwash capacity for daily use.
Streamlined controller functions supporting only two basic regeneration modes: volume-triggered and timed cycles, with customizable regeneration duration and salt dosage, lacking advanced features like delayed off-peak regeneration and dynamic reserve water volume calculation. Flowmeter metering accuracy matches premium Fleck models to guarantee reliable on-demand regeneration.
Limitations: Fewer fine-tuning intelligent adjustment functions than the 5600SXT, mediocre sustained flow performance; not recommended for high-demand households with constant multi-point water draw. Ideal for budget-conscious buyers only requiring foundational limescale reduction.
Clack’s core hardware advantage lies in patented optical positioning piston technology, minimizing valve body wear and long-term failure rates for extended service life, perfect for long-term homeowners seeking reduced maintenance frequency.

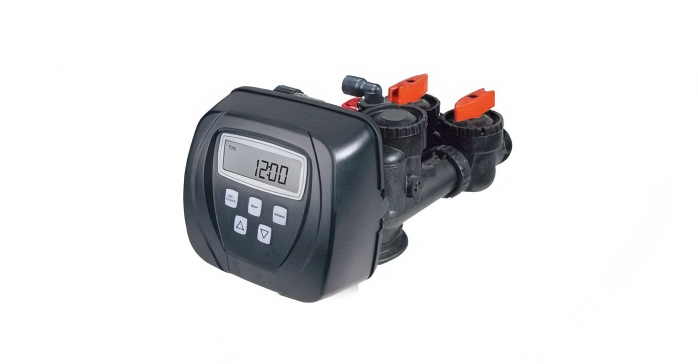

Clack’s standard flagship residential model with 1-inch standard port size, compatible with most regular single-family detached homes, the brand’s highest-volume residential unit.
Fiberglass-reinforced Noryl valve body paired with proprietary non-contact optical positioning balanced pistons. Zero mechanical contact alignment eliminates piston drift and valve jamming over years of operation.
Flow parameters: Cv coefficient = 7.0, far exceeding comparable standard residential valves, continuous service flow of 27GPM with negligible pressure loss, maintaining steady water pressure during multi-outlet simultaneous use. Maximum backwash flow 27GPM, capable of fully flushing resin tanks up to 21 inches, sustaining thorough resin cleaning even in regions with extremely hard water.
Metering system: High-precision turbine sensor with ±5% accuracy; regeneration supports up to 6-cycle programming, freely switchable dual backwash, co-current / counter-current regeneration modes. The controller integrates comprehensive functions including delayed volume regeneration, calendar timed regeneration and differential pressure triggered regeneration to fit diverse usage habits.
Limitations: Higher overall procurement cost than Fleck valves of the same specification, increasing upfront investment.

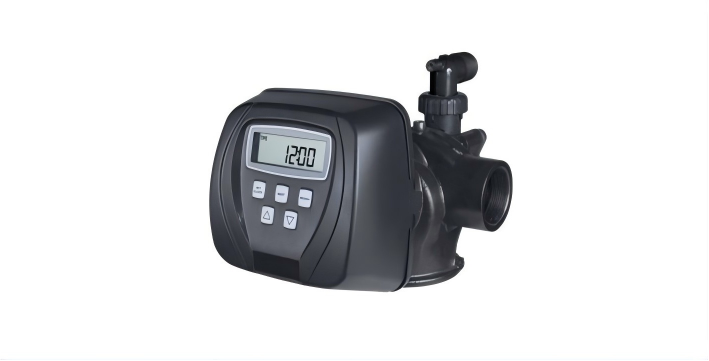

Features 1.25-inch large diameter port with fully widened flow channels, exclusively developed for large homes with high water demand to resolve insufficient water pressure during simultaneous operation of multiple water appliances.
Identical piston structure and positioning technology as WS1; expanded flow bore lifts Cv coefficient to 8.8, continuous service flow of 34GPM, nearly zero water pressure attenuation when all household water outlets run concurrently. Maximum backwash flow 32GPM, backwash Cv coefficient 6.4, thoroughly cleaning large resin tanks and stabilizing softening effect in high-hardness water areas.
Maximum compatible tank diameter: 21 inches, central tube upgraded to 1.32 inches; overall water passing capacity matches large-flow valve bodies. The equipment requires minimal manual intervention during operation, with lower maintenance frequency than standard household valves.
Limitations: Premium pricing; installing it in small homes creates redundant performance with no cost-performance advantage.
A high-flow unit bridging residential and light commercial use, with comprehensively upgraded hardware specifications delivering far superior water passing capacity than ordinary household control valves.
2-inch valve port, Cv coefficient = 22.6, standard continuous service flow of 125GPM, high-flow version reaching 165GPM; extreme water supply capacity eliminates obvious pressure drop no matter how many water outlets open simultaneously. Maximum backwash flow 110GPM, compatible with large resin tanks up to 30 inches, longer regeneration intervals and lower long-term salt & water consumption.
Consistent piston structure and optical positioning technology with residential series, stable continuous operation. Larger equipment size demands extra installation space.
Limitations: High selling price; regular families cannot utilize its full performance, unsuitable for standard small homes. Mainly applicable to extra-large detached villas, large estates and small homestays with heavy water consumption.
All Autotrol equipment adopts ceramic rotary disc valve structure, with low pricing and simplified structures to satisfy basic softening demands, widely used in rigid-demand homes and rental properties.

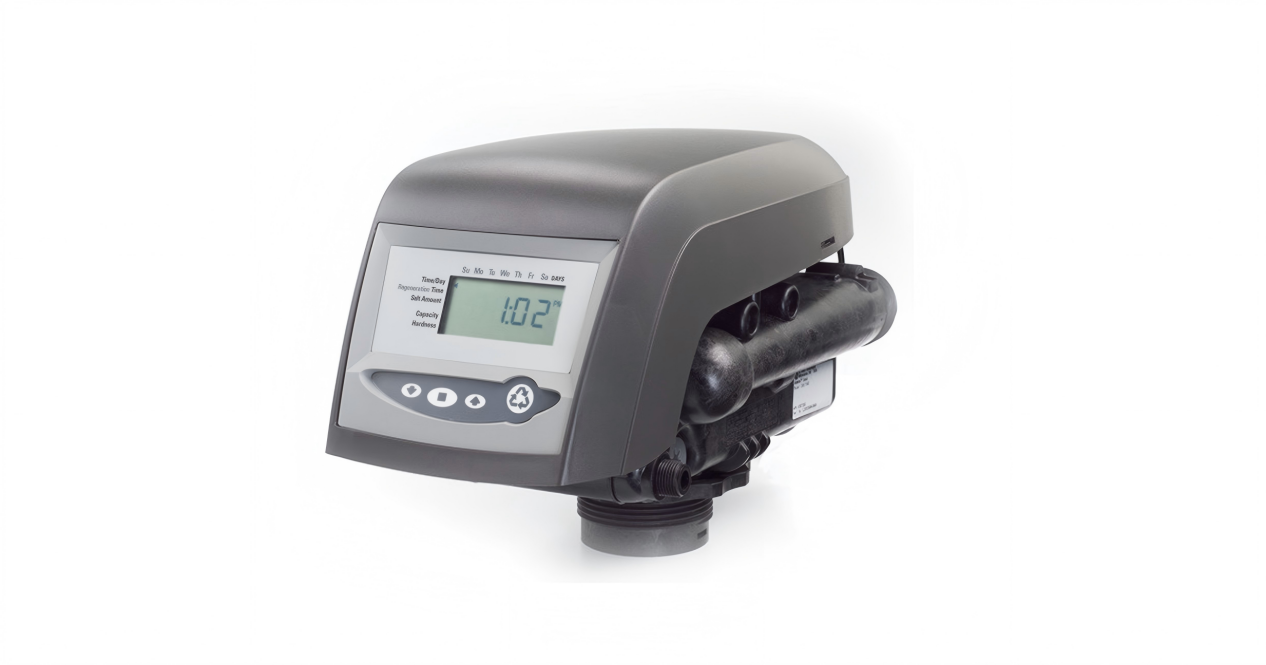

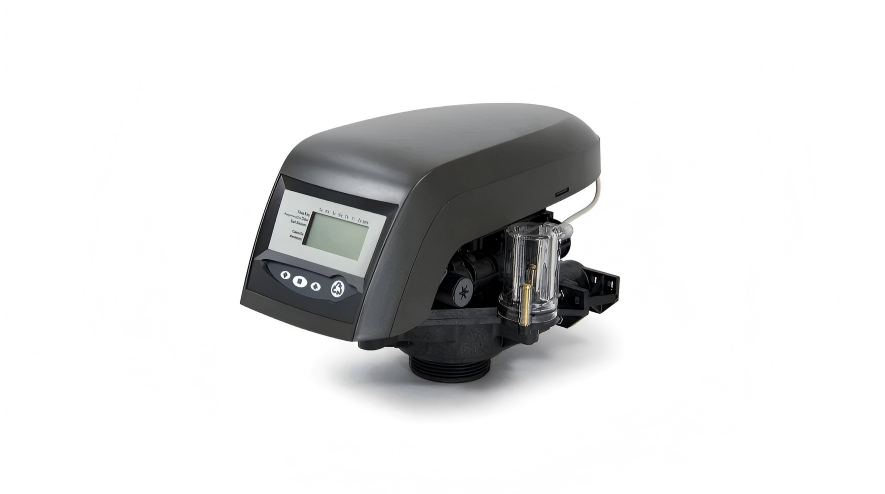

The most commonly used residential Autotrol model, assembled with 255 valve body + Logix 760 controller, complete and easy-to-operate functions fitting most basic household scenarios.
Ceramic rotary disc sealing structure with few moving parts and low initial failure rate. Cv coefficient = 5.7, continuous service flow of 21GPM, stable water pressure under single-point water use, obvious pressure drop when multiple taps run together. Maximum backwash flow 15GPM, compatible with resin tanks within 12 inches to meet basic flushing demands.
Backlit blue LCD controller with intuitive interface for easy setup by new users. Supports frequently-used modes including on-demand volume regeneration, overnight delayed regeneration and timed regeneration, with standard salt & water saving performance for household use. Compact body occupies minimal installation space.
Limitations: Incompatible with large-size resin tanks, unsuitable for large homes and high water consumption scenarios.
Entry-level economical valve body matching basic controllers, streamlined structure for mass low-budget supporting and simple water demand projects.
Ceramic rotary disc structure with superior base flow capacity vs entry-level piston valves; Cv coefficient = 6.5, continuous service flow of 25GPM, maximum backwash flow 20GPM, compatible with tanks up to 14 inches. Extremely streamlined valve body with no complex transmission parts, ultra-low new-unit failure rate, simple daily maintenance and cheap replacement parts.
Matched controller with simplified functions, limited fine adjustment space, only supporting basic regeneration modes without advanced intelligent regulation features. High-flow water supply stability inferior to piston valves of the same grade, only capable of basic limescale removal and appliance protection.
Applicable to small homes and rental renovations with single, simple water demand only requiring foundational softening functions.

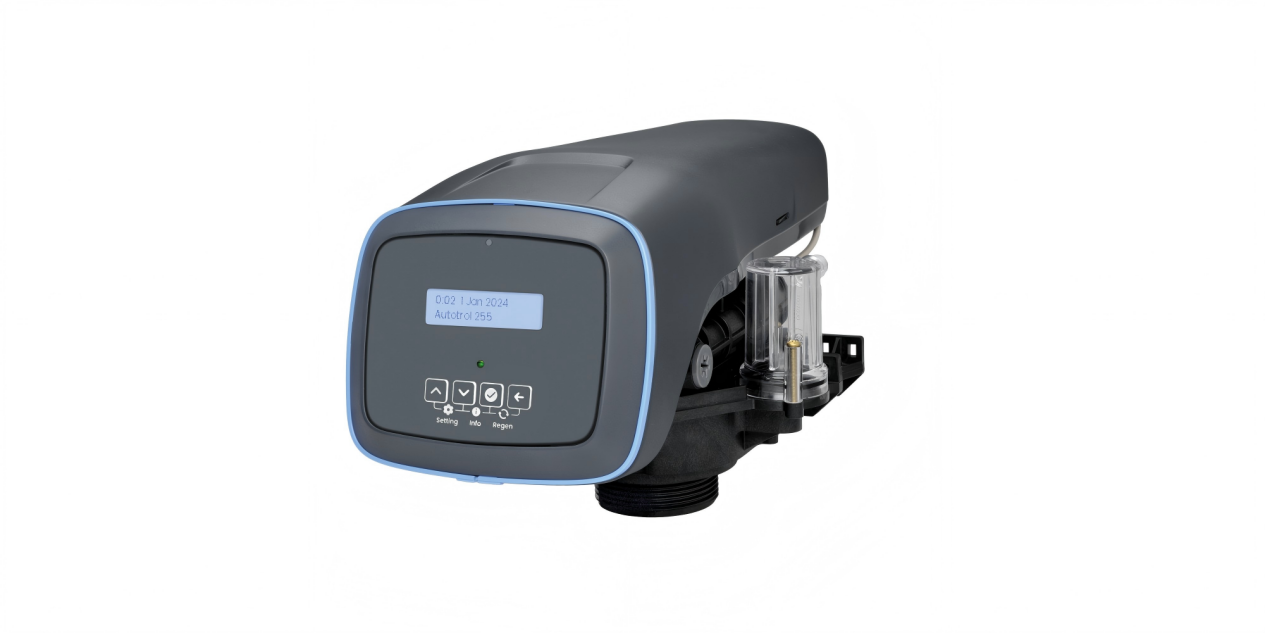

Assembly of 255 valve body + 460i metering controller, the highest-flow domestic valve assembly in Autotrol’s product line, making up the brand’s shortfall for large-home applications, matching budget-limited large residences and light commercial scenarios.
Widened internal flow channels, Cv coefficient = 8.2, continuous service flow of 32GPM, maximum backwash flow 24GPM, compatible with resin tanks within 18 inches. Its water flow and tank compatibility range far exceed 263 and 760 models, while overall procurement price is much lower than equivalent large-flow piston valves from Fleck & Clack.
460i controller integrates dual logic of flow metering + calendar mandatory regeneration, dynamically reserving soft water capacity to prevent hard water breakthrough during peak water usage.
Limitations inherent to ceramic rotary disc design: Under long-term 24-hour high-frequency water use, valve disc wear rate exceeds piston valves, leading to flow attenuation and slight seal leakage after years of operation.
When American homeowners shop for water softeners, they prioritize original Fleck, Clack, Autotrol valve heads mainly due to local installer familiarity and widely available offline spare parts. However, for self-occupied homes, rental properties and renovation projects, many property owners opt for universal alternative valves with stronger compatibility and lower usage barriers. These valve bodies adopt hardware structures benchmarking mainstream U.S. valves, compatible with North American standard water pressure, tank ports and household regeneration logic, delivering nearly identical daily performance as traditional American valves at a lower price with simpler daily maintenance. They are ideal for users who do not rely on exclusive original offline after-sales service and only demand stable softening operation. Currently, the most widely recognized universal alternative valves in North America’s residential market are the Runxin series; the three models below feature optimal household compatibility and stable long-term reputation, with core hardware directly benchmarking traditional American valve heads.

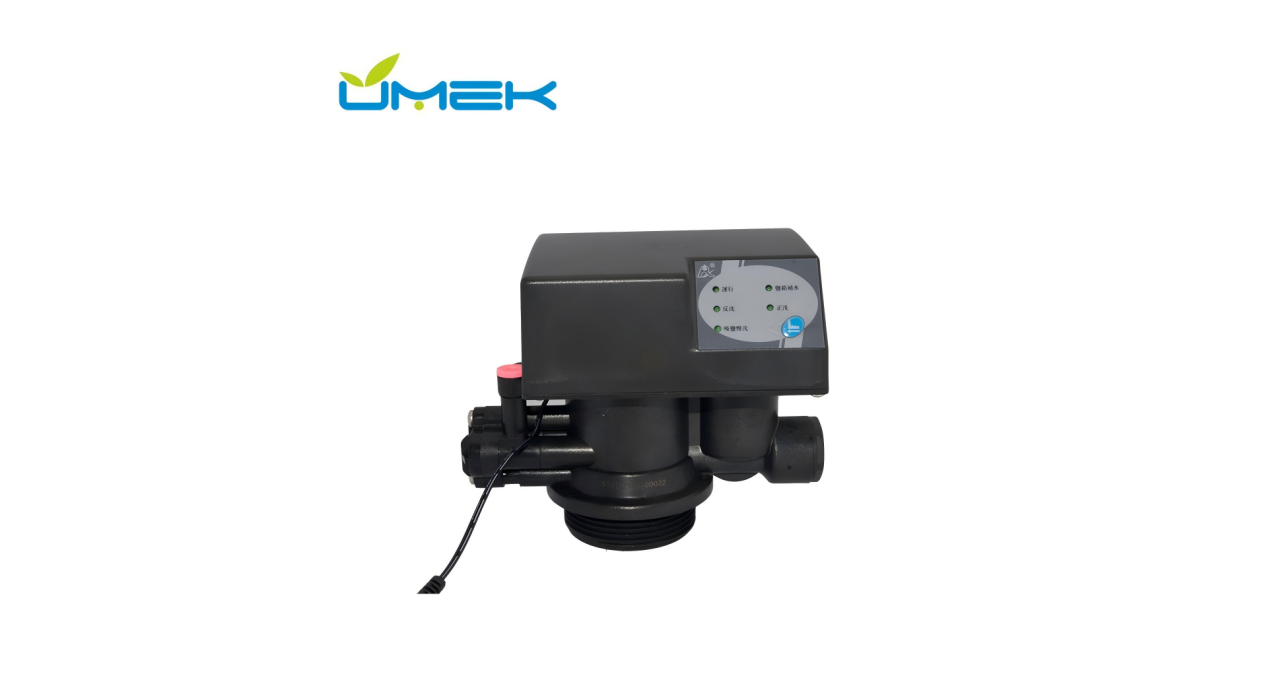

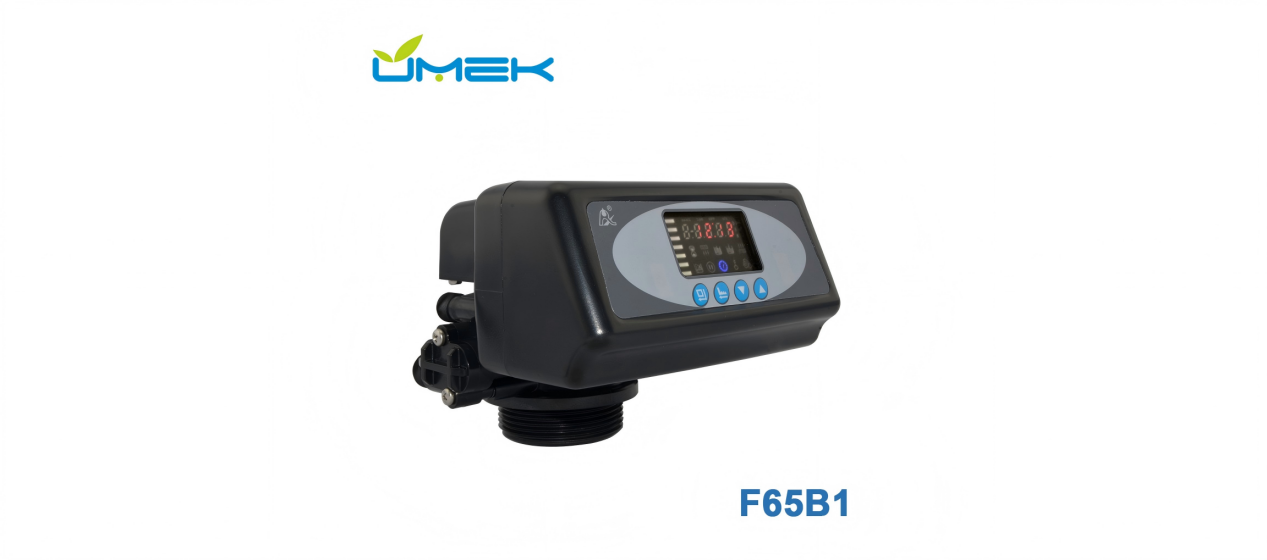

F65B1 adopts piston valve body structure, hardware configuration benchmarking Fleck 5600SXT, the universal valve head best matching standard American residential conditions.
Fiberglass-reinforced engineering plastic valve body, equipped with EPDM sealing rings and wear-coated pistons; Cv coefficient = 5.1, continuous service flow ~20GPM, maximum backwash flow 7GPM, compatible with mainstream 6–12 inch household resin tanks, with water passing and backwash capacity nearly equal to same-price American valves.
Adopts standard North American tank ports, directly fitting household FRP resin tanks without pipeline or structural modification. Built-in turbine flowmeter with ±5% accuracy, supporting overnight delayed regeneration, intelligent on-demand volume regeneration, timed regeneration and other common modes; regeneration duration, salt dosage and flushing parameters are fully customizable, consistent with operation habits of traditional American valves.
Stable daily operation, resistant to frequent false regeneration, valve jamming and water leakage; simple maintenance steps with cheap, easily sourced regular service parts. Perfect for average self-occupied homeowners and rental property owners who only need stable soft water and limescale reduction without high-end smart functions.
F65C is a large-flow domestic piston valve with widened flow channels, hardware specifications benchmarking Fleck 5800.
Valve body Cv coefficient = 6.8, continuous service flow ~26GPM, lower pipeline water pressure loss, no obvious pressure drop when showers, laundry machines and dishwashers run simultaneously. Maximum backwash flow 16GPM with dual backwash cycles, more thorough resin cleaning to avoid impurity accumulation and sustain stable outlet water hardness, ideal for large homes in high-hardness water regions.
Compatible with 16-inch large-size resin tanks, larger soft water storage extends regeneration intervals, long-term salt & water consumption matching premium American valves. Wear-resistant piston structure suffers minimal wear under long-term high-frequency water use, stable operation for years with lower maintenance frequency than entry-level economical valves.
Suitable for self-occupied large homes prioritizing stable water flow and lower overall equipment procurement costs.

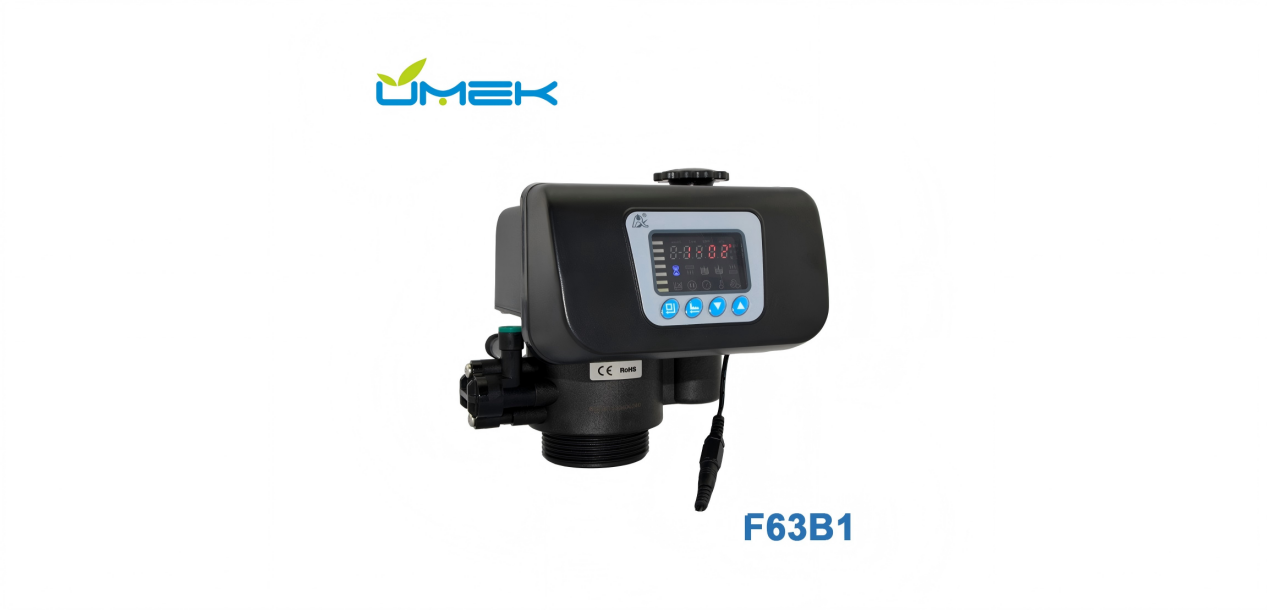

F63B1 is a high-flow universal piston valve catering to extra-large residences and light commercial scenarios, performance benchmarking Clack WS1.25.
Expanded valve body port, Cv coefficient = 8.5, continuous service flow ~33GPM, fully stable water pressure during simultaneous operation of multiple water outlets. Maximum backwash flow 30GPM, fully cleaning large-size resin tanks to prevent softening performance attenuation over long-term use.
Compatible with standard North American pipeline fittings and tank ports, installation & commissioning logic consistent with traditional American valves; local water treatment installers can conduct normal debugging and maintenance. Supports resin tanks up to 21 inches, meeting water demand of extra-large homes and small homestays.
Compared with equivalent high-flow American valve heads, it features lower procurement cost and reliable long-term stability, ideal for property owners with heavy water consumption who want to control equipment budget.
If you prioritize nationwide U.S. after-sales coverage, familiarity among local installers and worry-free long-term maintenance:
Standard-sized homes: Choose Fleck 5600SXT
Large homes with multiple bathrooms & dense water outlets: Choose Fleck 5800 or Clack WS1.25
Premium long-term self-occupied homes prioritizing ultra-low failure rates & durability: Full set of Clack valve heads
If you have a tight budget, small self-occupied home or rental property with only basic softening demand: Autotrol 760, 263 suffice for core limescale prevention needs.
If you prioritize equipment cost-performance and stable basic performance, without reliance on exclusive original offline after-sales: Runxin universal valve heads serve as reliable alternatives
Standard daily household water use: F65B1
Large homes with high water flow demand: F65C
Extra-large homes & high-hardness water regions: F63B1 All three Runxin models adapt to North American household operating conditions, with long-term service performance satisfying the softening demands of nearly all residential families.
