Well Water Reverse Osmosis System for Industrial Water Purification

A reliable well water treatment system is essential for industries that rely on groundwater as their primary water source. Our standard reverse osmosis (RO) system is engineered to remove impurities, protect equipment, and ensure a consistent supply of high-purity water.

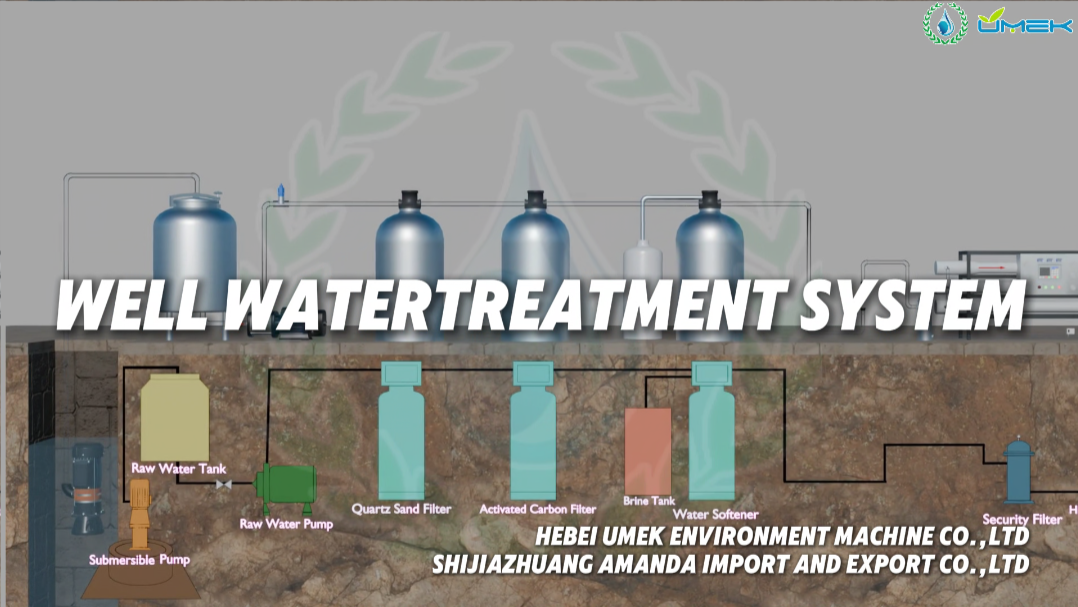

Step 1: Groundwater Extraction and Storage

Well water is drawn from underground using a submersible pump and stored in a raw water tank. A raw water pump pressurizes the feed water into the pretreatment section.

Step 2: Multi-Stage Pretreatment Process

To improve the efficiency and lifespan of the RO membrane, the water undergoes thorough pretreatment filtration:

• Quartz Sand Filter: Removes suspended solids, sediment, and rust.

• Activated Carbon Filter: Eliminates chlorine, odors, and organic compounds that can harm the RO membrane.

• Water Softener: Uses ion exchange to remove calcium and magnesium, preventing scale formation.

Step 3: Reverse Osmosis Filtration

Pre-treated water passes through a security filter to remove fine particles. A high-pressure pump forces the water through the RO membrane, where dissolved salts, heavy metals, and contaminants are separated from the purified water.

The concentrated brine is discharged through a drain, while the permeate (pure water) is collected in a storage tank.

Step 4: Post-Treatment and Sterilization

When needed, the stored pure water is pumped through a UV sterilizer, which kills bacteria and viruses. The final treated water is then delivered to the production line, ready for use in various industrial applications.

Applications of Our Well Water RO Systems

Our RO systems are widely used in:

• Food and Beverage Processing

• Electronics Manufacturing

• Chemical Industries

• Pharmaceutical Water Systems

• Seawater Desalination and Brackish Water Treatment

Why Choose Our Groundwater RO Systems?

• Proven design with stable performance

• Long-lasting RO membranes and components

• Customizable for different water sources and flow rates

• Full support from design to installation and after-sales

Contact Us for Customized RO Solutions

Looking for a groundwater purification system or industrial well water filter? Contact our team for expert consultation and tailored water treatment solutions.
