Views: 1155 Author: Site Editor Publish Time: 2026-04-07 Origin: Site
Faults of American water softeners mostly occur in regeneration abnormalities, insufficiently softened water, salt tank/pipe blockages, water leakage, water pressure/electrical issues. Proper daily maintenance of salt, resin, control head, and pipelines can greatly reduce failures and extend service life. During long-term use, such malfunctions are inevitable, affecting softening performance and user experience. This document summarizes the 10 most common water softener faults, detailing core causes, step-by-step troubleshooting, and repair methods for easy operation even by beginners, ensuring stable operation.
Unqualified water hardness after softening is the most frequent issue.
No or insufficient regenerant salt in the salt tank, failing to complete resin regeneration.
Salt bridging (caking) in the salt tank, preventing normal brine dissolution into the resin tank.
Clogged brine ejector, suction components, or blocked brine lines, impairing brine draw.

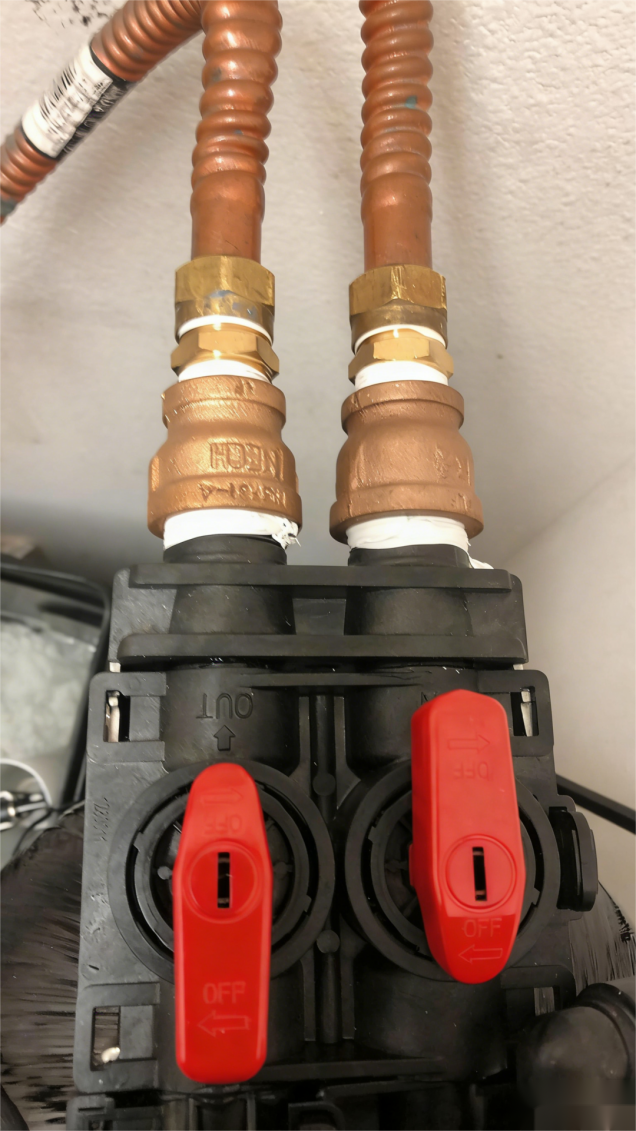

Bypass valve open, allowing raw water to flow directly without softening.
Resin failure or aging, losing ability to absorb calcium and magnesium ions.
Incorrect regeneration cycle settings or excessive inlet water hardness exceeding capacity.
Confirm operating mode: Close the bypass valve to ensure normal softening mode, preventing raw water bypass.
Check salt tank: Ensure salt level is above water; break salt bridges with a clean wooden stick, add warm water to aid dissolution.
Clear key components: Remove and clean the ejector and brine suction strainer with water; inspect brine lines for kinks/blockages.
Manually trigger regeneration: Run a full regeneration cycle, observing brine draw and drainage; recheck ejector/lines if brine draw is poor.
Test hardness and resin: After regeneration, test water hardness. If still hard, resin is likely aged (service life: 5–10 years) – contact professionals for resin replacement.
Failure to draw brine or stagnant salt level disables resin regeneration, reducing softening effect.
Salt bridging blocking brine dissolution and suction.
Clogged ejector or strainer hindering brine intake.
Blocked drain flow control plate disrupting regeneration drainage.
Faulty brine valve failing to open/close properly.
Control head program error, not triggering brine draw.
Break salt bridges and clean sludge: Crush salt bridges, remove salt sludge at the tank bottom.
Clean ejector: Disassemble, flush nozzle and strainer, reinstall securely to avoid leaks.
Inspect drain line: Straighten kinks, clear blockages for smooth drainage.
Reset control head: Power off for 3–5 minutes, restart, manually trigger regeneration to test brine draw.
Abnormal auto-regeneration causes delayed regeneration or waste.
Power/fuse failure cutting off electricity.
Timer or circuit board malfunction, failing to trigger/stop regeneration.
Seized motor unable to drive valve movement.
Pipe blockages stalling regeneration.

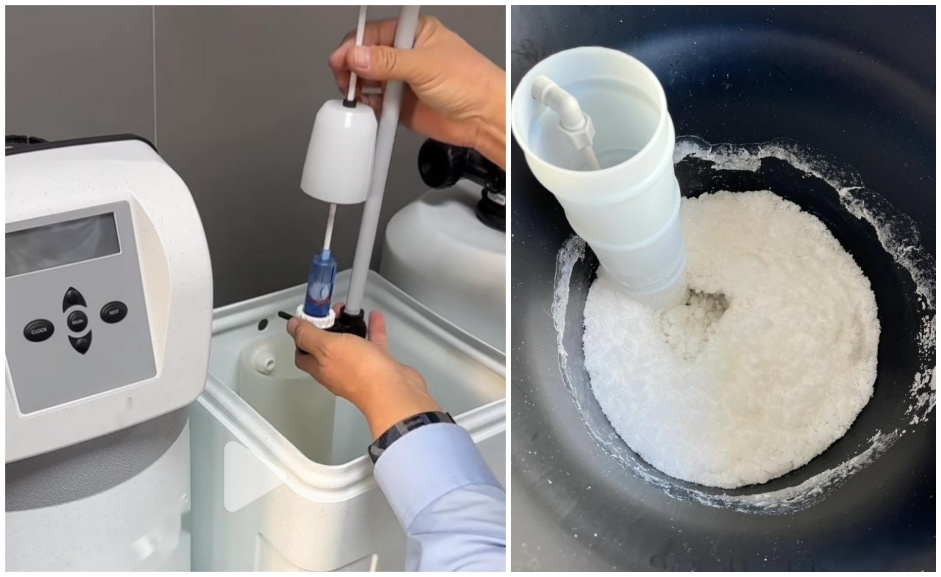

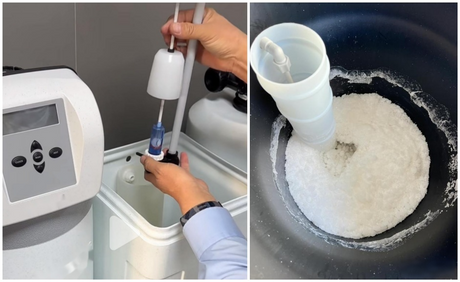

Faulty float switch failing to send level/status signals.
Check power: Inspect plug, switch, wiring; replace blown fuse and restart.
Reset time and cycle: Set correct time, schedule regeneration for 2–4 AM (off-peak hours).
Check motor/valve: Manually regenerate; replace motor/circuit board if inoperative.
Inspect salt tank float: Clean stuck/faulty float switch, adjust or replace if needed.
Abnormally high water level risks overflow and equipment damage.
Clogged drain flow control plate causing poor drainage.
Stuck inlet/brine valve failing to close, causing continuous water inflow.
Failed float switch unable to regulate water level.
Control head program error leading to over-filling.
Clean components: Flush drain flow control plate and inlet strainer.
Adjust float switch: Fix stuck/damaged float, ensure proper level control.
Adjust settings or replace valves: Shorten fill time; replace faulty stuck valves.
Salty water results from incomplete rinsing or valve failure.
Insufficient post-regeneration rinse leaving brine residue.
Leaky brine valve allowing continuous brine seepage.
Control head program error with insufficient rinse time.
Extend rinse: Drain water for 5–10 minutes after regeneration to flush residual brine.
Inspect valves: Clean clogged/leaky brine/check valves; replace damaged parts.
Adjust settings: Lengthen quick rinse time in the control menu.
Leakage commonly occurs at joints, seals, and components.
Pipe joints, O-rings, control valves, tanks, salt tank.
Joint leaks: Tighten connectors gently (avoid over-tightening plastic); replace worn seals/PTFE tape.
Valve/tank leaks: Replace damaged seals; repair or replace cracked tanks.
Freeze damage: Insulate in winter; replace cracked parts and reinforce insulation.
Insufficient pressure/flow disrupts daily water use.
Clogged inlet/outlet strainers restricting flow.
Contaminated resin blocking flow paths and reducing capacity.
Kinked/reduced pipes impeding water flow.
Clogged control valve passages.
Clean strainers/valves: Flush inlet/outlet and control valve strainers.
Treat resin: Backwash or chemically rejuvenate resin; replace severely contaminated resin.
Inspect pipes: Straighten kinks, clear blockages for unobstructed flow.
Discolored, smelly water links to contamination and resin aging.
Resin fouled by iron/manganese causing yellow water.
Bacterial growth in salt tank producing odors.
Rusty pipelines contaminating water.
Raw water containing sediment/organics without filtration.
Sanitize salt tank: Clean every 3–6 months with bleach solution, run 2 regenerations, flush thoroughly.
Remove iron from resin: Use iron remover; replace heavily fouled resin.
Install pre-filter: Add a pre-filter at the inlet to trap sediment, organics, and iron/manganese.
Continuous drainage wastes water.
Control valve failure to reset, ending drainage improperly.
Power outage during regeneration causing program disorder.
Reset system: Unplug power for 3–5 minutes, restart to reset the valve.
Stabilize power: Ensure stable supply; install a voltage stabilizer if frequent outages occur.
No display disables operation.
Power outage or faulty adapter cutting power.
Damaged circuit board.
Check power: Test the outlet; replace defective adapter with a matching one.
Contact service: Replace circuit board via professional after-sales if adapter replacement fails.
Follow a layered, scheduled maintenance routine for core components to prevent failures and extend lifespan.

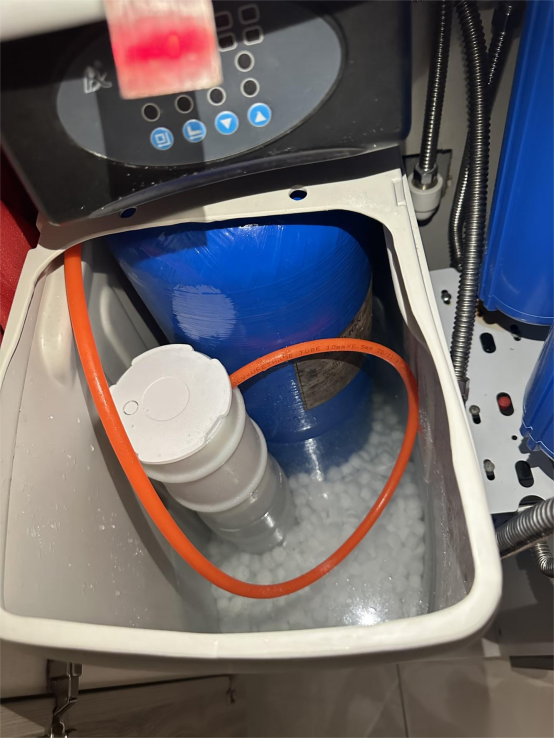

Salt tank care: Maintain salt level 10–15 cm above water; use only special water softener salt (no iodized salt). Break salt bridges, clean sludge to prevent clogging.
Control head check: Verify time and regeneration settings; manually run one regeneration to inspect smooth operation. Wipe dust, keep the area dry and ventilated.
Deep salt tank cleaning: Empty salt, wash with warm water, sanitize, dry, and refill with new salt.
Pipe/valve inspection: Tighten loose joints; clean inlet/outlet and ejector strainers; ensure drain lines are clear.
Resin/tank care: Backwash to remove suspended solids; clean iron-fouled resin with citric acid or rejuvenator. Inspect for damage/leaks.
Mechanical/electrical check: Ensure grounded power; use a stabilizer for voltage fluctuations. Clean resin with professional cleaner semi-annually/annually.
Full disassembly and cleaning of control head, brine valve, ejector; resin capacity testing and replacement if needed; calibration of regeneration cycles and salt dosage.
If unused for over a week, keep resin soaked in brine to prevent bacteria and drying. Run a full regeneration before reuse. Avoid direct sunlight; maintain operating temperature 1–49°C to prevent freezing.
Pentair: PE series – focus on control head motor, brine valve, ejector, and seals; clean regularly and replace worn parts.
EcoWater: Dry salt tank design – keep tank clean, clear strainers, verify program settings to avoid salt bridging and clogging.
Culligan: Medal series – watch for E1 motor lock and sensor faults; lubricate motor, check limit switches, repair faulty parts promptly.
Contact a certified water treatment technician if:
Control head motor/circuit board is damaged without replacement parts.
Core parts (resin tank, distributor, valve body) are broken.
Frequent regeneration or persistent hard water after self-troubleshooting.
Gas/electrical hazards or complex pipe modifications are needed.
Is power supply normal? Is control head time accurate?
Is bypass valve closed?
Is there enough salt? Any salt bridging?
Does regeneration draw brine, backwash, and drain properly?
Any leaks or blockages in inlet/outlet/drain lines?
Does water hardness improve after manual regeneration?
Note: Follow the user manual for model-specific operations. Contact authorized dealers for professional maintenance to ensure optimal soft water quality.
