Views: 4155 Author: Site Editor Publish Time: 2026-04-16 Origin: Site
In the United States, a water softener is no longer an optional home appliance; it is a basic supporting facility that improves living quality and protects all water-using equipment in the house. Especially for new residential construction or whole-house renovation projects, the choice of installation timing directly affects later use effects, installation costs, and overall aesthetics. Combining U.S. residential building codes and practical usage scenarios, this article clearly sorts out the best installation plan for you.

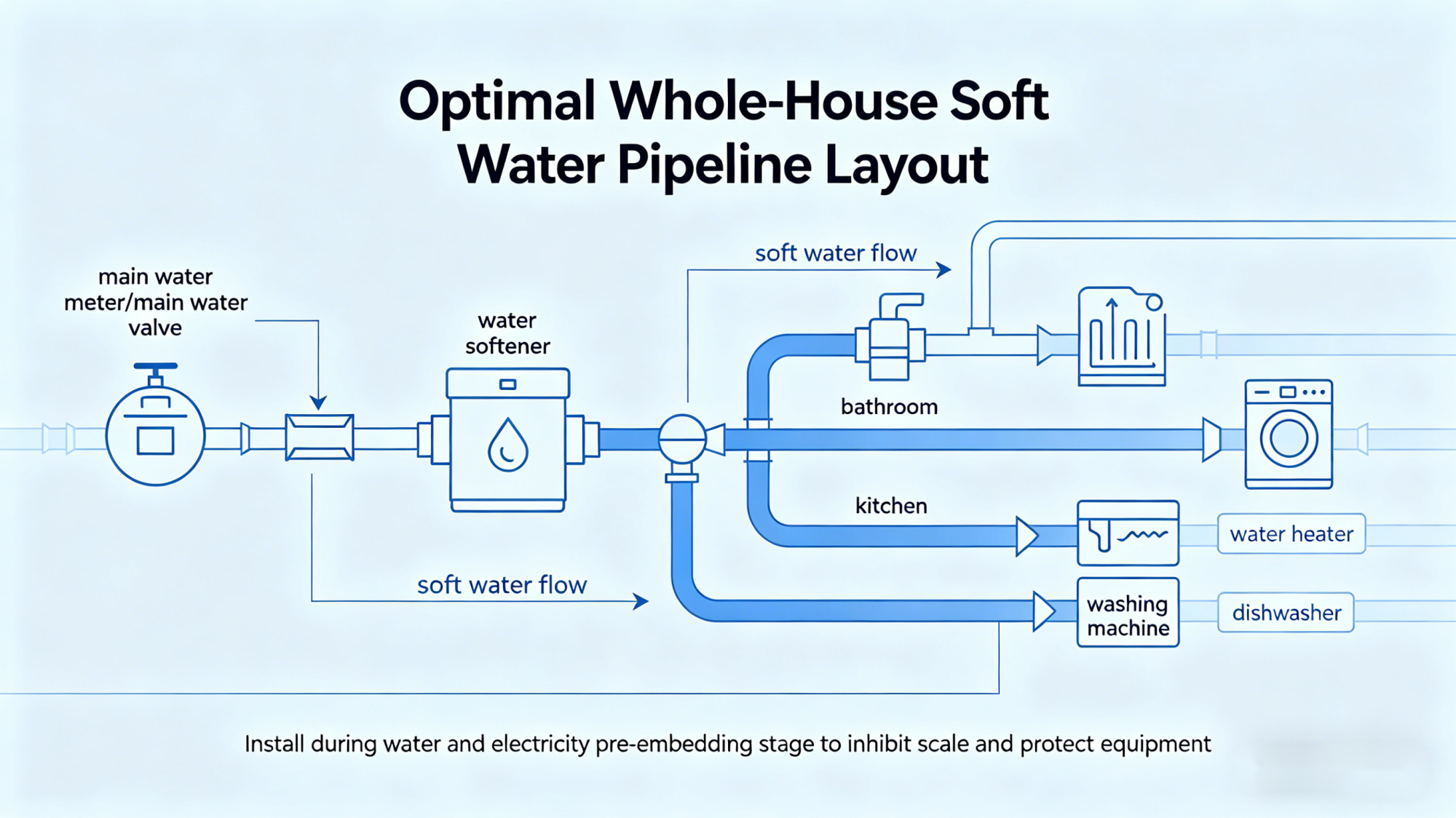

Optimal pipeline layout for true whole-house soft water
The standard installation position of a water softener is after the main water meter/main water valve at the entry point. During the pre-embedding stage of water and electricity, the plumber can directly connect the water softener in series to the main water supply pipeline, ensuring that all water points such as bathrooms, kitchens, water heaters, washing machines, and dishwashers are supplied with soft water. This comprehensively inhibits scale formation and protects pipelines and equipment.
If retrofitted after renovation, it is often difficult to find a suitable main water pipe connection point. Forced construction requires chiseling walls and breaking floors, which is not only costly but also difficult to achieve complete whole-house coverage.

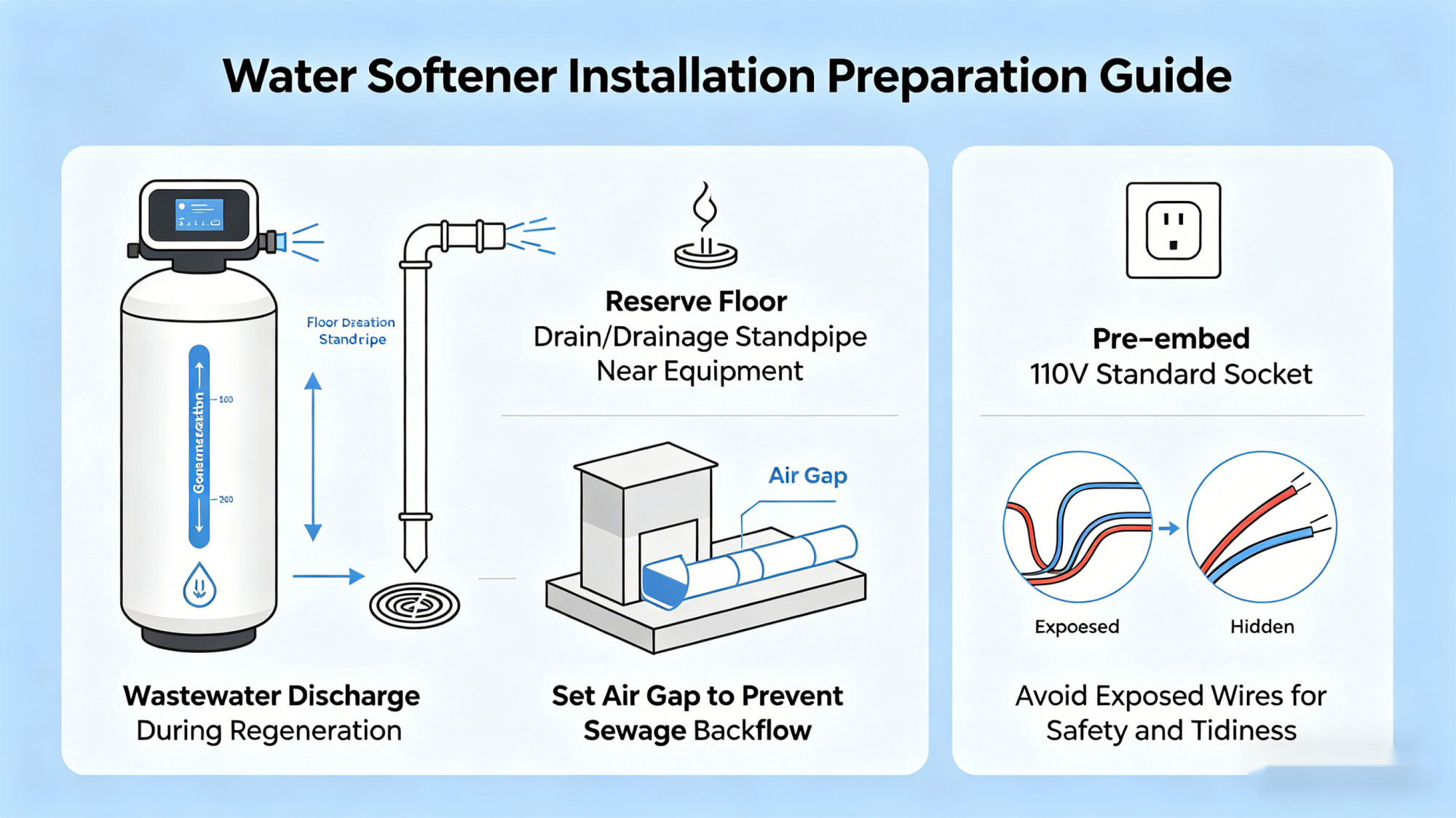

Pre-reserve drainage and power supply in compliance with local plumbing codes
Water softeners need to discharge wastewater during regeneration and flushing. During renovation, a floor drain or vertical drainage pipe can be reserved near the equipment location, and an air gap can be set in accordance with codes to prevent sewage backflow, meeting local plumbing code requirements. Meanwhile, electronic control valve water softeners require a 110V standard power supply. Pre-embedding sockets avoids later exposed wiring, which is both safe and tidy.
Reasonable space planning without affecting home aesthetics
Traditional water softeners include components such as a resin tank and a brine tank, with a moderate volume. The installation location can be planned in advance during renovation, commonly in the garage, utility room, or basement, without occupying living space. Pipelines can be hidden for a neater and more unified overall look.
Lower overall cost and increased home added value
Reserving pipelines synchronously during renovation only incurs a small additional pre-embedding cost; later retrofitting requires high demolition, modification, and labor costs, usually several times higher. In addition, new houses with a standard water softening system are more competitive in resale, regarded as a built-in function of the house, significantly increasing property value.
If the house is completed without reserved pipelines, later installation is retrofitting and faces many restrictions:
Limited installation location: mostly can only be placed in the corner of the garage, laundry room, or outdoors, making it hard to choose the optimal position.
Limited coverage: often only partial water supply is achieved, failing to fully protect water heaters, toilets, shower heads, and other equipment.
Reduced aesthetics: most pipelines are exposed with messy routing, affecting the overall look.
Complex construction: requires professional plumbers for on-site modification, with a sharp increase in labor and time costs.
U.S. house structures are different from those in China, so special attention should be paid to the following when installing water softeners:

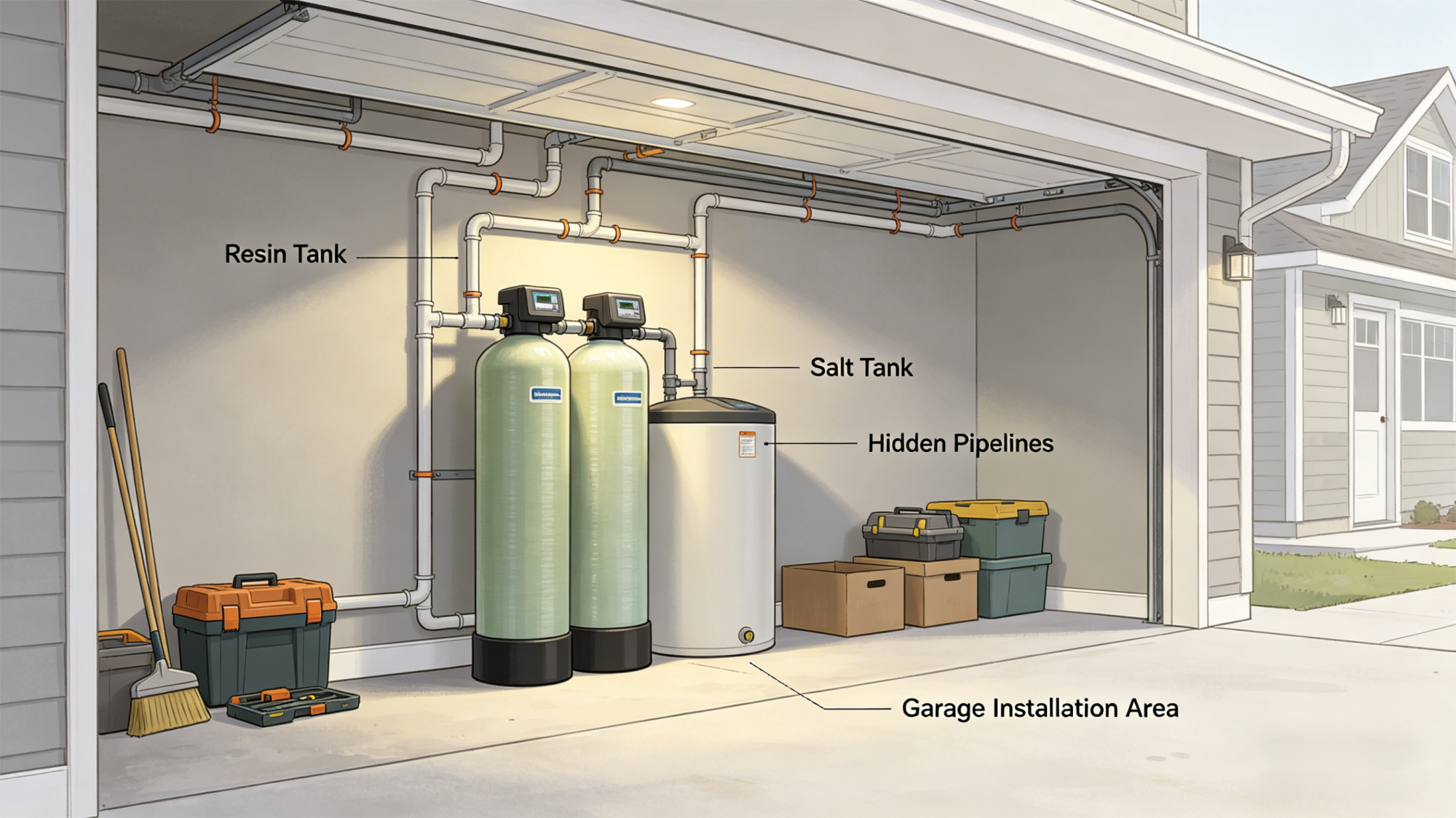

Garage: the most mainstream choice in the U.S. Convenient for connecting water and electricity, no occupation of living space, and usually equipped with a floor drain.
Utility room: the best location with a clean environment.
Basement: common in northern states, but attention should be paid to moisture protection.
If you live in cold areas such as Michigan and Minnesota and install the machine in a non-heated area, make sure the water softener has an anti-freeze mode, or keep the indoor temperature in winter to prevent the resin tank from cracking due to freezing.
In accordance with local plumbing codes, installation must include a bypass valve to ensure uninterrupted water supply for the whole house during equipment maintenance. In addition, drain pipes must use an air gap to prevent sewage backflow from contaminating the water source.
Best timing: pre-embedding stage of water and electricity
Reserve pipelines for the water softener before wall sealing and tile laying. The equipment itself can be installed at the final stage of renovation before check-in to avoid contamination and collision from construction dust.
Essential configuration: bypass valve
A bypass valve must be installed to ensure normal water supply for the whole house during maintenance and flushing of the water softener, which is a general specification for U.S. residential installation.
Installation environment and anti-freeze requirements
Prioritize locations near the main water pipe with drainage and power supply, such as garages and utility rooms.

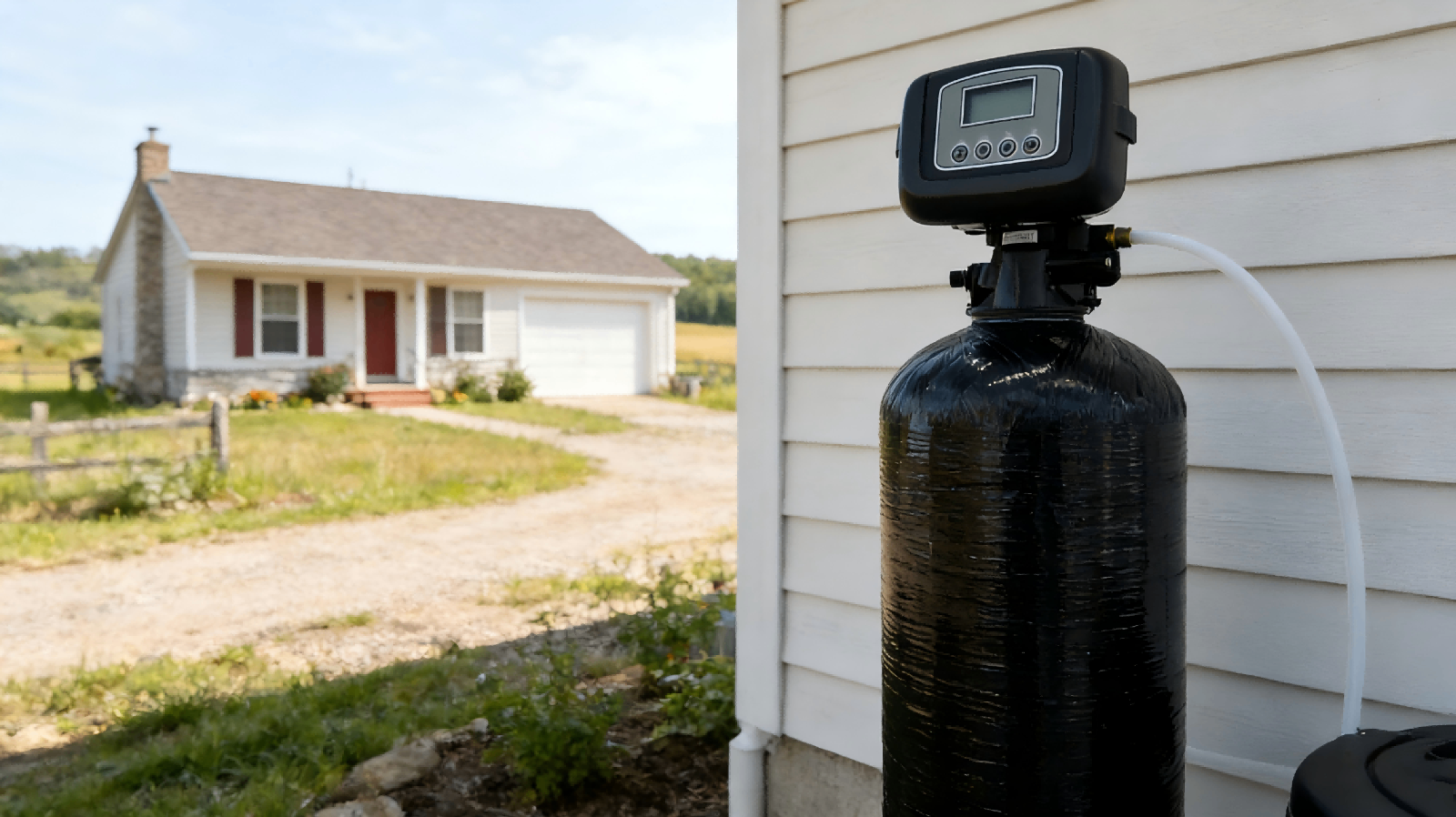

In cold northern areas, if installed in a non-heated garage, choose a model with anti-freeze function or ensure the ambient temperature is above freezing point to prevent tank cracking due to freezing.
Early water quality testing
For municipal water supply, you can refer to the local water authority's water quality report; for private well water, professional sampling is recommended to test indicators such as hardness, iron, and manganese for accurate model selection. The mainstream solution in the U.S. is salt-based ion exchange water softeners, with stable and reliable treatment effects.
New house/whole-house renovation: Be sure to reserve pipelines, drainage, and power supply for the water softener during the water and electricity stage, and install the equipment at the final stage. This is the optimal solution with the lowest cost, best effect, and most beautiful appearance.
Occupied old house: Evaluate the garage space and hire a professional plumber for retrofitting. Although the cost is slightly higher, it is still worthwhile to protect expensive water-using home appliances.
The installation timing of a water softener determines the long-term use experience and home maintenance costs. Planning a water softening system in advance when decorating a new house in the U.S. is a wise choice that balances practicality, aesthetics, and cost performance.
A water softener not only improves skin and hair quality but also acts as an "invisible guardian" protecting all water-using home appliances in the house. Choosing the right installation time allows your new home to enjoy high-quality water experience from day one.
