Views: 9422 Author: Site Editor Publish Time: 2026-07-27 Origin: Site
Most shoppers are misled by confusing marketing claims when shopping for water softening equipment. Many make purchasing decisions based solely on appearance, footprint, and ease of maintenance, assuming the four mainstream options are interchangeable products that differ only in looks and running costs. In reality, integrated, split-type, dual-tank and salt-free water softeners operate on fundamentally different technologies, and are designed for entirely different usage scenarios, water quality conditions and living arrangements. Choosing the wrong model will almost always lead to unsatisfactory softening, interrupted water supply, inconvenient maintenance, or higher long-term operating costs.
In the residential water treatment market, whole-house water softening equipment falls into two distinct technical categories: genuine ion exchange softening systems, and scale-inhibiting water conditioners – a distinction widely misunderstood by consumers. In mature water treatment markets, it is common knowledge that salt-based ion exchange systems are the only true water softeners, capable of eliminating hard water at the source, while salt-free devices are only supplementary scale inhibitors and cannot actually soften water. Many sellers deliberately blur this distinction, which is the primary reason most buyers end up with the wrong product.
The first step in choosing the right system is understanding the difference between genuine softening and so-called "salt-free softening", to avoid falling for misleading marketing.
Integrated, split-type and dual-tank models all share the same core technology: cation exchange resin, which softens water through an ion displacement reaction.

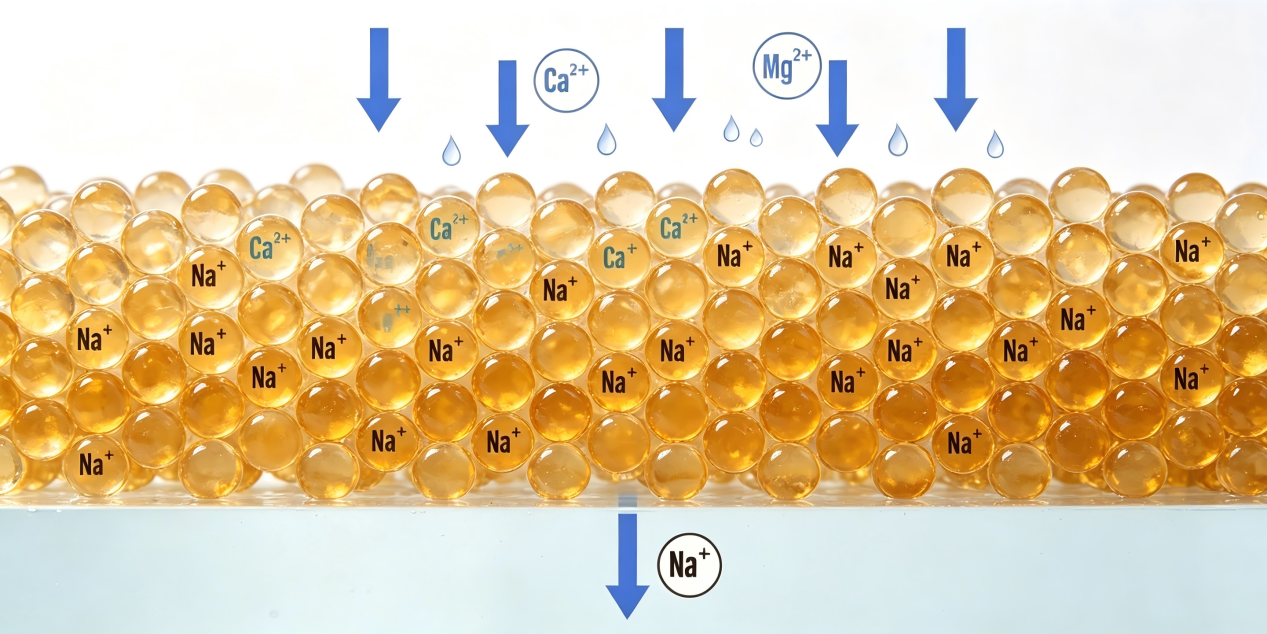

Core mechanism: As raw water flows through the resin bed, sodium ions bound to the resin beads exchange with calcium and magnesium hardness ions in the water. The calcium and magnesium ions become trapped in the resin, while sodium ions are released into the water, reducing water hardness at the source.
Practical effects: Treated water has an extremely low residual hardness level. It delivers a smooth feel during bathing, creates richer lather with soaps and detergents, leaves laundry softer and less stiff, eliminates water spots on glass fixtures, and fully protects pipes, water heaters, underfloor heating systems and other water-using appliances.
Operation cycle: Once the resin becomes saturated with hardness ions, it is flushed with concentrated brine to regenerate its exchange capacity, and the cycle repeats. The regeneration process discharges salty wastewater, and requires a connection to a drain.
Difference between the three designs: They differ only in tank configuration, operation mode, water supply continuity and maximum flow capacity. With equivalent specifications, their basic softening performance is essentially identical.
No salt-free device on the market qualifies as a standard water softener. Their proper industry classification is scale inhibitor or water conditioner.
Core mechanism: They do not remove calcium or magnesium ions, nor do they change the hardness value of the water. Instead, they alter the crystal structure of calcium and magnesium deposits through physical crystallization or chemical slow-release methods, so that scale cannot adhere firmly to pipe walls and appliance interiors.
Practical effects: They only slow the formation of new scale, and cannot dissolve existing, built-up scale deposits inside pipes and water heaters. They do not produce the signature smooth feel of softened water, do not eliminate soap scum during washing, and provide minimal improvement for laundry feel or skin comfort.
Operation characteristics: Most models require no salt, produce no regeneration wastewater, and some purely physical designs require no electrical power at all, making installation very simple.
Common misconception: Sellers often market them as "maintenance-free water softeners", conflating scale inhibition with actual softening – a classic marketing misrepresentation.
All three ion exchange designs use the same core softening principle, but differ significantly in structure, user experience and suitable applications. Below is a detailed breakdown across six key dimensions.

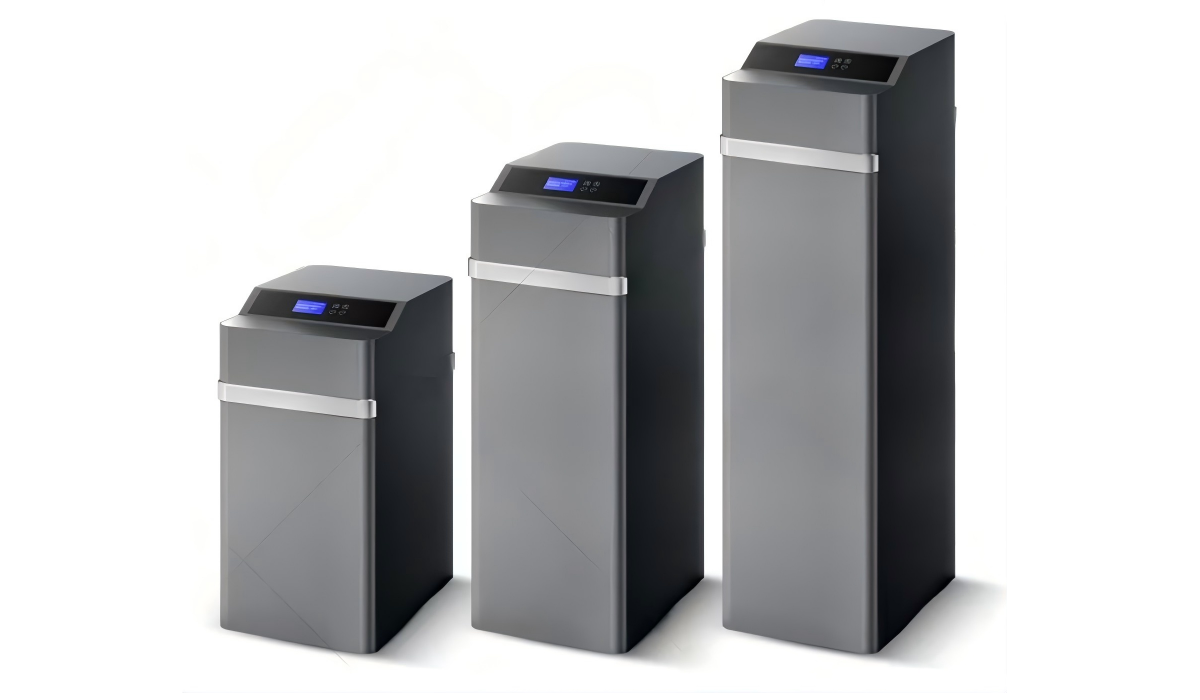

The resin tank and brine tank are housed inside a single outer casing, forming one standalone unit.
Installation advantages: Fewer plumbing connections, simpler installation; compact, unified footprint looks neat in well-defined installation spaces, with a clean, integrated appearance.
Installation limitations: Fixed overall dimensions impose strict height and width requirements on the installation space. They are difficult to fit in irregular or low cabinets, forcing buyers to choose miniaturized models with reduced resin capacity.

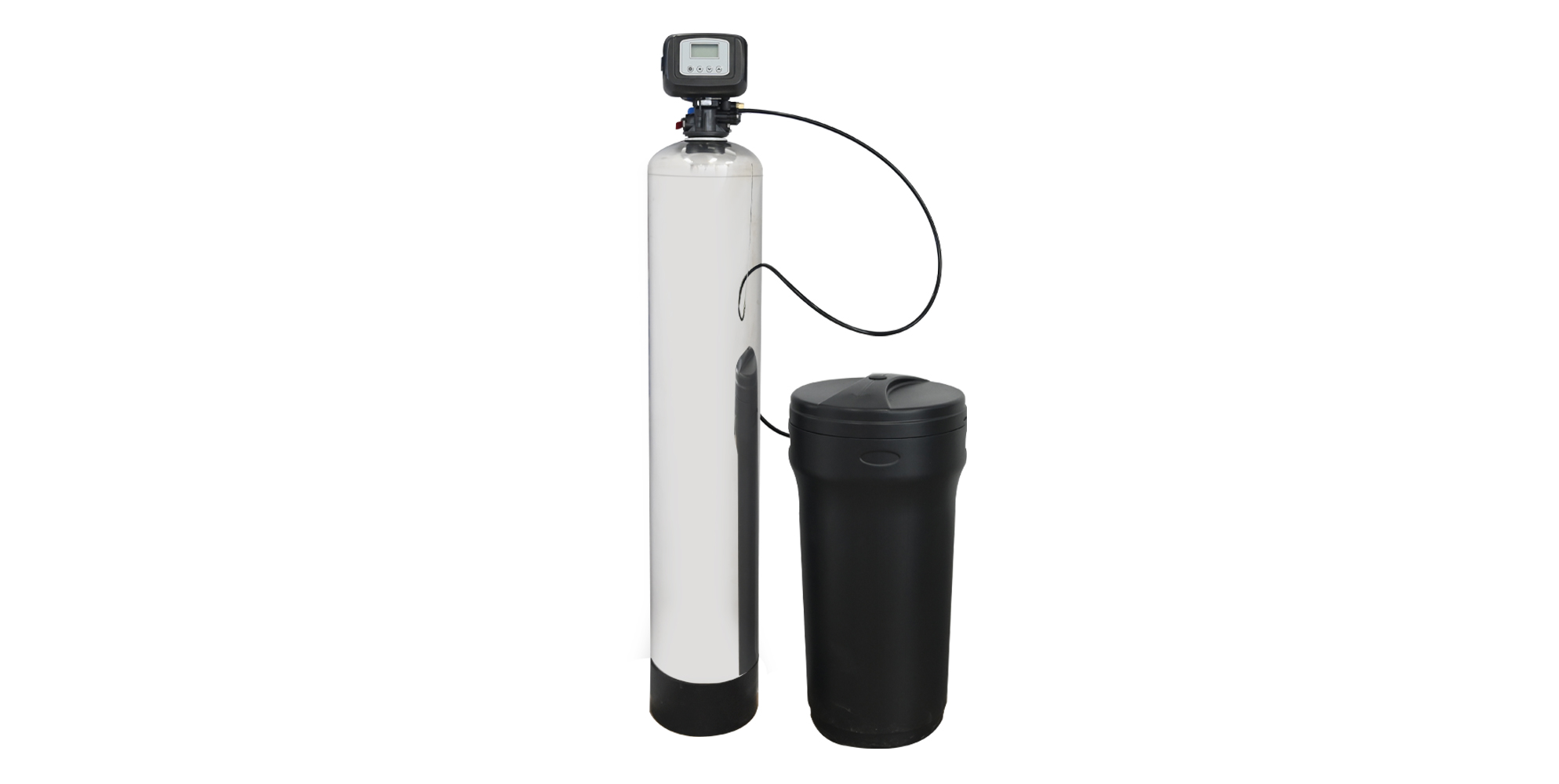

The resin tank and brine tank are two separate units, connected by dedicated plumbing.
Installation advantages: The two tanks can be positioned offset from one another (front-to-back or side-to-side) to fit narrow, irregular under-sink corners, offering greater spatial flexibility. The separate brine tank has a wide opening for easy day-to-day operation.
Installation limitations: Separate placement looks somewhat less tidy. In perfectly square, regular cabinet spaces, the total footprint is actually larger than an integrated model. More pipe connections mean more fittings, and a slightly higher long-term risk of leaks.

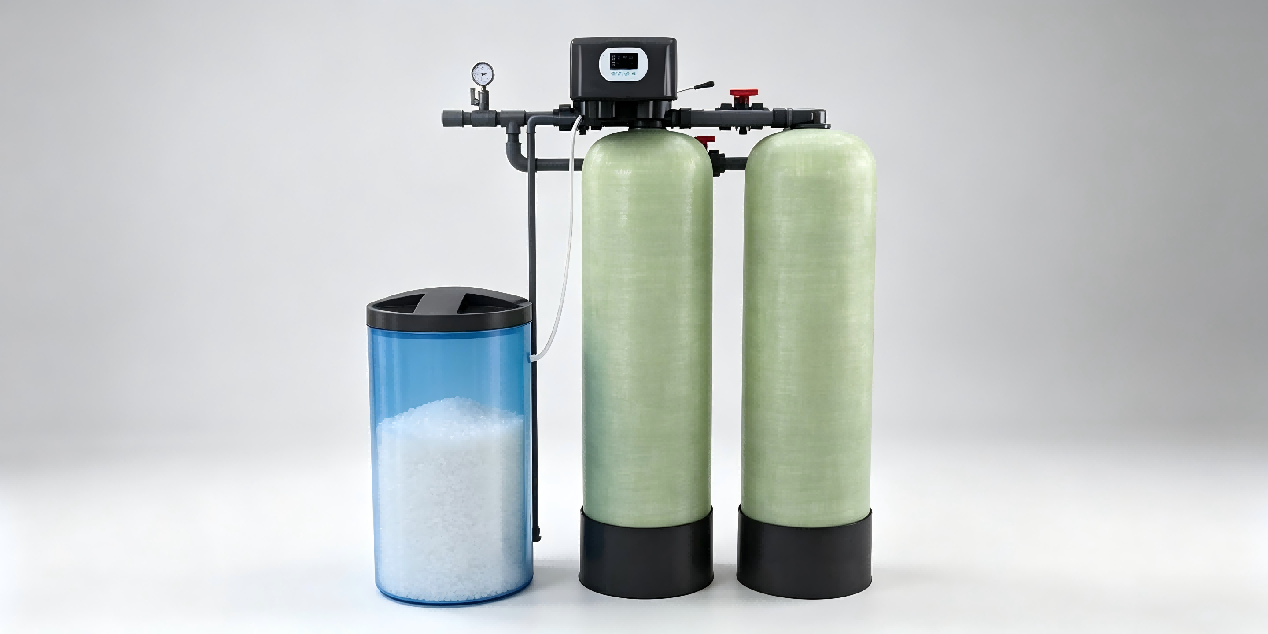

Consist of two resin tanks paired with one shared large-capacity brine tank, controlled by a dedicated valve that automatically switches operation between tanks.
Installation advantages: Alternating tank operation delivers extremely stable water supply; the large shared brine tank extends the interval between salt refills.
Installation limitations: The largest physical footprint of the three salt-based designs. They almost never fit under a standard residential kitchen sink, and are typically installed in utility rooms, garages or storage areas. They also require more advance planning for water inlet and drain connections; retrofitting them in homes not pre-plumbed for the equipment is complex and costly.
Water supply continuity is the most impactful user-experience difference between the three designs.
Both single-tank designs operate on the same cycle: once the resin is saturated, the system runs an automatic regeneration cycle. During regeneration, the resin tank is in flush mode and cannot produce soft water, so the entire home receives untreated hard water.
Typical regeneration duration: ranges from tens of minutes to one and a half hours.
Common workaround: Most households schedule regeneration for the early morning off-peak hours, which generally avoids disruption to normal use.
Limitation: Larger households, homes with high daytime water use, or residents who bathe late at night may encounter hard water during regeneration. They cannot provide 24-hour uninterrupted soft water.
Alternating dual-tank operation is their defining advantage: one tank produces soft water while the other regenerates or stands by, with automatic, seamless switching between them.
Core feature: 24-hour uninterrupted soft water supply, with no hard water gaps at any time of day.
Additional benefit: Most come standard with counter-current regeneration, which flushes the resin with softened water for a more thorough clean, slower resin degradation, and higher salt efficiency.
With equivalent specifications, their baseline softening performance is identical. Both reduce inlet hardness to very low levels, sufficient for daily bathing, laundry and cleaning.
Key difference: Split-type models can be configured with larger resin tanks, providing more headroom for high-hardness source water or simultaneous use at multiple draw points. Integrated models have less room for resin tank upsizing due to their fixed outer casing dimensions.
Peak flow performance: At very high flow rates (multiple outlets open at once), shorter contact time between water and resin can cause a slight drop in softening performance. Larger resin tanks maintain stability better.
With a larger total resin volume and longer water-resin contact time, they maintain far more stable performance at high flow rates than single-tank models.
Peak flow performance: Soft water hardness remains consistent even when multiple bathrooms, bathtubs and washing machines run simultaneously, with no drop-off in performance at higher flow rates.
Clarification of a common myth: Dual-tank design does not double resin service life, and resin does not last 8–10 years as standard. Standard residential cation exchange resin lasts 3–5 years; premium imported resin with counter-current regeneration tops out at 6–7 years. Dual tanks simply spread wear more evenly across two beds, but total replacement cost remains higher than for a single-tank system.
Salt refilling: The brine tank is enclosed inside the casing, with a typically narrow fill opening. Pouring salt can be messy, and cleaning sediment and sludge from the bottom of the tank requires disassembling the outer casing, which is inconvenient.
Common issues: Wet-brine-tank designs cannot fully drain standing water. Over time, salt cakes easily in the humid environment, and can even develop odors. Dry-brine-tank designs perform better but sit at a higher price point.
Consumable costs: Resin replacement cycle matches equivalent split-type models. Miniaturized models actually have higher salt consumption and resin wear due to more frequent regeneration, so their long-term running costs are not low.
Salt refilling: The separate brine tank has a wide opening, making salt top-ups and sediment cleaning straightforward. Most models support dry-brine-tank construction, so salt is less prone to moisture and caking. Day-to-day maintenance is noticeably more convenient than with integrated models.
Consumable costs: Brine tank capacity is flexible; larger tanks extend the interval between refills. Larger resin models have longer replacement cycles, and their average annual consumable cost is relatively lower among the three salt-based designs.
Repair costs: The tank, brine container and control valve are all separate components with widely available standard replacement parts, making repairs simpler and cheaper.
Salt refilling: The shared large-capacity brine tank holds enough salt for long periods, so refills are infrequent. Counter-current regeneration also improves salt efficiency, using less salt per gallon of treated water than standard co-current single-tank systems.
Consumable costs: Day-to-day salt expense is lower, but replacing two resin beds costs more per service. The control valve assembly is more complex with more electronic components, so fault repairs and replacement parts cost more than single-tank models.
Average annual cost: Overall, annual consumable expenses are on the higher side among salt-based softeners.
Integrated and split-type (co-current regeneration): Regeneration wastewater volume is relatively high. Mini models with small resin capacity regenerate more frequently, resulting in higher annual water consumption.
Dual-tank (counter-current regeneration): The most water-efficient of the three salt-based designs, using roughly 30–40% less water and salt per unit of treated water, and producing the lowest total volume of salty wastewater.
Shared drawback: All three discharge high-salinity wastewater, which has some environmental impact on soil and water bodies. Installation may be restricted in areas with strict discharge regulations.
Integrated: The sealed one-piece casing dampens regeneration flow noise well, causing minimal disruption when regenerating at night.
Split-type: More pipe connections and an external brine tank make flow noise slightly higher than integrated models; the effect is amplified inside tight cabinet spaces.
Dual-tank: Alternating flushing of two valves produces the highest regeneration noise among salt-based models. This is largely irrelevant when installed in a utility room away from living areas.

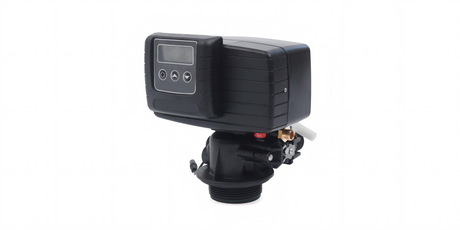

All three salt-based models require a mains power supply to operate the electronic control valve and automatic regeneration cycles. They cannot complete regeneration or tank switching automatically during a power outage.
Tight internal plumbing leaves very little room to retrofitting leak protection valves, bypass valves or other accessories. A brine tank leak can easily soak the control valve electronics and cause electrical faults.
Miniaturized models cut resin capacity to save space, leading to much more frequent regeneration and higher salt and water consumption. Many buyers choose them solely for their small size, only to be disappointed by real-world performance.
Wet-brine-tank designs are prone to bacterial growth and odors from standing water, and are far harder to clean and maintain than split-type models.
Excessive bending of the connecting line between the two tanks can cause pressure drop. In homes with already low mains pressure, this can lead to noticeably weaker flow during peak use.
More pipe joints mean a slightly higher long-term leak risk than integrated models.
Extremely large footprint: they almost never fit under standard apartment sinks or on balconies, and require a dedicated equipment space.
Dual control valves mean more electronic components. In humid environments, electrical failure rates are higher than single-tank models, and out-of-warranty repairs are expensive.
Retrofitting in homes without pre-planned plumbing and drain lines is extremely difficult and costly.
Salt-free systems are not a single technology. There are four common types on the market, with very different principles, performance and suitable applications.
This is the most dominant technology in residential salt-free systems, and the main product sold under the "salt-free water softener" label.

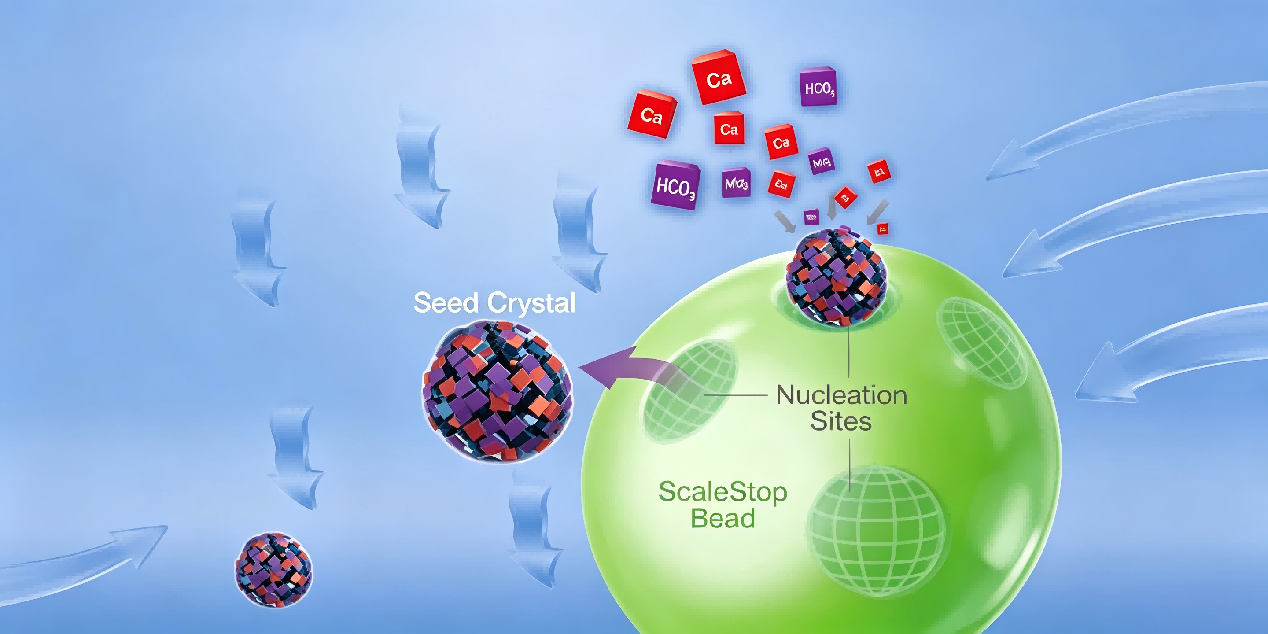

Core principle: Template Assisted Crystallization (TAC) technology. The tank is filled with nanocrystal filter media. As water flows through, calcium and magnesium ions form tiny, stable crystals on the surface of the media beads. These crystals remain suspended in the water and do not adhere to pipe walls or appliances.
Operating characteristics: Requires no electricity, no salt, and produces no regeneration wastewater; installation is simple. The process is purely physical, with no chemical additives.
Advantages: Treated water is safe for drinking and cooking; it does not add sodium to the water, making it suitable for people on sodium-restricted diets. It provides stable scale inhibition for cold water pipes, with almost no routine maintenance.
Limitations: It does not reduce water hardness at all, and does not produce the smooth feel of softened water. It cannot resolve soap scum or stiff laundry issues. Performance drops significantly with higher inlet hardness. Crystal stability declines at high temperatures, so scale can still form inside water heater tanks. White microcrystal powder can build up on showerheads and faucet aerators, requiring periodic cleaning.
Consumable costs: The media must be replaced entirely once exhausted. Service life depends directly on inlet hardness and water usage. Genuine replacement media carries a relatively high price tag, and long-term annual consumable costs are not necessarily lower than salt-based softeners.
An older chemical slow-release scale inhibition technology, used mostly in commercial and industrial pipe protection. In residential settings, it is most often installed at the inlet of a single water heater.

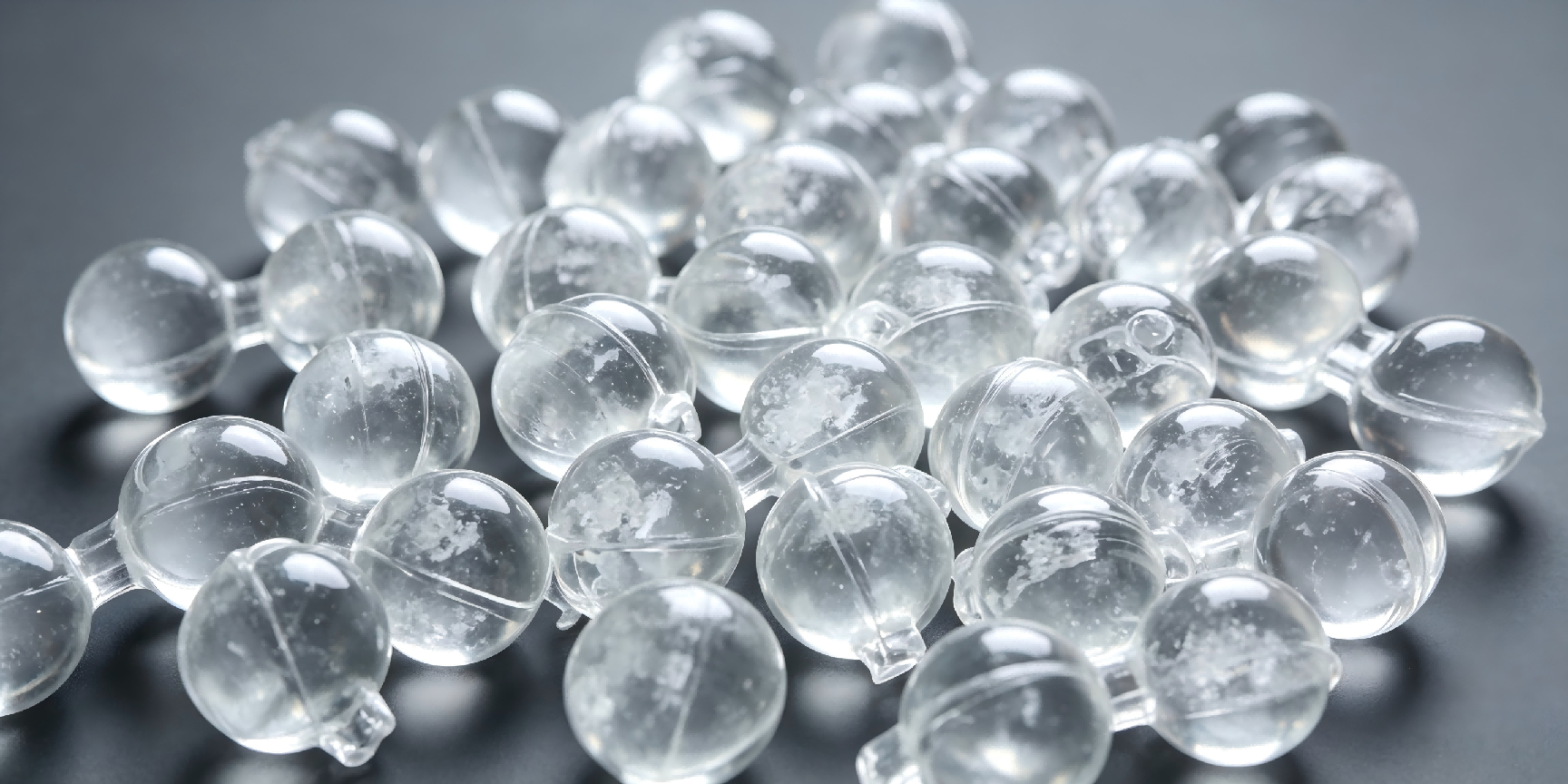

Core principle: Spherical silicon-phosphorus crystals dissolve slowly in water, releasing polyphosphates that form soluble complexes with calcium and magnesium ions, preventing scale crystal formation and adhesion.
Operating characteristics: No electricity required, simple construction, relatively low upfront cost, and easy installation for single-appliance protection.
Advantages: Low cost barrier, fast and simple installation and removal, and quick results for temporary protection of individual appliances.
Limitations: Continuously releases phosphate into the water, not recommended for drinking water. Dissolution rate becomes unstable at high temperatures, and can cause flocculent deposits that clog pipes and showerheads. Long-term use in closed piping carries some corrosion risk.
Suitable scenarios: Only for temporary, transitional protection of individual water heaters or boilers. Not recommended for whole-house use, and never for drinking water lines.

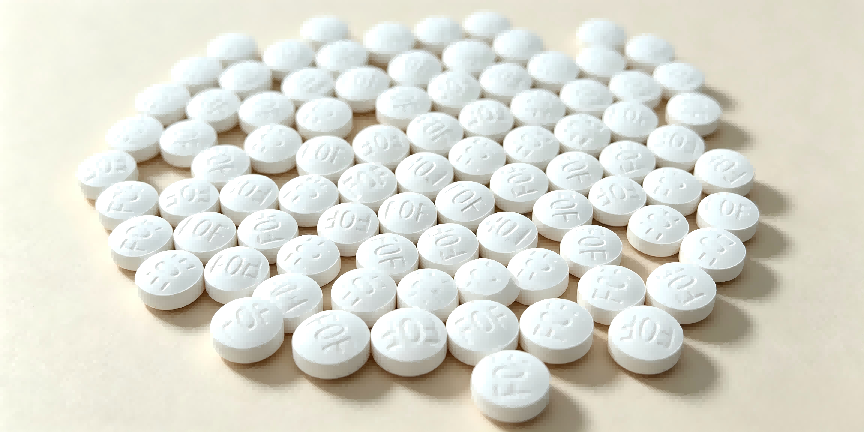

A middle-ground approach between chemical and physical methods, commonly available as FOF slow-release media or food-grade malic acid scale inhibition cartridges. Most are installed as filter housings upstream of drinking water systems or on point-of-use lines.
Core principle: Food-grade slow-release media gradually releases scale-inhibiting compounds that coat calcium and magnesium ions and suppress crystal formation, without high phosphate residue.
Operating characteristics: Cartridge-style design, simple replacement, no electricity required, no wastewater discharge.
Advantages: Safer than silicon-phosphorus crystals, and can be used on drinking water lines. Compact size, suitable for localized, point-of-use protection.
Limitations: Generally low flow capacity, unsuitable for whole-house high-flow applications. High cartridge replacement frequency and fast media consumption mean long-term running costs are not low.
Suitable scenarios: Supplementary scale inhibition upstream of reverse osmosis systems or small kitchen water lines, used in conjunction with drinking water treatment equipment.

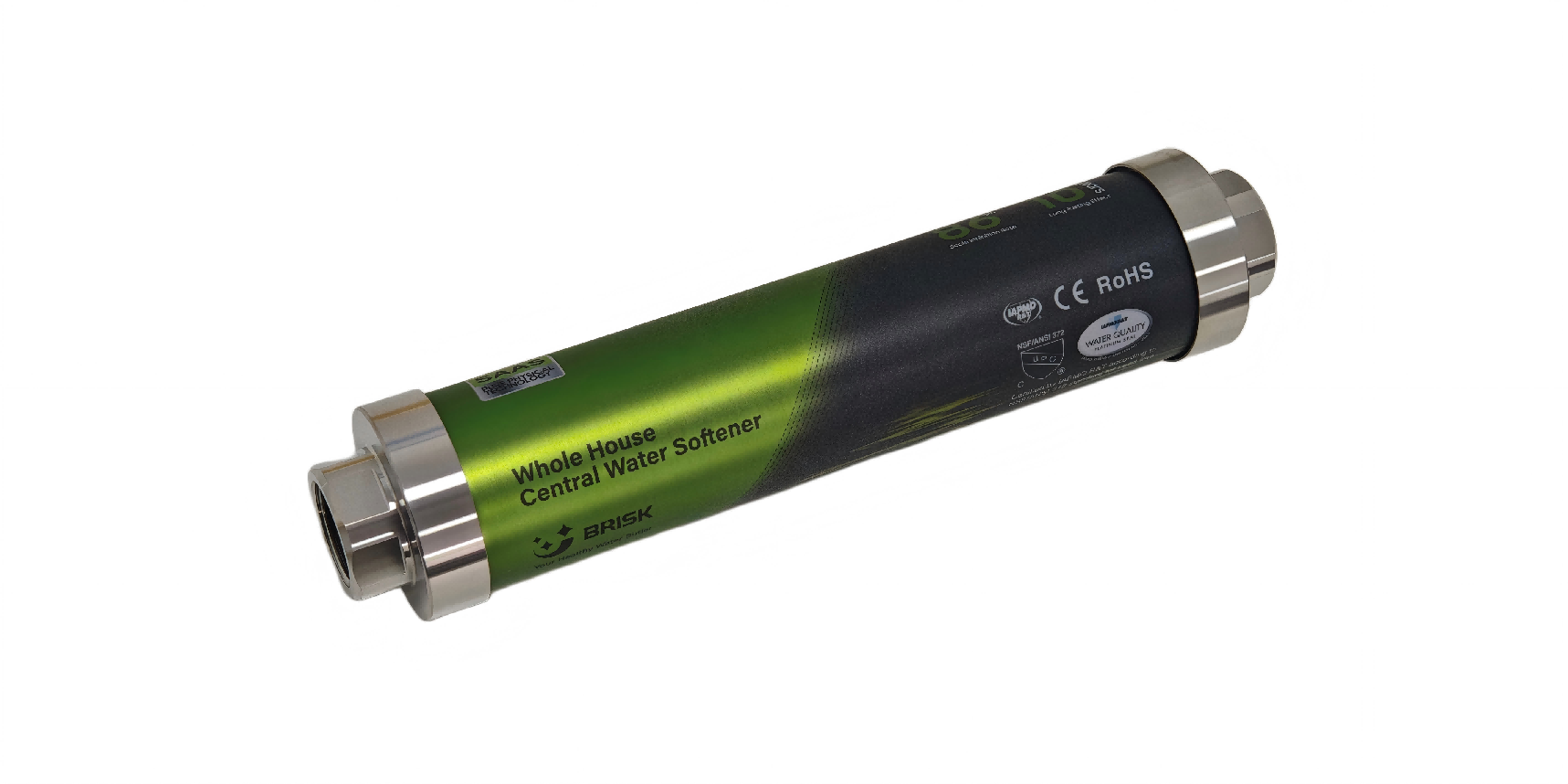

A purely physical scale inhibition method that uses electric or magnetic fields to alter the charge state of calcium and magnesium ions, producing loose crystals that do not adhere well to pipe walls. Common forms include wrap-around electromagnetic descalers and ion polarization devices.
Core principle: An applied electric or magnetic field alters the crystal structure of calcium and magnesium deposits, forming loose microcrystals that cannot stick firmly to pipe walls.
Operating characteristics: No consumables, no media replacement required; only needs electrical power to operate. Compact size, mounts directly onto pipes with no extra space required.
Advantages: Zero consumable cost, no change to water chemistry, flexible installation, and suitable for older homes and rental properties.
Limitations: Performance consistency is extremely poor, and highly dependent on water pressure, flow velocity, water chemistry and temperature. It has little to no measurable effect on high-hardness water. The market is flooded with low-cost products of highly variable quality, and exaggerated performance claims are widespread.
Suitable scenarios: Only for very low-hardness water with mild scaling issues, used as supplementary protection. It cannot resolve severe scale problems.
Many shoppers struggle to choose after reviewing specifications, because they fail to match their own needs, living conditions and water quality to the right equipment. Below is a breakdown by three key decision dimensions, with direct recommendations for each scenario.
This is the highest priority in selection. If you choose the wrong technology category, convenience and aesthetics will never make up for poor real-world performance.
Core need: Luxurious bathing feel, relief from dry skin, softer laundry, spot-free fixtures Choose an ion exchange water softener (integrated, split-type or dual-tank). No salt-free device can deliver this result. Ignore "maintenance-free" salt-free marketing claims – the smooth skin feel and rich lather of genuine soft water is something salt-free systems simply cannot replicate.
Core need: Protect water heaters, underfloor heating and pipes only, no desire for soft-water feel, no interest in regular salt refills Prioritize a TAC nanocrystal salt-free scale inhibitor, which offers better stability and safety than other salt-free technologies. For temporary protection of a single water heater on a tight budget, consider a point-of-use silicon-phosphorus crystal unit.
Core need: 24-hour on-demand soft water, zero tolerance for hard water during regeneration Only a dual-tank ion exchange water softener can deliver this. Single-tank integrated and split-type models will always have a hard water gap, no matter how you schedule regeneration. Nighttime scheduling only reduces disruption, it cannot eliminate it entirely.
Once you have chosen the technology category, select the specific configuration based on your living situation, prioritizing installation fit and water use patterns.
Standard apartment, 1–3 residents, regular square under-sink space, minimal nighttime water use Choose a standard-size integrated water softener. It has a clean appearance and simple installation. Scheduling regeneration for the early morning off-peak period will generally avoid disrupting daily use. Avoid mini models with very small resin capacity – they regenerate too frequently, wasting salt and water and delivering poor long-term experience.
Households of 4 or more people, high inlet hardness, narrow/irregular under-sink space, long-term owner-occupied home Choose a split-type water softener. The separate brine tank makes salt refills and sediment cleaning easier, and there is more flexibility in resin capacity to handle high hardness and multiple draw points. The offset tank arrangement fits irregular installation spaces, and the maintenance experience is much better for long-term occupancy.

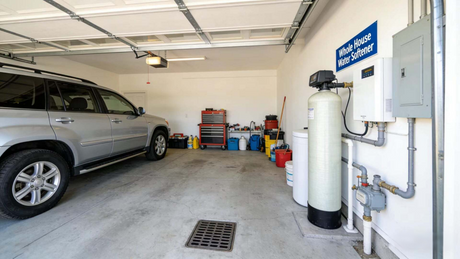

Detached homes, 3+ bathrooms, large household, high daytime water demand, dedicated utility room/garage Choose a dual-tank counter-current regeneration water softener. Softening performance remains stable even when multiple bathrooms, bathtubs and washing machines run simultaneously. Alternating dual-tank operation delivers uninterrupted soft water around the clock, for the best experience in large homes. Counter-current regeneration also saves salt and water, for lower long-term operating costs.
Rental property, no plumbing modifications allowed, no drain access, temporary appliance protection only Choose a compact electromagnetic descaler or point-of-use TAC filter cartridge. They install easily, can be removed when you move, and require no permanent modifications.
Low-hardness region, whole-house scale protection only, sodium concerns, no strong demand for soft-water feel Choose a whole-house TAC nanocrystal scale inhibitor. It uses no salt, produces no wastewater, the water is safe for cooking and drinking, and it requires almost no routine maintenance.
Well water, extremely high hardness, water containing iron, manganese and other impurities Prioritize a split-type or dual-tank ion exchange water softener. They can be configured with extra-large resin tanks and paired with pre-treatment equipment for stable long-term operation. All salt-free devices will fail rapidly under these conditions and are not recommended at all.
No floor drain at installation location, no way to discharge regeneration wastewater You can only use a salt-free scale inhibitor, preferably a TAC nanocrystal model. Salt-based softeners always produce regeneration wastewater. They absolutely cannot be installed without a drain, and claims of "wastewater-free salt softeners" are false advertising.
Household members with kidney disease or hypertension requiring strict sodium restriction Whole-house salt-based softening is not recommended. Instead, use a salt-free scale inhibitor for whole-house pipe protection, paired with a separate reverse osmosis system for drinking water. This balances scale protection and drinking water safety.
You can immediately eliminate certain options without detailed comparison, to simplify your decision:
Desire for smooth bathing feel and soft, bright laundry → Rule out all salt-free devices
Only standard under-sink space available, no dedicated equipment room → Rule out dual-tank water softeners
High-hardness well water, severe scaling problems → Rule out electromagnetic and silicon-phosphorus salt-free devices
Short-term rental, no drilling or plumbing modifications allowed → Rule out split-type and dual-tank salt-based softeners
Need strong scale protection for high-temperature water lines → Approach salt-free devices with caution; all salt-free technologies lose efficiency at high temperatures.
Do not be misled by the "salt-free softening" marketing concept. Scale inhibition and water softening are two different things. Before buying, clarify your core priority: protecting appliances from scale, or improving the feel of washing and bathing water. The former can be addressed with salt-free equipment; the latter requires a salt-based ion exchange water softener.
Do not fixate on structural gimmicks. Equivalent integrated and split-type models have essentially identical softening performance. There is no need to overthink the structure itself – focus instead on your available installation space, maintenance convenience and water use frequency. Also, do not believe claims that dual-tank resin lasts 10 years. Resin service life depends directly on inlet water quality, regeneration method and usage intensity. In typical residential use, replacement every 3–5 years is normal.
Bigger is not always better. The best system is one matched to your water consumption and inlet hardness. Start by confirming your inlet hardness, average daily water use and available installation dimensions, then select the appropriate model and specifications. That is how you balance user experience and long-term cost.
