DESCRIPTION |

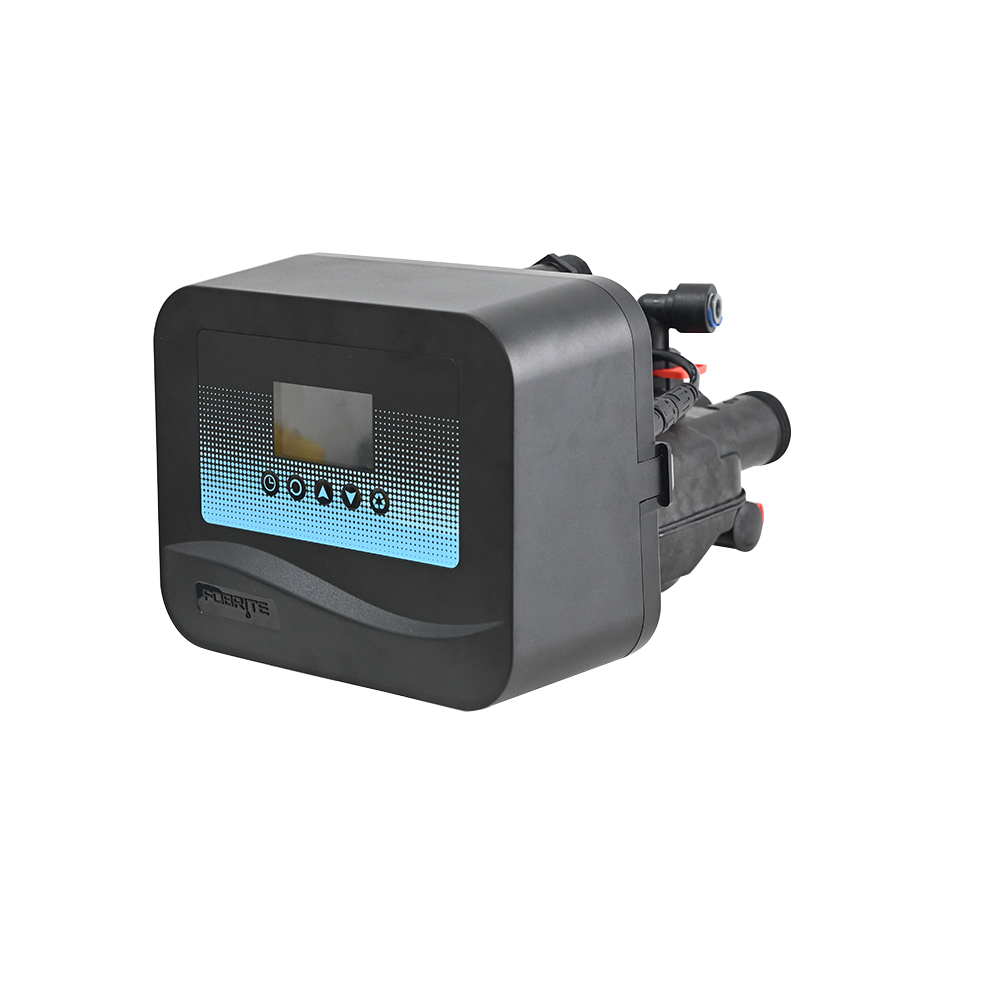

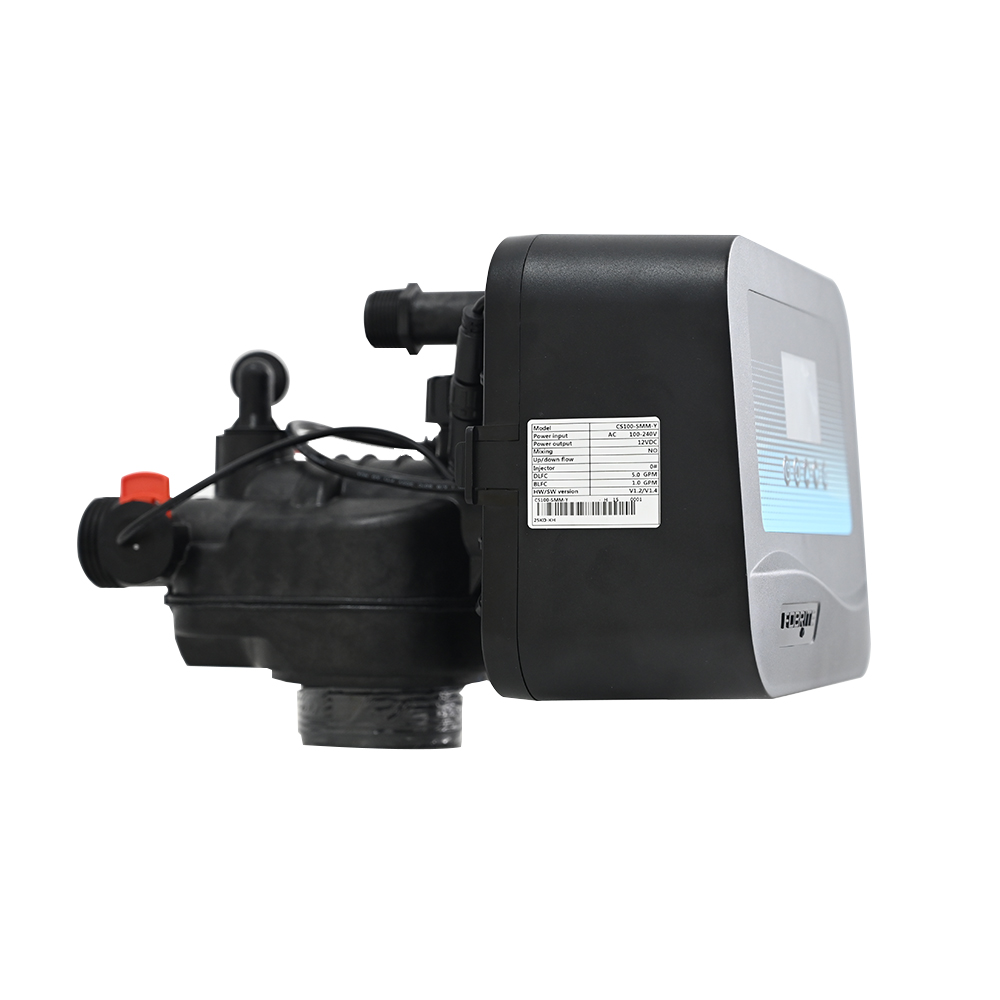

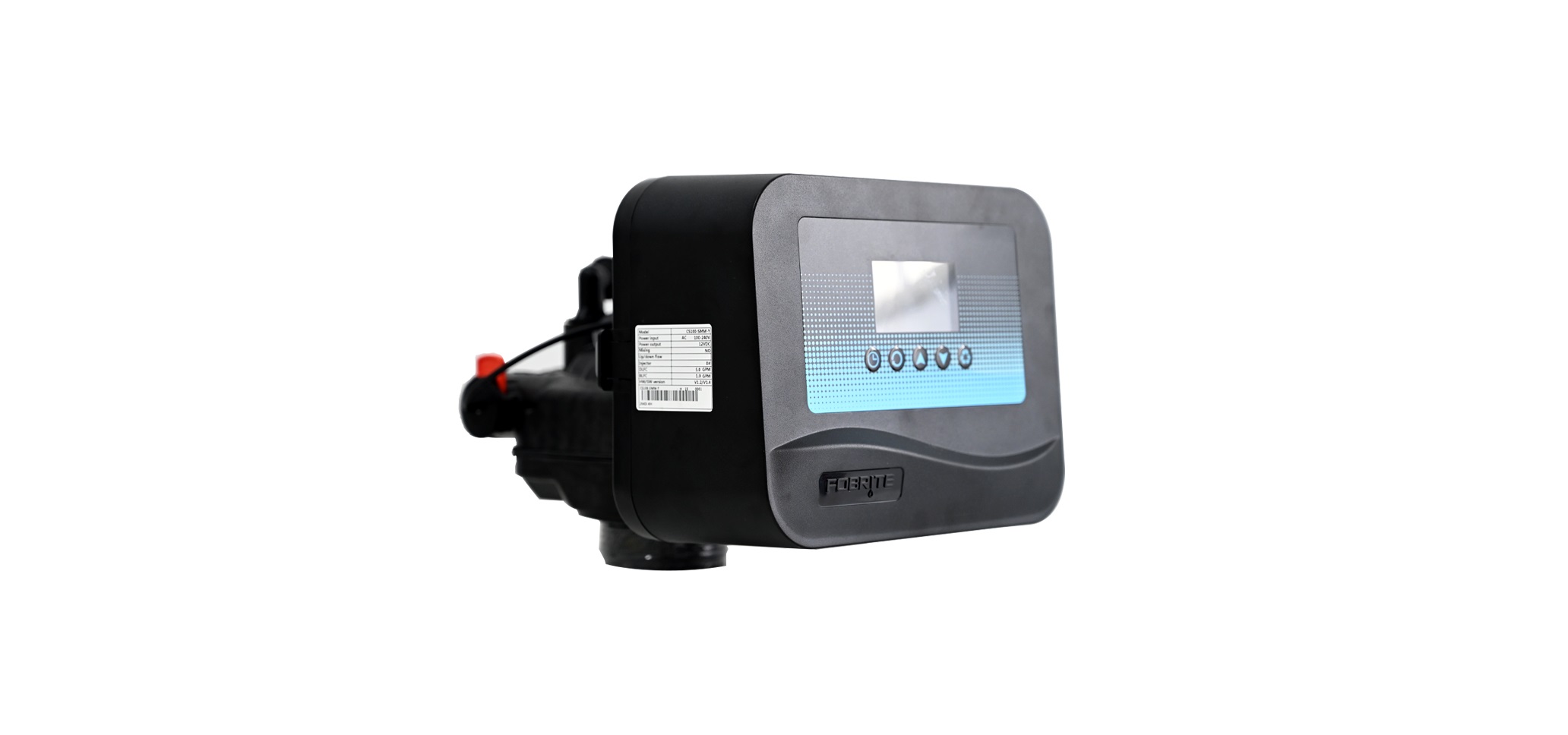

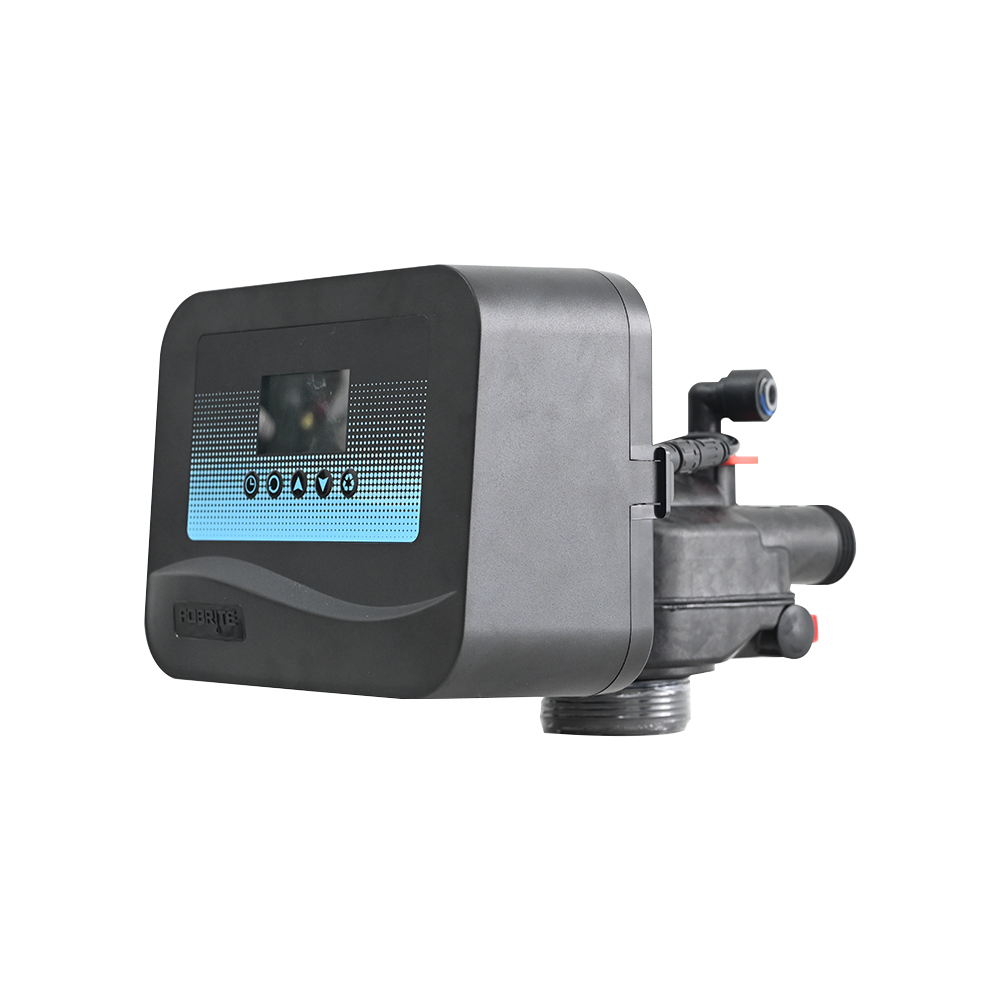

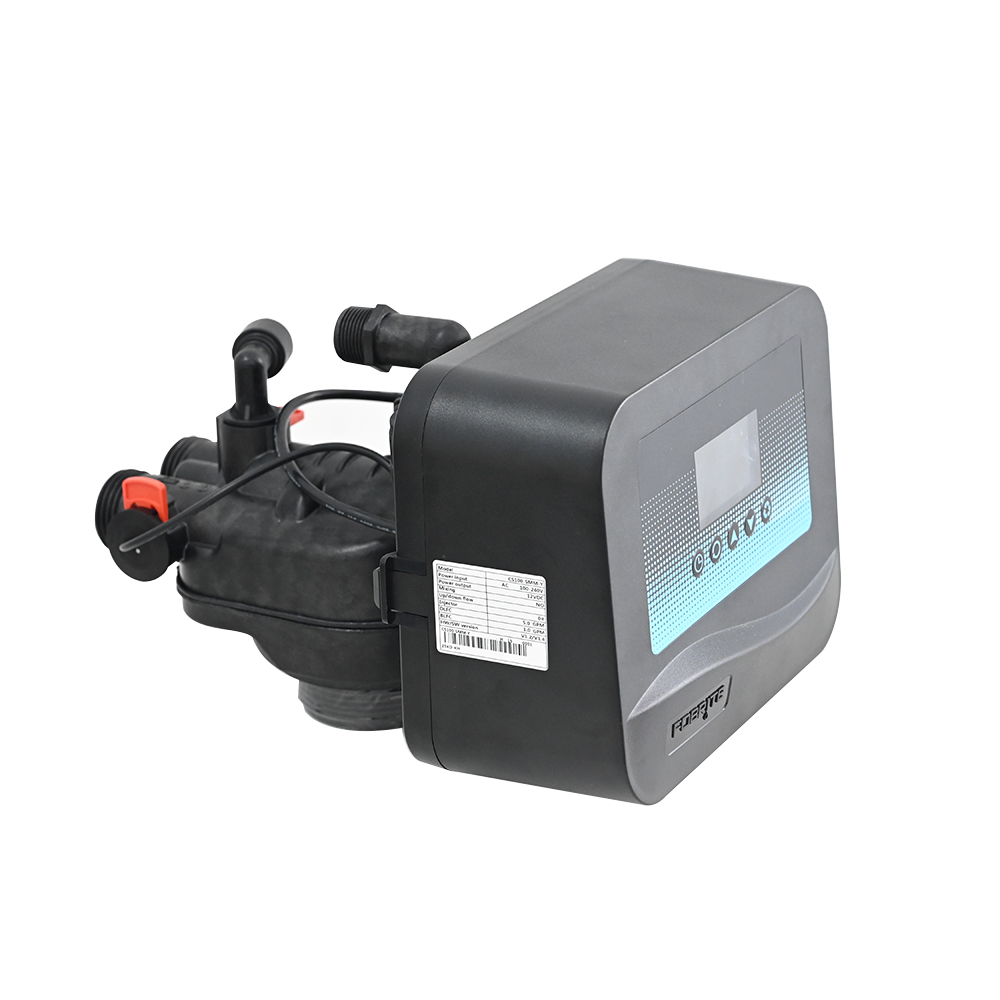

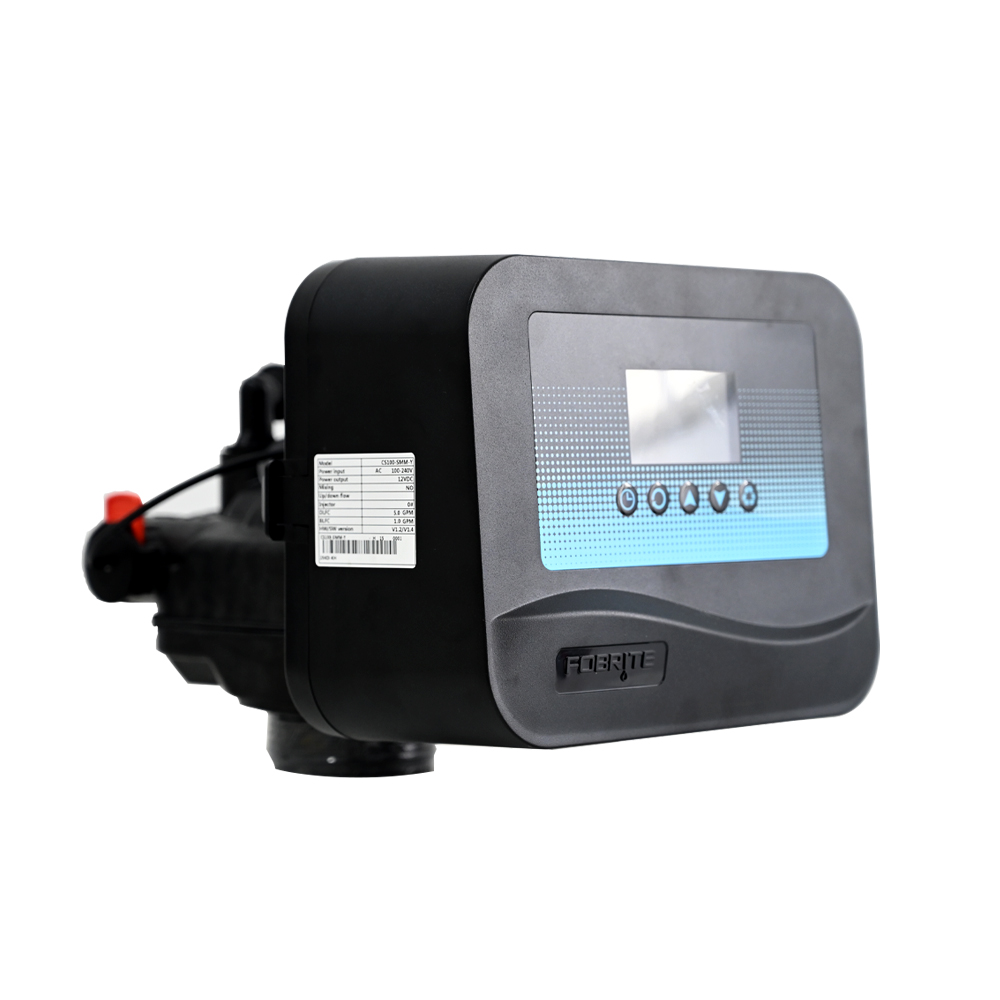

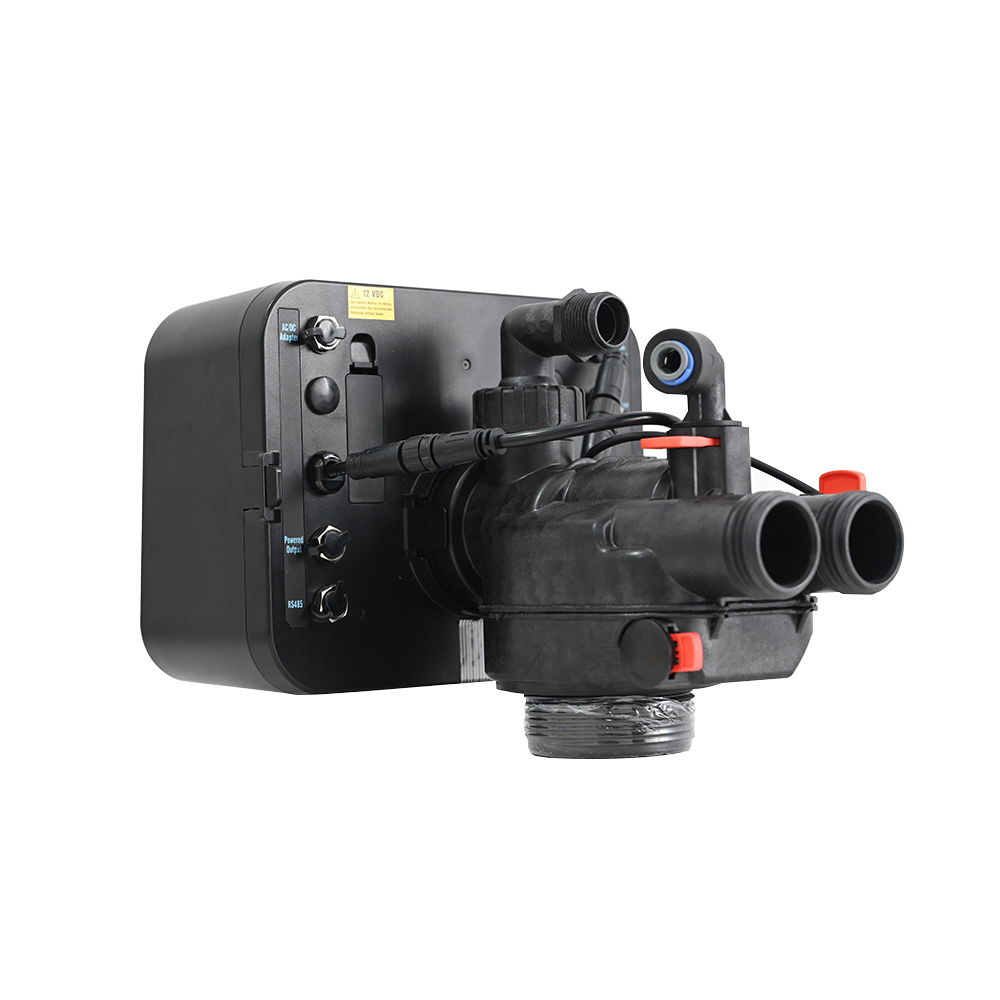

FOBRITE CS100 is a versatile OEM-supported automatic multiport valve tailored for small commercial and light industrial water treatment scenarios including boutique hotels, homestays, gyms, beauty salons, commercial laundromats, car wash shops and small boiler anti-scale pretreatment equipment. The valve’s expandable intelligent signal interfaces enable seamless integration into centralized commercial water supply monitoring systems for resort and office building projects. Its dual softener-filter design allows OEM factories to produce two distinct water treatment machine models using one single valve core, simplifying mold production and component procurement processes for water equipment manufacturers. All core spare parts such as injectors, flow meters and quick connectors are interchangeable for unified after-sales global spare parts supply chains.
APPLICATION |
Household Water Treatment

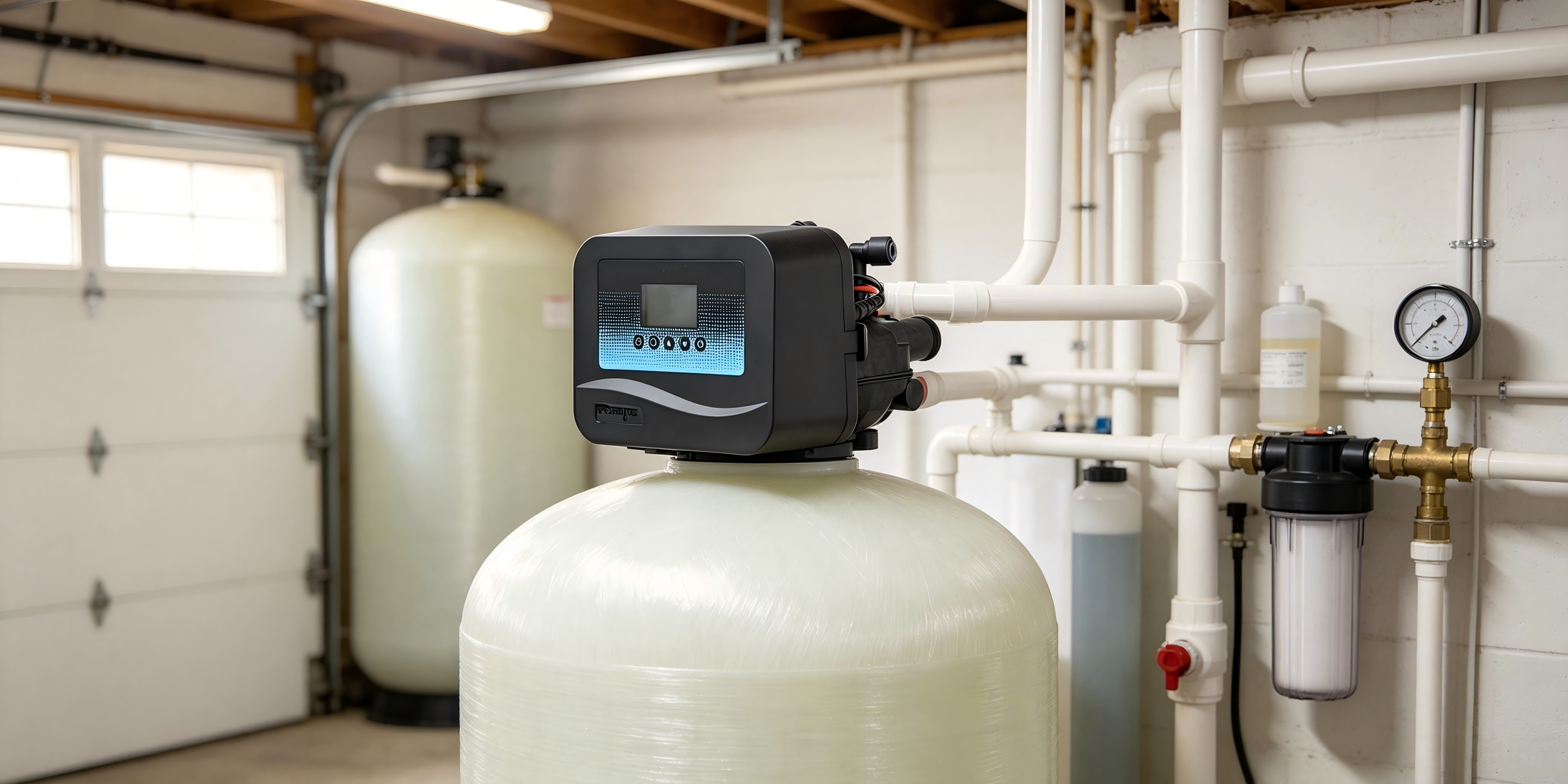

Whole-house softening system for villas, apartments and townhouses to remove limescale
Well water/tap water sediment & chlorine filtration with quartz sand / activated carbon tanks
Homestays, hotels, gyms, beauty salons, laundries, car wash shops
Office building daily water pre-filtration and softening treatment
Anti-scale pre-softener for small boilers; aquaculture pre-filter
RV, yacht dedicated soft water & clean water integrated systems
Universal matching valve for global water softener and filter machine manufacturer
PARAMETER |
| Category | Parameter Item | Data & Description |
|---|---|---|
| Hydraulic Flow (Valve only, inlet pressure 50PSI/3.5bar) | Continuous Flow (15PSI/1bar pressure drop) | 5.5M³/H (24.2GPM) |
| Peak Service Flow (25PSI/1.7bar pressure drop) | 7.0M³/H (31GPM) | |
| Max Backwash Flow (25PSI/1.7bar pressure drop) | 5.7M³/H (25GPM) | |
| CV Value (1PSI/0.07bar pressure drop) | 6.2 | |
| Regeneration System | Regeneration Flow Mode (UF) | DF(NHW) non-hardwater co-current / DF(HW) hardwater co-current |
| Regeneration Cycles | 5 full adjustable stages | |
| Adjustable Cycles Range | All stages fully customizable | |
| Single Stage Time Range | 0–999 minutes | |
| Standard Built-in Configuration | Core components | Quick-disassemble injector & flow meter, dedicated brine dissolving chamber |
| Pipeline connectors | Quick plug elbow joints for brine & drain line | |
| Regeneration algorithm | Proportional salt-saving regeneration | |
| Optional Expandable Accessories | Auxiliary fittings | Independent bypass valve |
| Signal & communication interfaces | Relay output, remote control, active signal output, RS485 communication, low salt level alarm port | |
| Intelligent Monitoring Functions | Self-diagnosis & record | Auto fault error reporting, regular maintenance reminder, historical operation data inquiry |
| Pipeline Port Spec | Inlet & Outlet | 1" or 3/4", NPT / BSPT thread; straight or elbow quick connectors |
| Drain Line | 1" / 3/4" / 1/2", NPT / BSPT thread; straight or elbow quick connectors | |
| Brine Line | 3/8" or 1/2" OD elbow quick connector | |
| Tank Matching Spec | Base Thread Standard | 2-1/2"-8NPSM |
| Distributor Pilot Compatibility | GB standard: DN25, 32mm OD NPS US standard: 1" Pipe, 33.4mm OD | |
| Matching Softener Tank Size | 10" - 24" (250-600mm diameter) | |
| Matching Filter Tank Size | 10" - 21" (250-530mm diameter) | |
| Dimension & Weight | Height from tank top | 6.8" / 173mm |
| Valve Net Weight | 2.1Kg |
