DESCRIPTION |

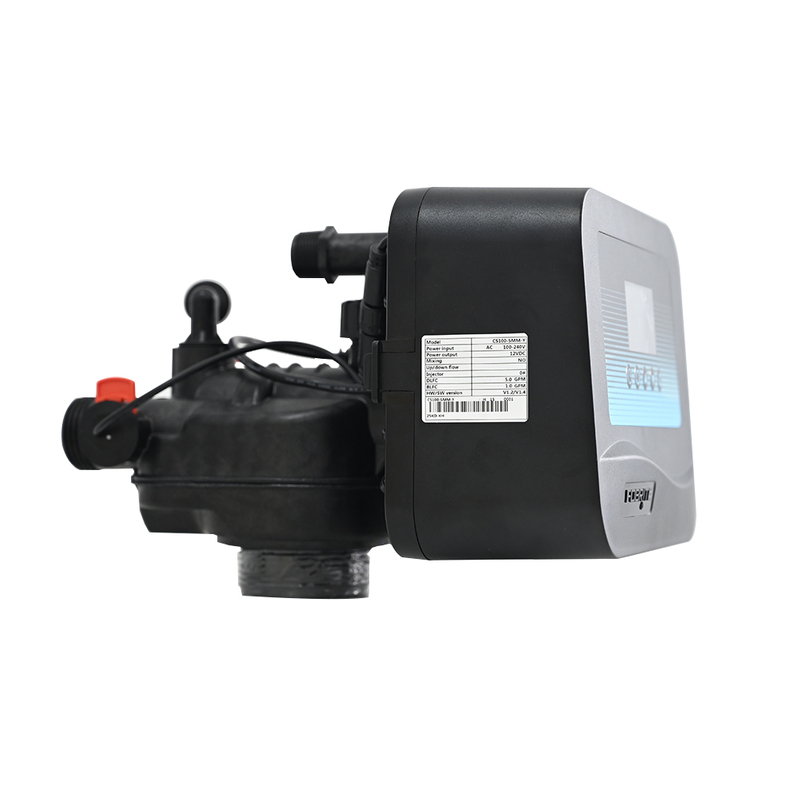

FOBRITE CS100 serves as the core control unit for complete residential whole-house water treatment systems, delivering stable soft and clean water for bathing, laundry, kitchen use and household appliance protection in villas, large apartments, duplexes and multi-family townhouses. The high-flow hydraulic design guarantees consistent powerful water pressure when multiple showers, faucets and washing machines run water simultaneously, without weak water output that commonly occurs with low-flow control valves. It handles both municipal city tap water and underground well water sources, supporting full automatic self-cleaning cycles without daily manual operation from homeowners. Installers can freely adjust regeneration cycle durations and modes to match local regional water hardness levels, delivering customized water treatment effects for every residential household project.
APPLICATION |
Household Water Treatment
Whole-house softening system for villas, apartments and townhouses to remove limescale
Well water/tap water sediment & chlorine filtration with quartz sand / activated carbon tanks
Homestays, hotels, gyms, beauty salons, laundries, car wash shops
Office building daily water pre-filtration and softening treatment
Anti-scale pre-softener for small boilers; aquaculture pre-filter
RV, yacht dedicated soft water & clean water integrated systems
Universal matching valve for global water softener and filter machine manufacturer
PARAMETER |
| Category | Parameter Item | Data & Description |
|---|---|---|
| Hydraulic Flow (Valve only, inlet pressure 50PSI/3.5bar) | Continuous Flow (15PSI/1bar pressure drop) | 5.5M³/H (24.2GPM) |
| Peak Service Flow (25PSI/1.7bar pressure drop) | 7.0M³/H (31GPM) | |
| Max Backwash Flow (25PSI/1.7bar pressure drop) | 5.7M³/H (25GPM) | |
| CV Value (1PSI/0.07bar pressure drop) | 6.2 | |
| Regeneration System | Regeneration Flow Mode (UF) | DF(NHW) non-hardwater co-current / DF(HW) hardwater co-current |
| Regeneration Cycles | 5 full adjustable stages | |
| Adjustable Cycles Range | All stages fully customizable | |
| Single Stage Time Range | 0–999 minutes | |
| Standard Built-in Configuration | Core components | Quick-disassemble injector & flow meter, dedicated brine dissolving chamber |
| Pipeline connectors | Quick plug elbow joints for brine & drain line | |
| Regeneration algorithm | Proportional salt-saving regeneration | |
| Optional Expandable Accessories | Auxiliary fittings | Independent bypass valve |
| Signal & communication interfaces | Relay output, remote control, active signal output, RS485 communication, low salt level alarm port | |
| Intelligent Monitoring Functions | Self-diagnosis & record | Auto fault error reporting, regular maintenance reminder, historical operation data inquiry |
| Pipeline Port Spec | Inlet & Outlet | 1" or 3/4", NPT / BSPT thread; straight or elbow quick connectors |
| Drain Line | 1" / 3/4" / 1/2", NPT / BSPT thread; straight or elbow quick connectors | |
| Brine Line | 3/8" or 1/2" OD elbow quick connector | |
| Tank Matching Spec | Base Thread Standard | 2-1/2"-8NPSM |
| Distributor Pilot Compatibility | GB standard: DN25, 32mm OD NPS US standard: 1" Pipe, 33.4mm OD | |
| Matching Softener Tank Size | 10" - 24" (250-600mm diameter) | |
| Matching Filter Tank Size | 10" - 21" (250-530mm diameter) | |
| Dimension & Weight | Height from tank top | 6.8" / 173mm |
| Valve Net Weight | 2.1Kg |
| WHY UMEK |
With 29 years in water treatment and 17 years of international market experience, UMEK delivers one-stop solutions trusted in over 120 countries for efficient and reliable results. As the largest industrial water treatment wholesaler in the north, backed by 30+ professionals and a unique culture of mentorship and excellence, we are committed to providing high-quality products and customized services.
We partner with top-tier suppliers like Runxin Valve and Pentair, ensuring certified products with strict quality control. UMEK also offers a value-driven environment, comprehensive training, and growth opportunities, empowering employees and achieving mutual success. Choose UMEK – your partner in expertise, innovation, and sustainable development!
Sample Room
Factory Gate
Factory Showcase
Factory Showcase
Factory Showcase
EXHIBITION |
Water Tech 2023
Water Tech 2023
Water Tech 2024
Canton Fair
Canton Fair
Canton Fair
| FAQ |
A1. Why choose UMEK for industrial water treatment solutions?
Q: With 29+ years in water treatment and 17+ years of global expertise, UMEK combines innovation, certified quality, and tailored services. As the largest wholesaler in the north, we deliver trusted solutions across 120+ countries, backed by 30+ professionals and partnerships with industry leaders like Runxin Valve and Pentair.
A2. Are UMEK products certified for international standards?
Q: Yes. All products undergo strict quality control and comply with global certifications (e.g., ISO, CE, WRAS). Our partnerships with top-tier suppliers ensure reliability and performance in diverse industrial applications.
A3. Can UMEK provide customized water treatment solutions?
Q: Absolutely. We specialize in tailored services, designing systems to meet unique client needs. Our team collaborates closely with you to ensure optimal efficiency, cost savings, and compliance.
A4. How does UMEK ensure product quality?
Q: Every product is rigorously inspected, tested, and certified. We work exclusively with vetted suppliers like Runxin Valve and Pentair, adhering to international quality benchmarks at every production stage.
A5. What industries does UMEK serve internationally?
Q: We serve 120+ countries across sectors like manufacturing, energy, municipal water, and agriculture. Our solutions adapt to regional regulations, climates, and operational demands for seamless global delivery.
A6. Does UMEK prioritize sustainability in its solutions?
Q: Yes. Sustainability drives our innovation. We optimize water reuse, reduce chemical waste, and integrate energy-efficient technologies to support clients’ environmental and ESG goals.
A7. What post-purchase support does UMEK offer?
Q: Clients receive lifelong technical support, including system maintenance guidance, troubleshooting, and employee training. Our mentorship-driven team ensures your operational success long after installation
