Views: 5532 Author: Site Editor Publish Time: 2026-04-29 Origin: Site
In North American residential water treatment systems, the combination of water softeners and PP filters (polypropylene melt-blown filters) is very common. The design of installing a PP filter after a water softener is not a redundant configuration, but a water treatment solution formed for the operating characteristics of water softeners, water safety, and protection of downstream water-using equipment. It is also one of the standard configurations in the North American residential water treatment field. With the continuous expansion of the US water treatment market and the increasingly refined filtration demand of whole-house water purification systems, the application value of PP filters after water softeners has become more prominent, becoming a key link to ensure household water quality and extend the service life of water treatment equipment and water-using household appliances.

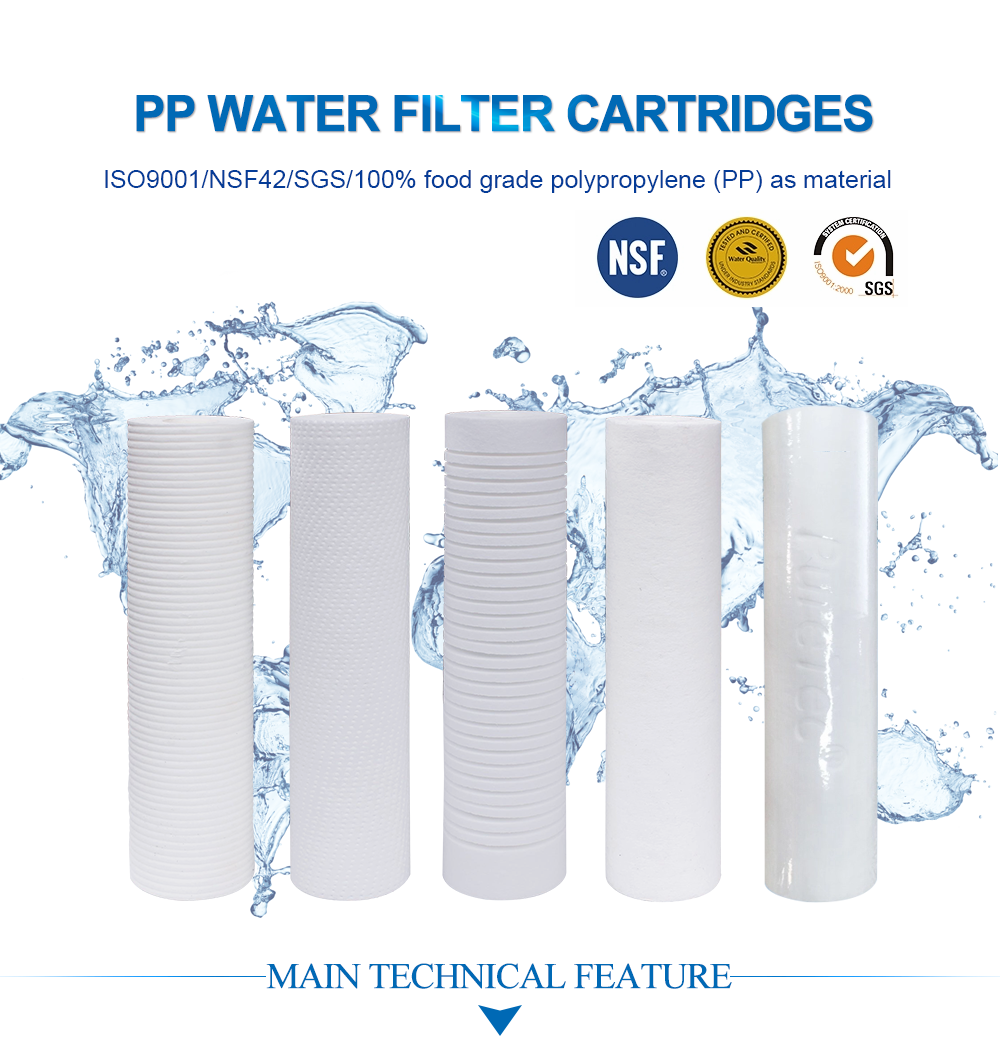

As a high-efficiency physical filtration element, PP filter (polypropylene melt-blown filter) is made of 100% polypropylene as the core material. With its excellent chemical inertness and stable filtration performance, it is widely used in the water treatment field, especially suitable for the precise filtration demand after water softeners. Different from composite filters, most PP filters used after US water softeners are made of pure PP material through a specific process. They can effectively deal with various particulate impurities generated during the operation of water softeners, build the last physical filtration line for whole-house water, and meet the safety requirements of household drinking water treatment devices.
The core function of a water softener is to remove calcium and magnesium ions from water through ion exchange resin to achieve water softening and solve the problem of scale deposition. However, during long-term operation, problems such as resin loss and impurity residue will inevitably occur. As a depth filtration element, PP filter can accurately address these industry pain points, and its core functions are reflected in the following 4 points:

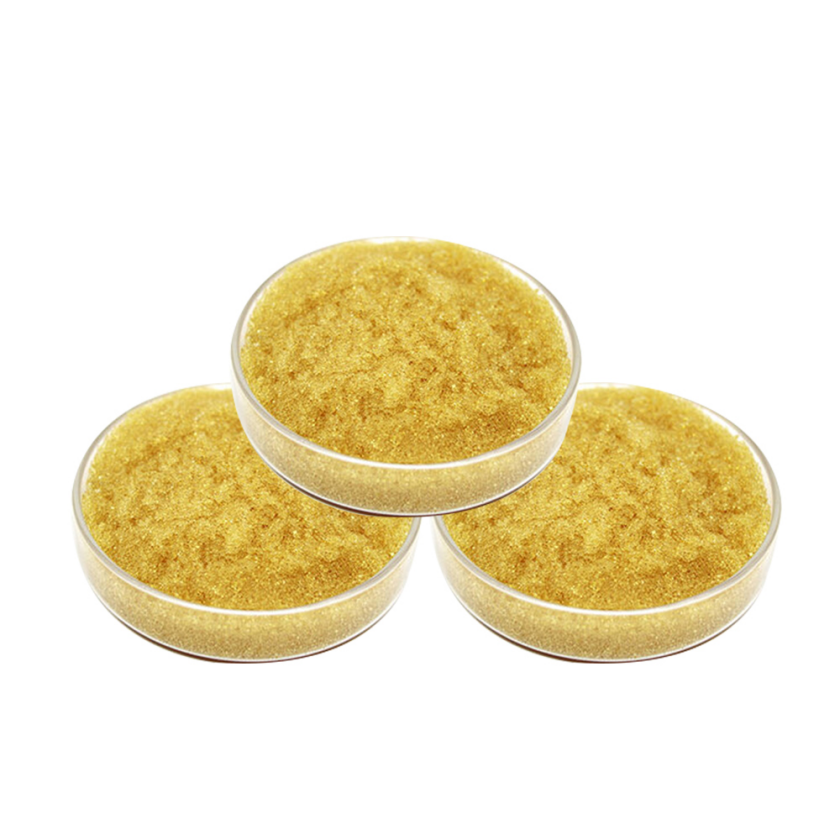

The cation exchange resin filled in household sodium ion water softeners will be pulverized and broken due to mutual friction and aging during long-term ion exchange and backwashing regeneration, producing tiny resin debris. Since the water softener itself has no precision built-in filter screen, these resin debris will directly enter the whole-house water supply pipeline with softened water. If they enter water-using equipment such as water heaters, washing machines, and ice makers, they will easily cause pipeline blockage and component wear, affecting the operating efficiency and service life of the equipment. Therefore, installing a PP filter after the water softener has become a protective measure in the North American water treatment installation industry. Through physical interception, it can efficiently retain resin debris and avoid damage to downstream equipment, which is also the core demand for installing a PP filter after a water softener.
Household water softeners in the United States generally use granular water softener salt during regeneration, and such water softener salt inevitably carries trace dust, salt mud, and insoluble impurities. Meanwhile, during the backwashing regeneration of the water softener, impurities such as rust, sediment, and suspended solids intercepted by the filter element will be washed out. Although most impurities will be discharged with waste water, a small amount of residues will still flow out with softened water. The post-installed PP filter can effectively filter these salt residues, salt scale particles, and regeneration residues, avoid problems such as white tap water and shower head clogging, ensure the cleanliness of effluent water quality, and meet the hygienic and safety requirements of household drinking water treatment devices.
A large number of old residences in the United States use copper pipes and galvanized pipes for water supply pipelines. After long-term use, the inner walls of these pipelines will have rust peeling, oxide skin falling off, and other phenomena, forming pipeline sediments. Since softened water removes calcium and magnesium ions, the water is slippery and slightly corrosive, which will accelerate the scouring of the pipe wall, wash down rust and aging debris in the pipeline, and cause secondary pollution. The post-installed PP filter can effectively intercept these pipeline impurities, protect precision components such as shower heads, bathroom faucets, and thermostatic valve cores, avoid equipment failure caused by impurity wear, and reduce later maintenance costs.

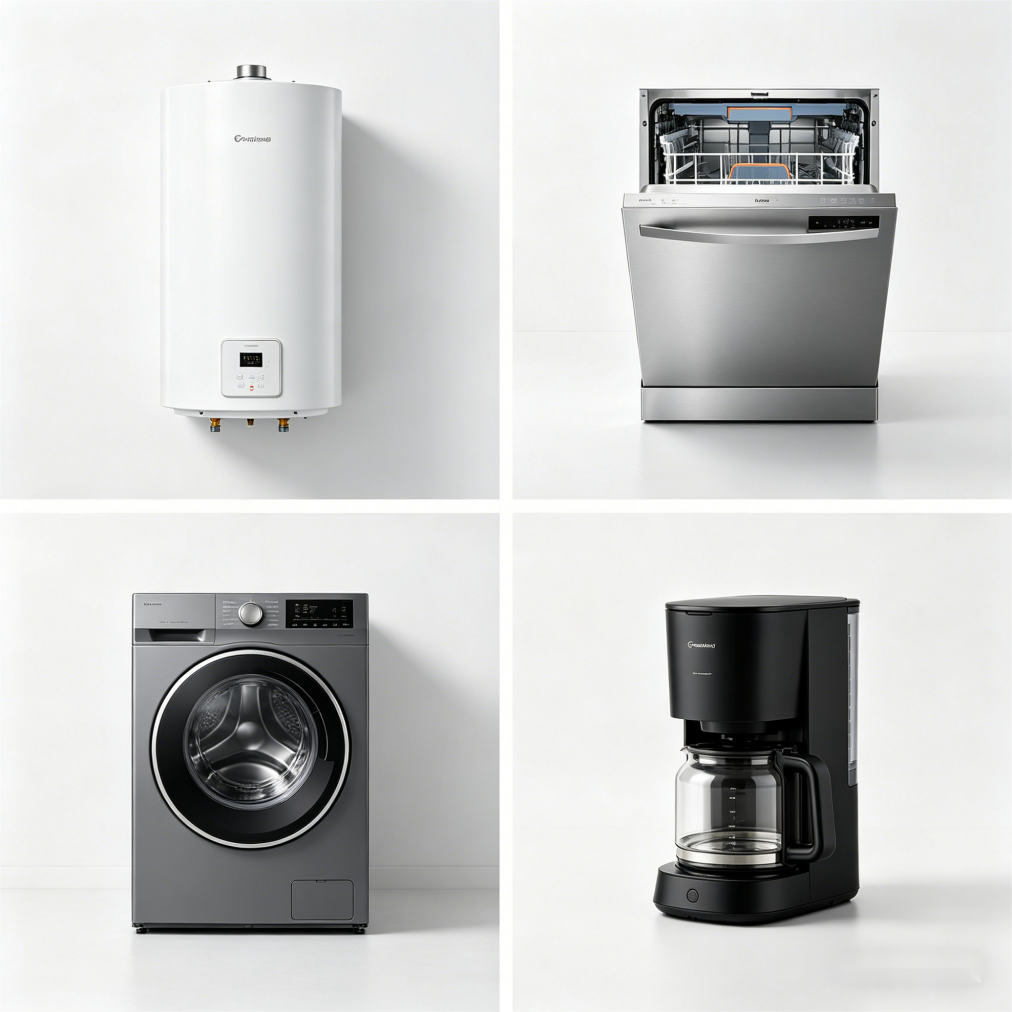

Even after softening by a water softener, tiny particulate matter may still remain in the water. When such particulate matter enters household appliances such as water heaters, dishwashers, and washing machines, it will wear the inner tank and sealing ring of the equipment, accelerate equipment aging, and even cause equipment scaling and blockage. As a final coarse filter element for whole-house water, PP filter can further intercept tiny particulate matter, reduce household appliance loss, extend the service life of water-using household appliances and subsequent water treatment equipment, and improve the comfort of household water use, in line with the high-end development trend of North American whole-house water purification systems.
Many US households have water softeners equipped with bypass valves, or only connect the water softener to the hot water pipeline (kitchen cold water is usually not softened). When the system is in bypass mode (water flow does not pass through the resin tank and directly uses municipal hard water), the post-installed PP filter can play a basic role in sediment filtration to ensure effective interception of particulate matter in the water. Some households will also choose a large-flow PP filter, installed after the water softener and before whole-house water distribution, as the last physical filtration line for whole-house water to achieve full-scenario water quality protection.
PP filters used after US water softeners follow strict industry standards in material and process to ensure filtration performance and water safety, in line with the high-quality development demand of global household water purification equipment. The specific details are as follows:

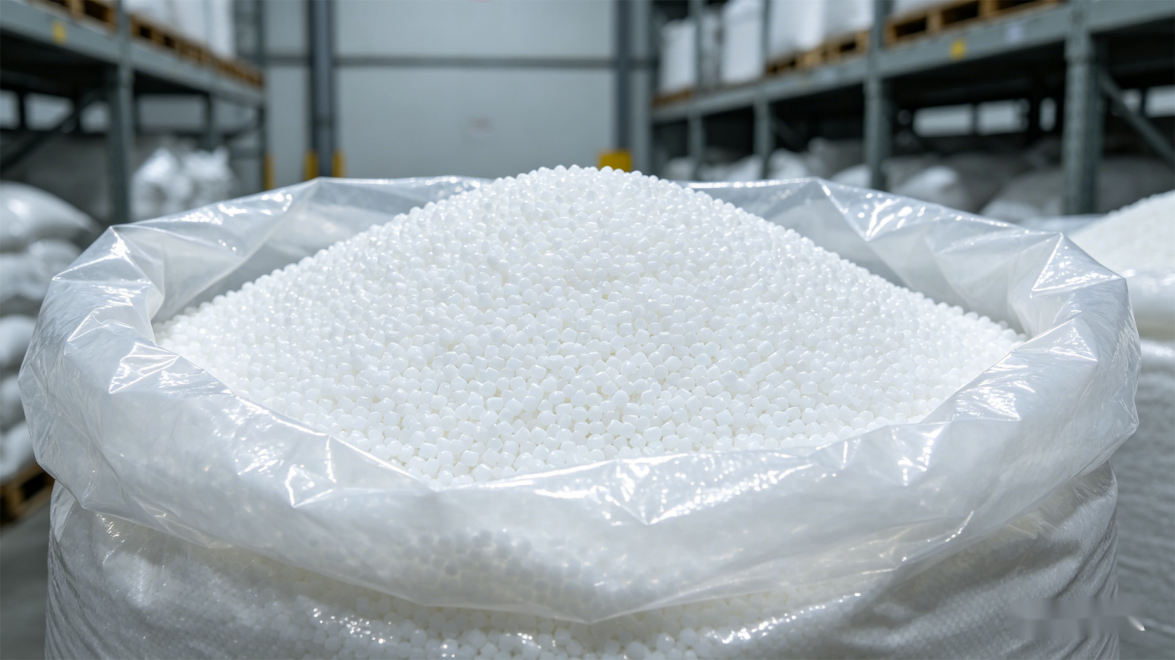

The selected PP material must meet food-grade standards, have strong chemical inertness, acid and alkali resistance, and corrosion resistance. It will not chemically react with sodium ions and trace chlorine in softened water, nor will it be dissolved by soft water, avoiding secondary pollution. At the same time, the microporous structure formed by pure PP material can accurately achieve physical interception, and will not produce black carbon powder like activated carbon filters, ensuring the cleanliness of effluent water quality. It meets the requirements of FDA 21 CFR 177.1520 standard (food-contact polypropylene) and ensures no plasticizer (BPA-Free) precipitation.
In the US market, PP filters after water softeners are mainly divided into two process forms, suitable for different filtration needs, both belonging to depth filtration:

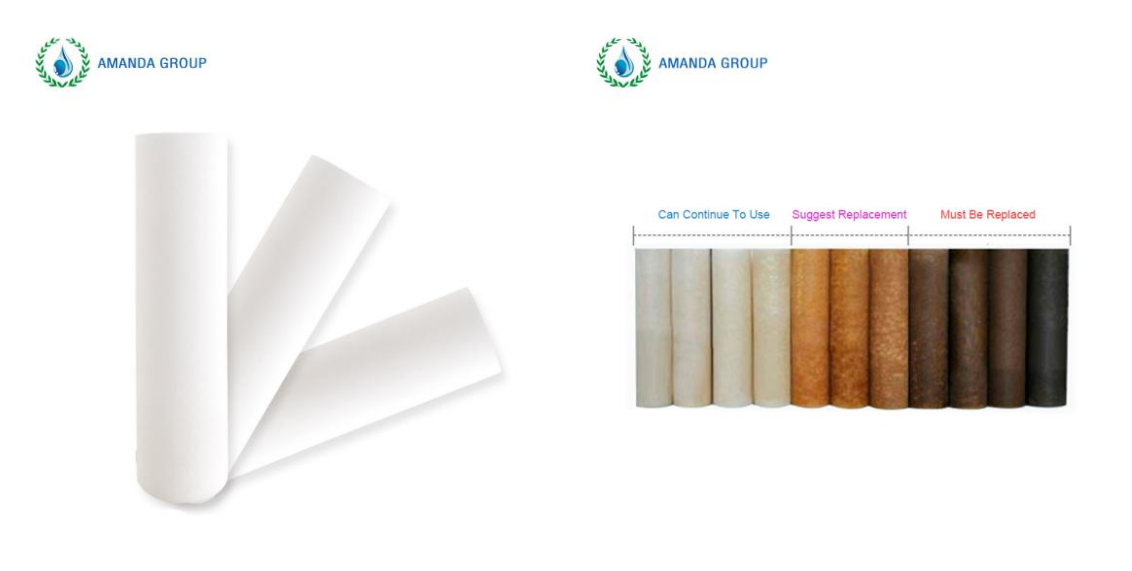

Melt-blown/spun-bonded polypropylene: The most mainstream type, made by heating, melting, spinning, and winding polypropylene particles into a tubular filter element, white cylindrical, with a "loose outside and tight inside" gradient density structure, uniform filtration accuracy, strong dirt-holding capacity, a common configuration in household "Big Blue" filter housings, suitable for filtration needs of most households.
Pleated polypropylene filter: Made by folding polypropylene non-woven fabric, with an accordion-like pleated structure, larger filtration area, higher dirt-holding capacity, and low pressure loss, suitable for whole-house filtration systems with high flow requirements.
Since the effluent from water softeners may be used for drinking, cooking and other scenarios, the United States has strict requirements for the safety of PP filters:
FDA compliance: Raw materials must meet FDA 21 CFR 177.1520 standard to ensure food-contact safety and no precipitation of harmful substances;
No adhesive: High-quality PP filters use hot-melt process to fix fibers, no chemical glue is used in the whole process, avoiding secondary pollution from the source, and meeting the health and safety evaluation indicators of household drinking water treatment devices.
In North American water treatment installation standards, there are clear specifications for PP filter installation, which need to be combined with the overall design of the whole-house water purification system, taking into account filtration effect and equipment protection:
Standard installation sequence: It is usually recommended to install the PP filter (pre-filter) before the water softener to first filter out large particulate impurities such as sediment and rust, prevent impurities from polluting the ion exchange resin, causing resin poisoning and hardening, and extend the service life of the water softener, which is a conventional operation in the North American water treatment industry;
Special installation scenario (rear installation): As mentioned above, when it is necessary to intercept resin debris and salt residues, or as a whole-house final fine filter, install the PP filter after the water softener, at a position after the water softener's water outlet main pipeline and before whole-house water distribution;

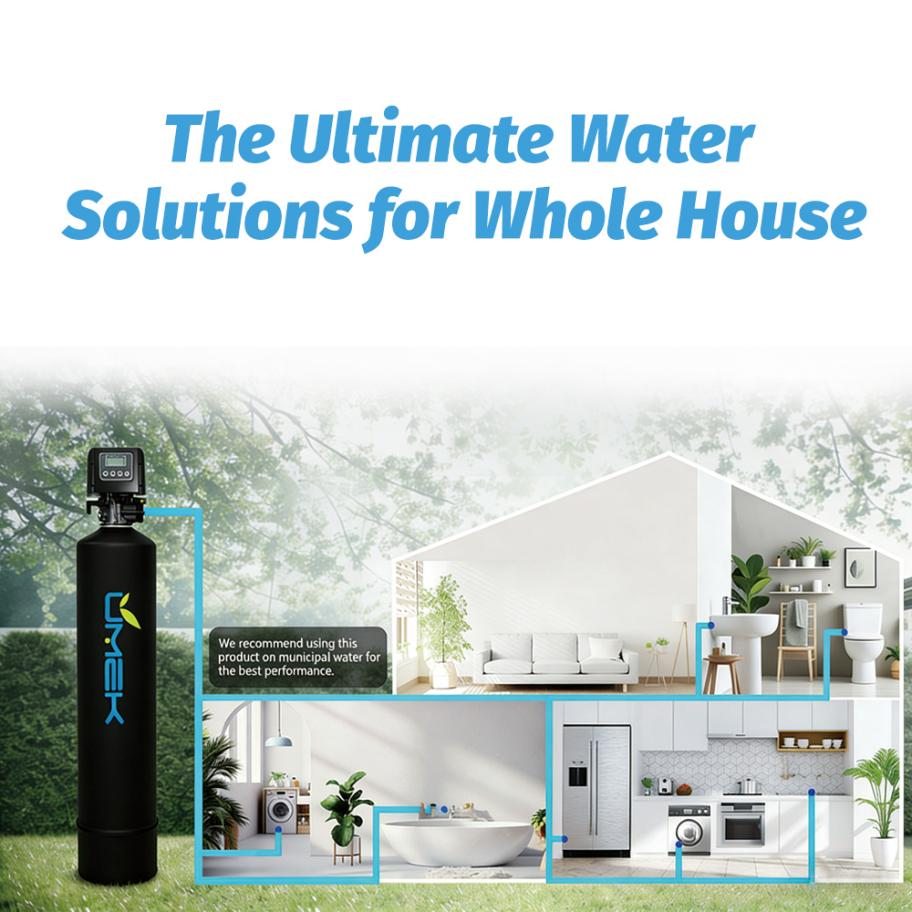

Complete American water pipeline design: Inlet water → Large-flow pre-filter → Water softener → Post-installed PP filter → Post-installed activated carbon filter → Whole-house water use. The post-installed PP filter is used in series with the post-installed activated carbon filter to further improve the taste of softened water, remove slight saltiness, and achieve an all-round water treatment of "softening + fine filtration + taste optimization".
The specifications of PP filters after US water softeners have formed industry standards, suitable for household whole-house filtration needs:
Filtration accuracy: 5-micron melt-blown PP filter is the most common, which can effectively intercept tiny particulate matter such as resin debris, salt residues, and rust, balancing filtration effect and water flow;

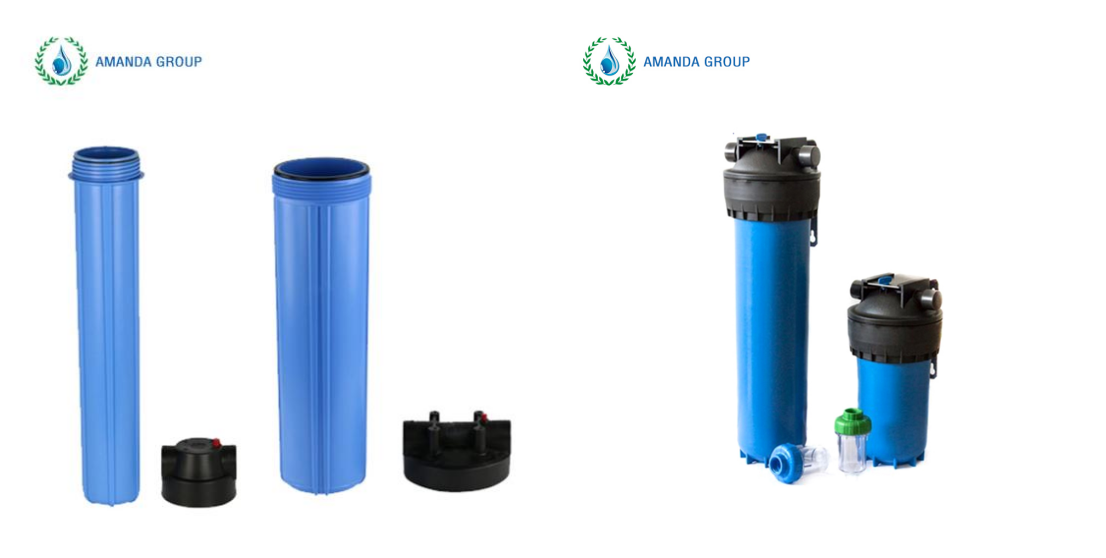

Filter housing specifications: Mainly 10" or 20" Big Blue, 20-inch specification has stronger dirt-holding capacity and longer replacement cycle, suitable for households with large water consumption;
Matching requirements: In most scenarios, the rear PP filter is used in series with the post-installed activated carbon filter to form a complete final fine filtration system and improve effluent quality.
The cost of adding a PP filter after a US water softener mainly depends on the installation method (DIY or professional installation), which is an additional expense for "point-to-point protection" and is usually not included in the basic water softener quotation. The specific cost breakdown is as follows:
表格
Item | DIY Cost | Professional Installation (Including Labor) | Remarks |
|---|---|---|---|
Filter housing/shell | $30–$80 | $50–$120 | 10" or 20" Big Blue specification, including bracket |
PP filter | $5–$20 | $10–$30 | 5-micron melt-blown PP cotton, single price |
Pipe fittings and accessories | $15–$20 | $30–$50 | Connectors, short pipes, Teflon tape, etc. |
Labor cost | — | $100–$250 | Usually billed by 1–2 hours |
Total | $50–$120 | $200–$450 | More expensive in big cities or complex pipelines |
Labor rate difference: The hourly wage of US plumbers is about $60–$150. In areas with high living costs such as California and New York, or when booking well-known water treatment companies such as Culligan, labor costs will significantly increase the total price;
Installation difficulty: If the space at the water softener outlet is narrow, additional pipeline cutting and elbow addition will increase material costs and working hours;
Filter housing specification: The shell and filter price of 20-inch Big Blue is higher than that of 10-inch, but it has stronger dirt-holding capacity and can extend the replacement cycle, which is more cost-effective in the long run.

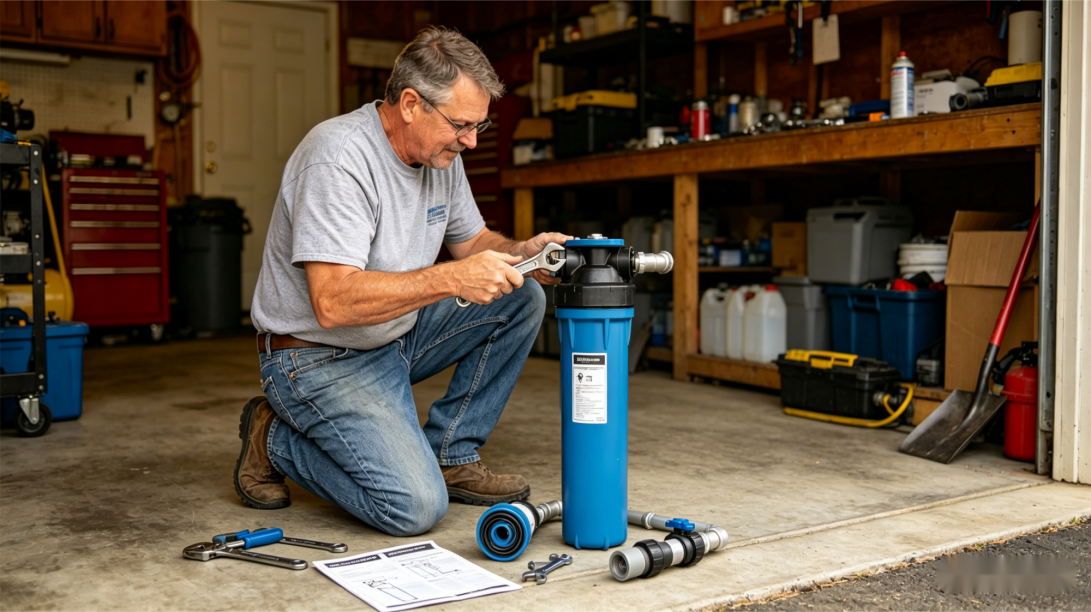

The filter replacement cost is about $5–$20 per piece, and the replacement cycle is usually 6–12 months, depending on household water consumption, resin wear, and raw water quality. DIY replacement is moderately difficult. If the water softener pipeline at home is connected by PEX or hose, you can operate it yourself. The cost of purchasing tools such as pipe cutters and wrenches is about $30–$50, which can save labor costs.
Recommended installation scenarios: It is strongly recommended to install when the water softener is connected to precision water treatment equipment such as RO reverse osmosis direct drinking machines, high-end coffee machines, ice makers, or high-end household appliances. A small investment can avoid expensive components such as RO membranes being blocked by resin debris and reduce later replacement costs;
Unnecessary scenarios: If the water softener is only connected to ordinary household appliances with low requirements for water particulate matter such as ordinary washing machines and toilets, there is usually no need for additional installation. Because softened water has removed hard scale, resin debris has minimal impact on ordinary household appliances.
In the US water treatment industry, installing a PP filter after a water softener is a protective scheme formed based on the operating characteristics of water softeners and household water demand. Its core value is to intercept particulate matter such as resin debris, salt residues, and pipeline impurities, protect downstream water-using equipment and household appliances, and improve whole-house water quality. As a depth physical filtration element, PP filter, with the chemical inertness and stable filtration performance of pure PP material, meets FDA food-grade safety standards and has become an indispensable part of the North American residential whole-house water purification system.
With the development of the US water treatment market towards high-end and refined direction and the continuous increase in the penetration rate of whole-house water purification systems, the application of PP filters after water softeners will be more extensive. Understanding its core functions, material technology, installation specifications, and costs can not only help users reasonably configure water treatment systems, but also help industry practitioners accurately grasp the demand characteristics of the North American water treatment market and promote the optimization and upgrading of water treatment technology.
